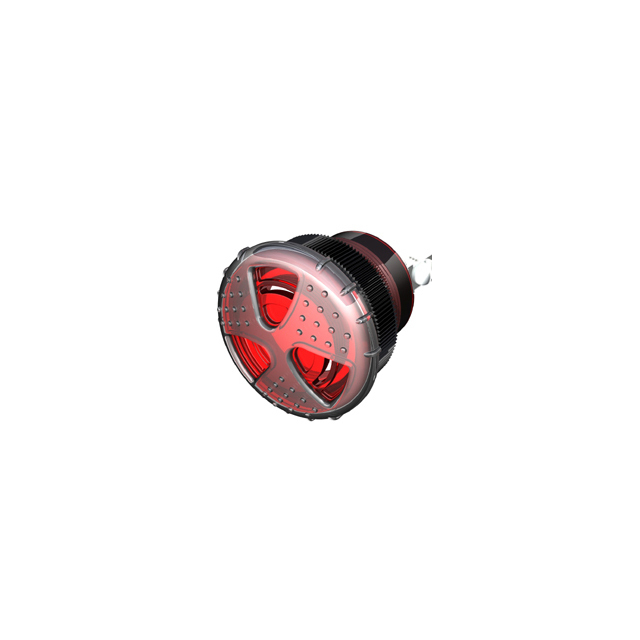

TLHT-V88R Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER 35.81MM PNL MNT
| Part | Port Location | Frequency | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Sound Pressure Level (SPL) | Mounting Type | Approval Agency | Voltage Range [Max] | Voltage Range [Min] | Input Type | Driver Circuitry | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Mode | Termination | Termination | Termination | Ingress Protection | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Top | 2.9 kHz | 1.25 " | 31.75 mm | 103 dB | Panel Mount | UL UR | 30 V | 9 V | DC | Indicator Internally Driven | 50 mA | 110 mA | 1.41 in | 35.81 mm | Staccato Tone | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | IP68 - Dust Tight Waterproof | |
 Floyd Bell Inc | Top | 2.9 kHz | 1.25 " | 31.75 mm | 103 dB | Panel Mount | UL UR | 30 V | 9 V | DC | Indicator Internally Driven | 50 mA | 110 mA | 1.409 in | Staccato Tone | 0.25 " | Quick Connect Tab | 6.35 mm | IP68 - Dust Tight Waterproof | 35.8 mm |
