EN3P2M Series

Catalog

CIRCULAR CONNECTOR, EN3 SERIES, PCB MOUNT RECEPTACLE, 2 CONTACTS, PCB PIN, THERMOPLASTIC BODY

Part	Insert Material	Material Flammability Rating	Applications	Color	Contact Material	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Ingress Protection	Mounting Type	Shielding	Contact Finish - Mating	Fastening Type	Mounting Feature	Voltage Rating	Orientation	Connector Type	Termination	Current Rating (Amps)
SWITCHCRAFT/CONXALL EN3P2MRAPCBN	Elastomer	UL94 V-0	General Purpose Instrumentation Marine Medical	Black	Copper Alloy	Plastic	-40 C	65 °C	2	IP66 IP68	Panel Mount Right Angle Through Hole	Unshielded	Gold	Bayonet Lock	Bulkhead - Front Side Nut	250 VAC	Keyed	Receptacle Male Pins	Circuit Board Solder	5 A
SWITCHCRAFT/CONXALL EN3P2MX	Elastomer	UL94 V-0	General Purpose Instrumentation Marine Medical	Black	Copper Alloy	Plastic	-40 C	65 °C	2	IP66 IP68	Panel Mount	Unshielded	Gold	Bayonet Lock	Bulkhead - Front Side Nut	250 VAC	Keyed	Receptacle Male Pins		7.5 A

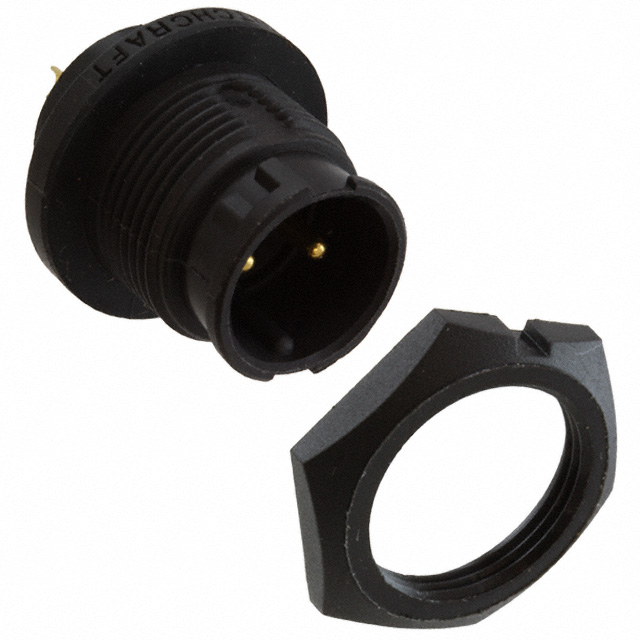

SWITCHCRAFT/CONXALL EN3P2M16X	Elastomer	UL94 V-0	General Purpose Instrumentation Marine Medical	Black	Copper Alloy	Plastic	-40 C	65 °C	2	IP66 IP68	Panel Mount	Unshielded	Gold	Bayonet Lock	Bulkhead - Front Side Nut	250 VAC	Keyed	Receptacle Male Pins		13 A
SWITCHCRAFT/CONXALL EN3P2M16CKX	Elastomer	UL94 V-0	General Purpose Instrumentation Marine Medical	Black	Copper Alloy	Plastic	-40 C	65 °C	2	IP66 IP68	Panel Mount	Unshielded	Gold	Bayonet Lock	Bulkhead - Front Side Nut	250 VAC	Keyed	Receptacle Male Pins	Crimp	13 A
SWITCHCRAFT/CONXALL EN3P2MRAPCBW	Elastomer	UL94 V-0	General Purpose Instrumentation Marine Medical	Black	Copper Alloy	Plastic	-40 C	65 °C	2	IP66 IP68	Panel Mount Right Angle Through Hole	Unshielded	Gold	Bayonet Lock	Bulkhead - Front Side Nut	250 VAC	Keyed	Receptacle Male Pins	Circuit Board Solder	5 A

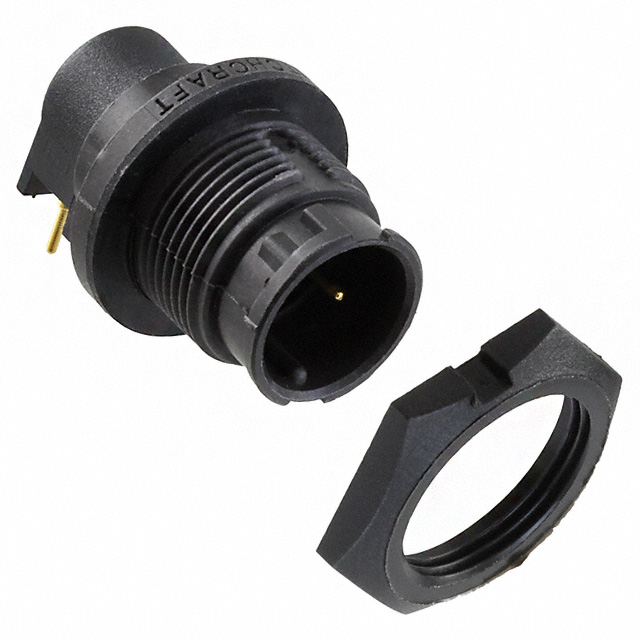

SWITCHCRAFT/CONXALL EN3P2MRAPCX	Elastomer	UL94 V-0	General Purpose Instrumentation Marine Medical	Black	Copper Alloy	Plastic	-40 C	65 °C	2	IP66 IP68	Panel Mount Right Angle Through Hole	Unshielded	Gold	Bayonet Lock	Bulkhead - Front Side Nut	250 VAC	Keyed	Receptacle Male Pins	Solder	7.5 A
SWITCHCRAFT/CONXALL EN3P2MPX	Elastomer	UL94 V-0	General Purpose Instrumentation Marine Medical	Black	Copper Alloy	Plastic	-40 C	65 °C	2	IP66 IP68	Panel Mount Through Hole	Unshielded	Gold	Bayonet Lock	Bulkhead - Front Side Nut	250 VAC	Keyed	Receptacle Male Pins	Solder	7.5 A
SWITCHCRAFT/CONXALL EN3P2M16PX	Elastomer	UL94 V-0	General Purpose Instrumentation Marine Medical	Black	Copper Alloy	Plastic	-40 C	65 °C	2	IP66 IP68	Panel Mount Through Hole	Unshielded	Gold	Bayonet Lock	Bulkhead - Front Side Nut	250 VAC	Keyed	Receptacle Male Pins	Solder	13 A
SWITCHCRAFT/CONXALL EN3P2MCX	Elastomer	UL94 V-0	General Purpose Instrumentation Marine Medical	Black	Copper Alloy	Plastic	-40 C	65 °C	2	IP66 IP68	Panel Mount	Unshielded	Gold	Bayonet Lock	Bulkhead - Front Side Nut	250 VAC	Keyed	Receptacle Male Pins	Crimp	7.5 A
