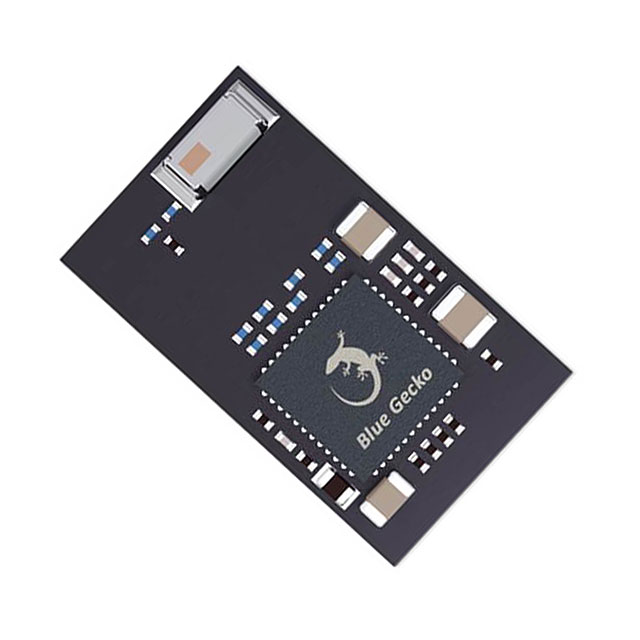

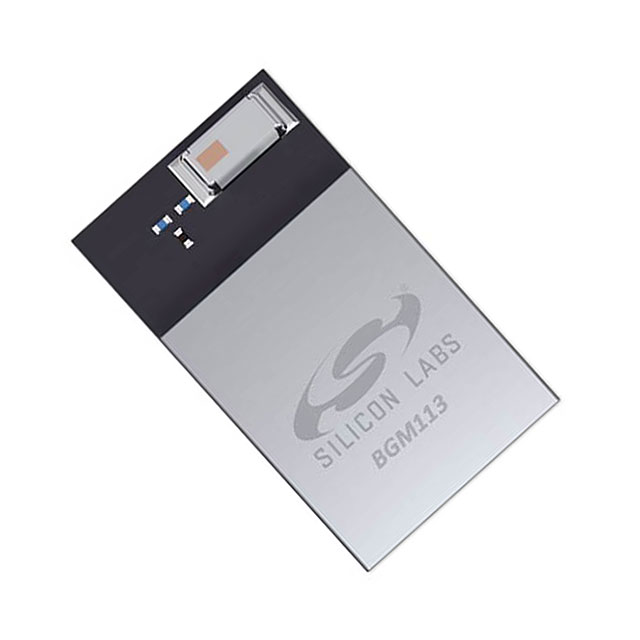

BGM113 Series
Manufacturer: SILICON LABS
Beta
⌘K
RF TXRX MOD BLUETOOTH CHIP SMD
| Part | Protocol | RF Family/Standard | Antenna Type | Operating Temperature [Max] | Operating Temperature [Min] | Serial Interfaces | Memory Size | Data Rate | Mounting Type | Frequency | Sensitivity | Current - Transmitting | Power - Output | Utilized IC / Part | Package / Case | Voltage - Supply | Current - Receiving | Modulation | Current - Transmitting [Max] | Current - Transmitting [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Frequency [Min] | Frequency [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SILICON LABS | Bluetooth v4.1 | Bluetooth | Chip Integrated | 85 °C | -40 C | SPI UART | Flash RAM | 1 Mbps | Surface Mount | 2.4 GHz | -93 dBm | 8.8 mA | 3 dBm | EFR32BG | 36-SMD Module | 3.8 V | 8.7 mA | |||||||
SILICON LABS | Bluetooth v4.2 | Bluetooth | Chip Integrated | 85 C | -40 ¯C | I2C I2S SPI UART USART | Flash RAM | 1 Mbps | Surface Mount | -92 dBm | 3 dBm | EFR32BG | 36-SMD Module | 9 mA | GFSK | 24.6 mA | 8.2 mA | 1.85 V | 3.8 V | 2.4 GHz | 2.484 GHz | |||
 SILICON LABS | Bluetooth v4.1 | Bluetooth | Chip Integrated | 85 °C | -40 C | SPI UART | Flash RAM | 1 Mbps | Surface Mount | 2.4 GHz | -93 dBm | 8.8 mA | 3 dBm | EFR32BG | 36-SMD Module | 3.8 V | 8.7 mA |
