MNGI18 Series

Catalog

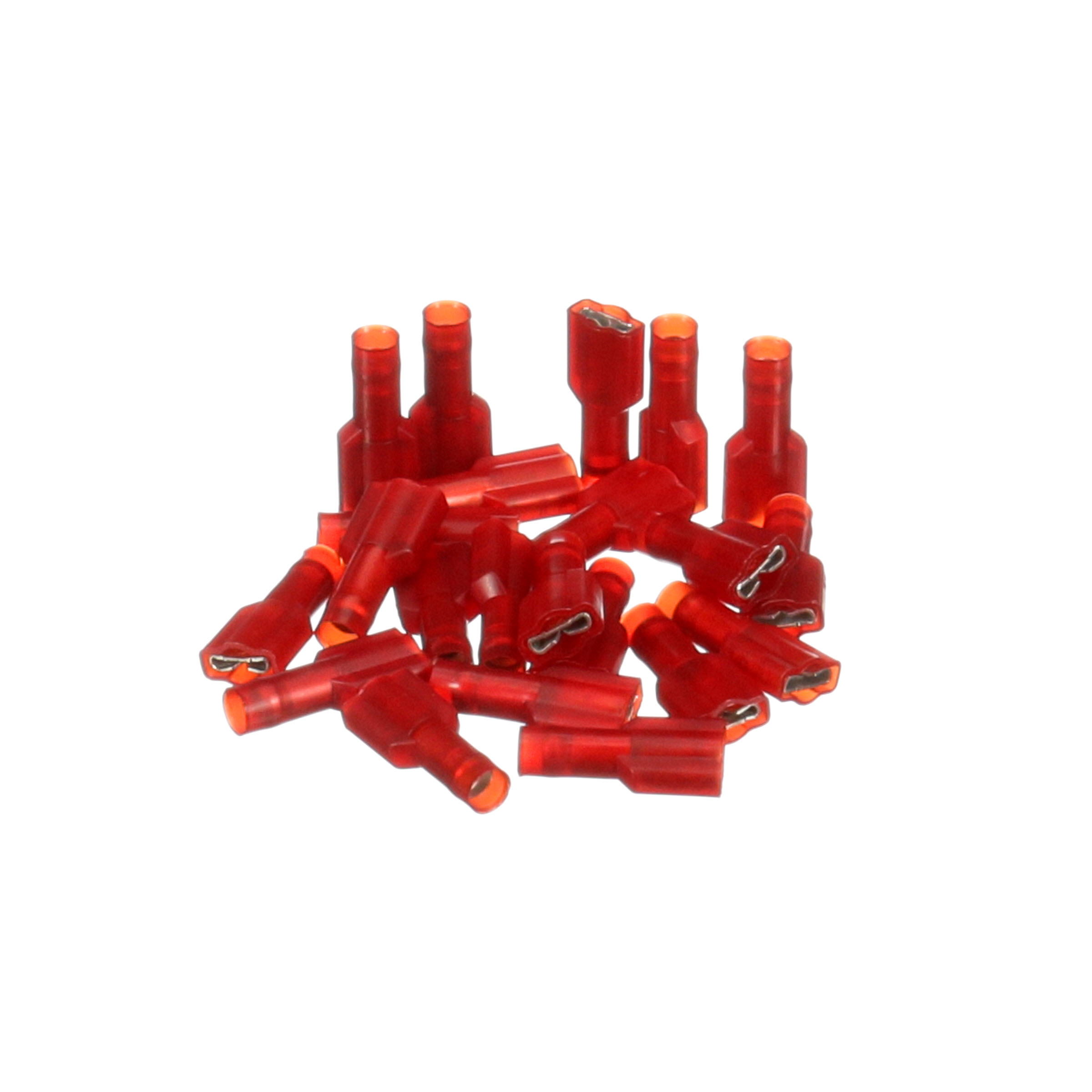

CONN QC RCPT 18-22AWG 0.25 100PC

Part	Insulation Diameter	Insulation Diameter	Terminal Type	Length - Overall [x]	Length - Overall [x]	Color	Contact Material	Tab Thickness	Tab Thickness	Termination	Insulation	Gender	Wire Gauge [Max]	Wire Gauge [Min]	Tab Width [x]	Tab Width [x]	Contact Finish	Mounting Type
3M Electronic Specialty MNGI18-250DFIX-BOTTLE	0.145 in	3.68 mm	Standard	0.83 in	21.08 mm	Red	Brass	0.81 mm	0.032 in	Crimp	Fully Insulated	Female	22 AWG	17.5 AWG	6.35 mm	0.25 in	Tin	Free Hanging (In-Line)
3M Electronic Specialty MNGI18-250DFIK	0.145 in	3.68 mm	Standard	0.83 in	21.08 mm	Red	Brass	0.81 mm	0.032 in	Crimp	Fully Insulated	Female	22 AWG	17.5 AWG	6.35 mm	0.25 in	Tin	Free Hanging (In-Line)
