100066 Series
Manufacturer: Molex - Temp Flex
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

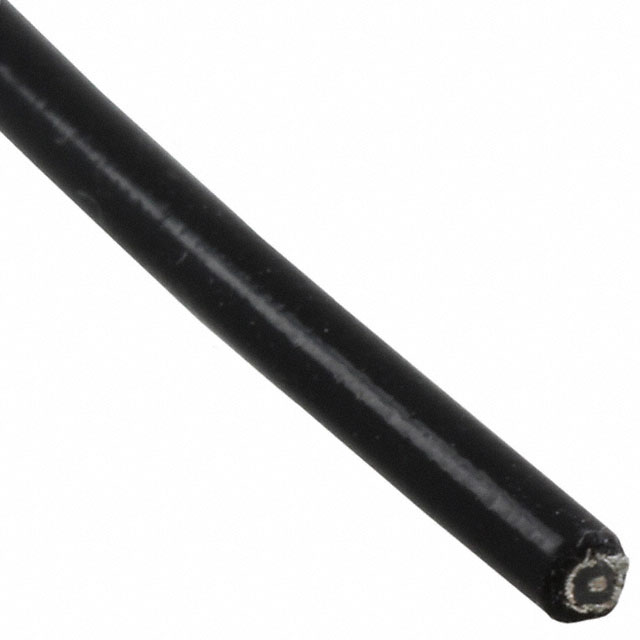

CABLE COAXIAL 30AWG 200'
| Part | Conductor Strand Gauge | Conductor Strand Count | Length | Wire Gauge | Shield Type | Length | Jacket Color | Impedance | Jacket (Insulation) Diameter | Jacket (Insulation) Material | Cable Type | Dielectric Diameter | Shield Coverage | Shield Material | Conductor Material | Velocity of Propagation (VoP) | Dielectric Material | Spool Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex - Temp Flex | 38 AWG | 7 Strands | 5 ft 10 ft 12 in 25 ft 50 ft 100 ft 200 ft | 30 AWG | Braid | Enter Number of Feet in Order Quantity | Black | 50 Ohm | 0.071 in | Fluorinated Ethylene-Propylene (FEP) | Coaxial | 0.034 in | 95 % | Copper Silver Coated | Copper Silver Coated | 70 % | Fluorinated Ethylene Propylene (FEP) | |
 Molex - Temp Flex | 34 AWG | 7 Strands | 5 ft 10 ft 12 in 25 ft 50 ft 100 ft 200 ft | 26 AWG | Braid | Enter Number of Feet in Order Quantity | Black | 50 Ohm | 0.1 in | Fluorinated Ethylene-Propylene (FEP) | Coaxial | 0.054 in | 95 % | Copper Silver Coated | Copper Silver Coated | 70 % | Fluorinated Ethylene Propylene (FEP) | 5000 ft |
