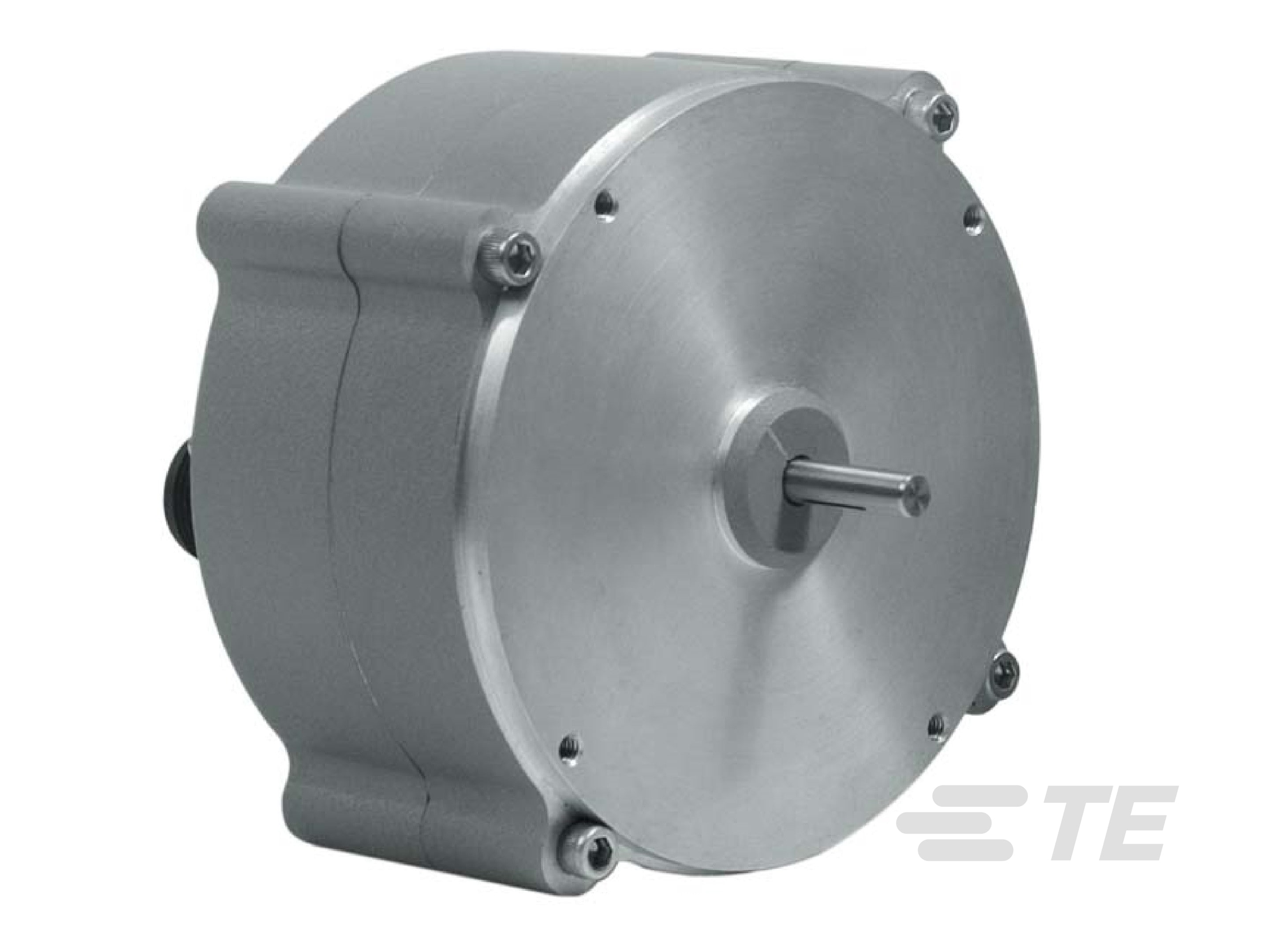

MEAS RT9420 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RT9420-0R25-241-1660: CTO-11500000-17

Part	Output Signal	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Mounting Type	For Measuring	Output [Max]	Output [Min]	Actuator Type	Package / Case	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]
TE Connectivity AMP Connectors RT9420-0R25-241-1660	Clockwise Increase	90 °C	-40 C	Connector	Panel Mount	Rotary Position	4 mA	20 mA	Round Shaft	Module Round Shaft	Resistive	8 V	34 VDC
TE Connectivity AMP Connectors RT9420-0R50-111-1150	Clockwise Increase	93 °C	-40 C	Connector		Rotary Position	4 mA	20 mA	Round Shaft	Module	Resistive	8 V	34 VDC
TE Connectivity AMP Connectors RT9420-0010-221-1110	Clockwise Increase	93 °C	-40 C	Connector		Rotary Position	4 mA	20 mA	Round Shaft	Module	Resistive	8 V	34 VDC	18000 °	0 °
TE Connectivity AMP Connectors RT9420-0005-221-1130	Clockwise Increase	90 °C	-40 C	Connector	Panel Mount	Rotary Position	20 mA	4 mA	Round Shaft	Module Round Shaft	Resistive	8 V	34 VDC	18000 °	90 °
TE Connectivity AMP Connectors RT9420-0001-141-1510	Clockwise Increase	93 °C	-40 C	Connector		Rotary Position	4 mA	20 mA	Round Shaft	Module	Resistive	8 V	34 VDC
TE Connectivity AMP Connectors RT9420-0R25-241-1570	Clockwise Increase	90 °C	-40 C	Connector	Panel Mount	Rotary Position	20 mA	4 mA	Round Shaft	Module Round Shaft	Resistive	8 V	34 VDC
TE Connectivity AMP Connectors RT9420-0R25-241-1670	Clockwise Increase	90 °C	-40 C	Connector	Panel Mount	Rotary Position	4 mA	20 mA	Round Shaft	Module Round Shaft	Resistive	8 V	34 VDC
TE Connectivity AMP Connectors RT9420-0001-121-1130	Clockwise Increase	93 °C	-40 C	Connector		Rotary Position	4 mA	20 mA	Round Shaft	Module	Resistive	8 V	34 VDC	18000 °	0 °
TE Connectivity AMP Connectors RT9420-0R25-241-1560	Clockwise Increase	93 °C	-40 C	Connector	Panel Mount	Rotary Position	20 mA	4 mA	Round Shaft	Module Round Shaft	Resistive	8 V	34 VDC
TE Connectivity AMP Connectors RT9420-0R25-221-1530	Clockwise Increase	90 °C	-40 C	Connector	Panel Mount	Rotary Position	20 mA	4 mA	Round Shaft	Module Round Shaft	Resistive	8 V	34 VDC
