ASMPL Series
Manufacturer: Abracon LLC
Beta
⌘K
INDUCTOR POWER MULTI-LAYER 0.33UH 30% 100KHZ CERAMIC 1.2A 0.125OHM DCR 0805 T/R
| Part | Frequency - Self Resonant | Current - Saturation (Isat) | Tolerance | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Material - Core | Inductance Frequency - Test | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Supplier Device Package | Inductance | Shielding | DC Resistance (DCR) [Max] | Package / Case | Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

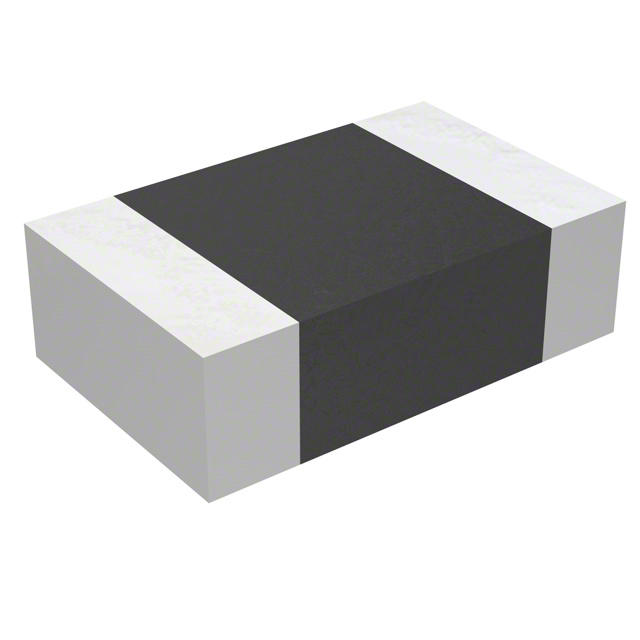

 Abracon LLC | 90 MHz | 1.35 A | 30 % | Surface Mount | 125 °C | -40 C | Ceramic | 100 kHz | 1.2 A | 0.6 mm | 0.024 in | 0805 (2012 Metric) | 330 nH | Unshielded | 125 mOhm | 0805 | Multilayer | 2 mm | 1.25 mm | 0.049 " | 0.079 in | ||

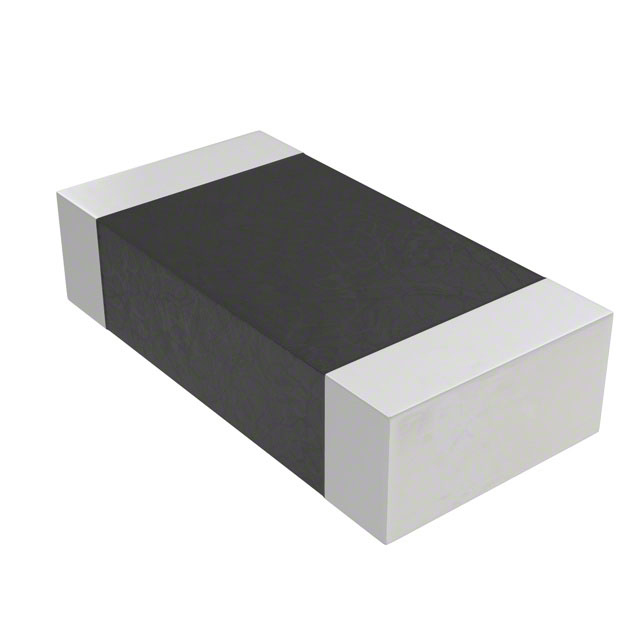

 Abracon LLC | 100 MHz | 800 mA | 30 % | Surface Mount | 125 °C | -40 C | Ceramic | 100 kHz | 900 mA | 0.55 mm | 0.022 in | 0603 (1608 Metric) | 0.68 µH | Unshielded | 275 mOhm | 0603 | Multilayer | 1.6 mm | 0.031 in | 0.063 " | 0.8 mm | 1608 Metric |
