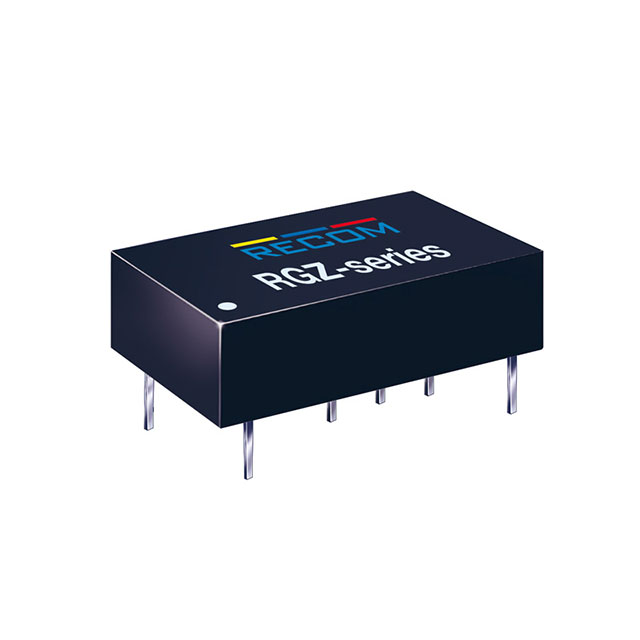

RGZ Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC 4KV UNREG 12VIN +/-5VOUT

...

Part	Applications	Voltage - Output 2	Voltage - Input (Max) [Max]	Features	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Number of Outputs	Mounting Type	Power (Watts)	Voltage - Isolation	Voltage - Input (Min) [Min]	Efficiency	Current - Output (Max)	Current - Output (Max)

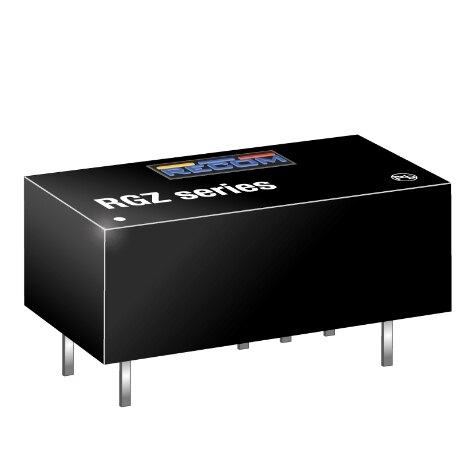

Recom Power RGZ-1205D/H	ITE (Commercial) Medical	-5 V	13.2 V	SCP	Isolated Module	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	5 V	85 °C	-40 C	14-DIP Module 6 Leads	2	Through Hole	2 W	4000 V	10.8 V
Recom Power RGZ-3.324D/H	ITE (Commercial) Medical	-24 V	3.6 V	SCP	Isolated Module	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	24 V	85 °C	-40 C	14-DIP Module 6 Leads	2	Through Hole	2 W	4000 V	3 V	84 %	42 mA

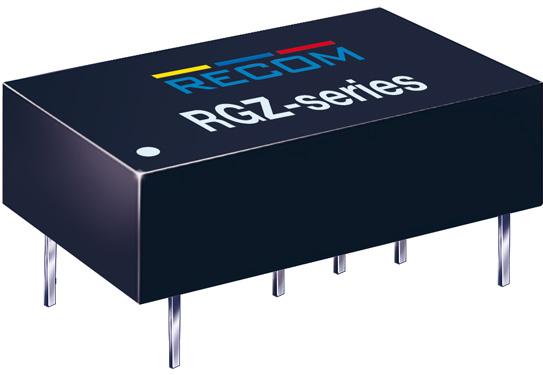

Recom Power RGZ-3.312D	ITE (Commercial) Medical	-12 V	3.6 V	SCP	Isolated Module	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	12 V	85 °C	-40 C	14-DIP Module 6 Leads	2	Through Hole	2 W	3000 V	3 V		84 mA	84 mA
Recom Power RGZ-053.3D/P	ITE (Commercial) Medical	-3.3 V	5.5 V	SCP	Isolated Module	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	3.3 V	85 °C	-40 C	14-DIP Module 6 Leads	2	Through Hole	2 W	3000 V	4.5 V	75 %	303 mA
Recom Power RGZ-2412D/HP	ITE (Commercial) Medical	-12 V	26.4 V	SCP	Isolated Module	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	12 V	85 °C	-40 C	14-DIP Module 6 Leads	2	Through Hole	2 W	4000 V	21.6 V		84 mA	84 mA
Recom Power RGZ-0505D	ITE (Commercial) Medical	-5 V	5.5 V	SCP	Isolated Module	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	5 V	85 °C	-40 C	14-DIP Module 6 Leads	2	Through Hole	2 W	3000 V	4.5 V
Recom Power RGZ-1512D	ITE (Commercial) Medical	-12 V	16.5 V	SCP	Isolated Module	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	12 V	85 °C	-40 C	14-DIP Module 6 Leads	2	Through Hole	2 W	3000 V	13.5 V		84 mA	84 mA
Recom Power RGZ-093.3D	ITE (Commercial) Medical	-3.3 V	9.9 V	SCP	Isolated Module	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	3.3 V	85 °C	-40 C	14-DIP Module 6 Leads	2	Through Hole	2 W	3000 V	8.1 V	75 %	303 mA
Recom Power RGZ-3.33.3D	ITE (Commercial) Medical	-3.3 V	3.6 V	SCP	Isolated Module	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	3.3 V	85 °C	-40 C	14-DIP Module 6 Leads	2	Through Hole	2 W	3000 V	3 V	75 %	303 mA
Recom Power RGZ-2424D/H	ITE (Commercial) Medical	-24 V	26.4 V	SCP	Isolated Module	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	24 V	85 °C	-40 C	14-DIP Module 6 Leads	2	Through Hole	2 W	4000 V	21.6 V	84 %	42 mA
