HARTMAN K Series Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

K4001B5C2=CONTACTOR 400 A SPST 28 VDC

Part	Operate Time	Coil Current	Release Time	Mounting Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Must Operate Voltage	Features	Coil Voltage	Contact Rating (Current)	Must Release Voltage	Contact Form	Coil Resistance	Coil Power	Coil Voltage [Max]	Coil Voltage [Min]
TE Connectivity AMP Connectors K4001B5C2	35 ms	650 mA	20 ms	Chassis Mount	Bolt Down Connector	-55 C	85 °C	28 VDC	13 VDC	Auxiliary Contacts	28 VDC	400 A	9 VDC	SPST-NO (DM) (1 Form X)
TE Connectivity AMP Connectors K400B1F		550 mA		Chassis Mount	Wire Leads	-55 C	85 °C	28 VDC	18 VDC	Sealed - Fully	28 VDC	400 A	7 VDC	SPST-NO (DM) (1 Form X)
TE Connectivity AMP Connectors K500B4B01	45 ms	168.9 mA	25 ms	Chassis Mount	Connector	-55 C	85 °C	28 VDC	18 VDC		28 VDC	500 A	10 VDC	SPST-NC (DB) (1 Form Y)	165.8 Ohms	4.7 W
TE Connectivity AMP Connectors K4001A3C				Chassis Mount	Connector Stud	-55 C	85 °C	28 VDC	13 VDC	Auxiliary Contacts	28 VDC	400 A	9 VDC	SPST-NO (DM) (1 Form X)

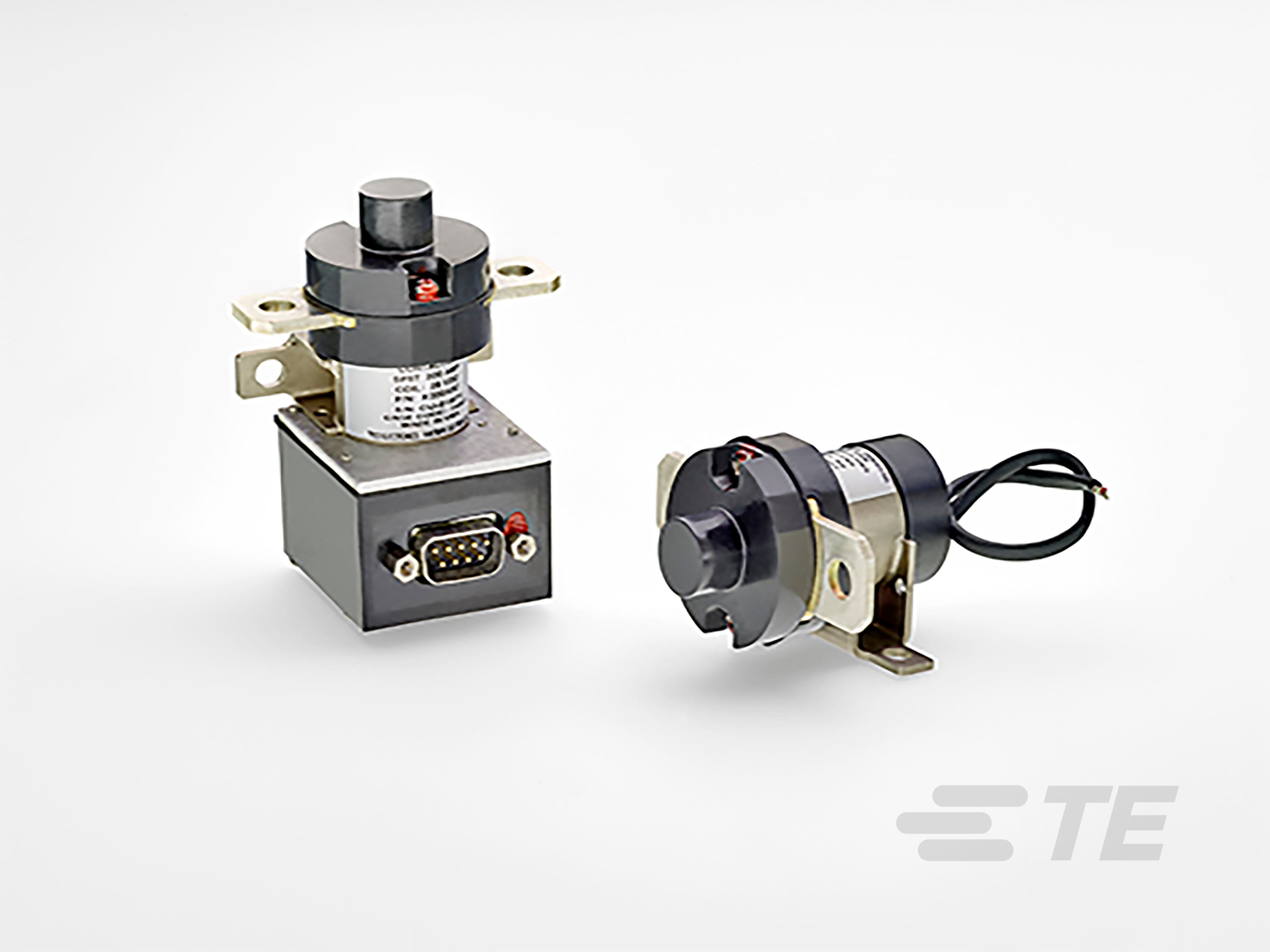

TE Connectivity AMP Connectors K200A1C				Chassis Mount	Wire Leads	-55 C	85 °C	28 VDC	18 VDC	Sealed - Fully	28 VDC	200 A	9 VDC	SPST-NO (DM) (1 Form X)
TE Connectivity AMP Connectors K500A7C01				Chassis Mount	Bolt Down Connector	-55 C	85 °C	28 VDC	18 VDC	Auxiliary Contacts	28 VDC	500 A	7 VDC	SPST-NO (DM) (1 Form X)
TE Connectivity AMP Connectors K300B2C				Chassis Mount	Connector	-55 C	71 °C	28 VDC	18 VDC		28 VDC	200 A	7 VDC	SPST-NC (DB) (1 Form Y)

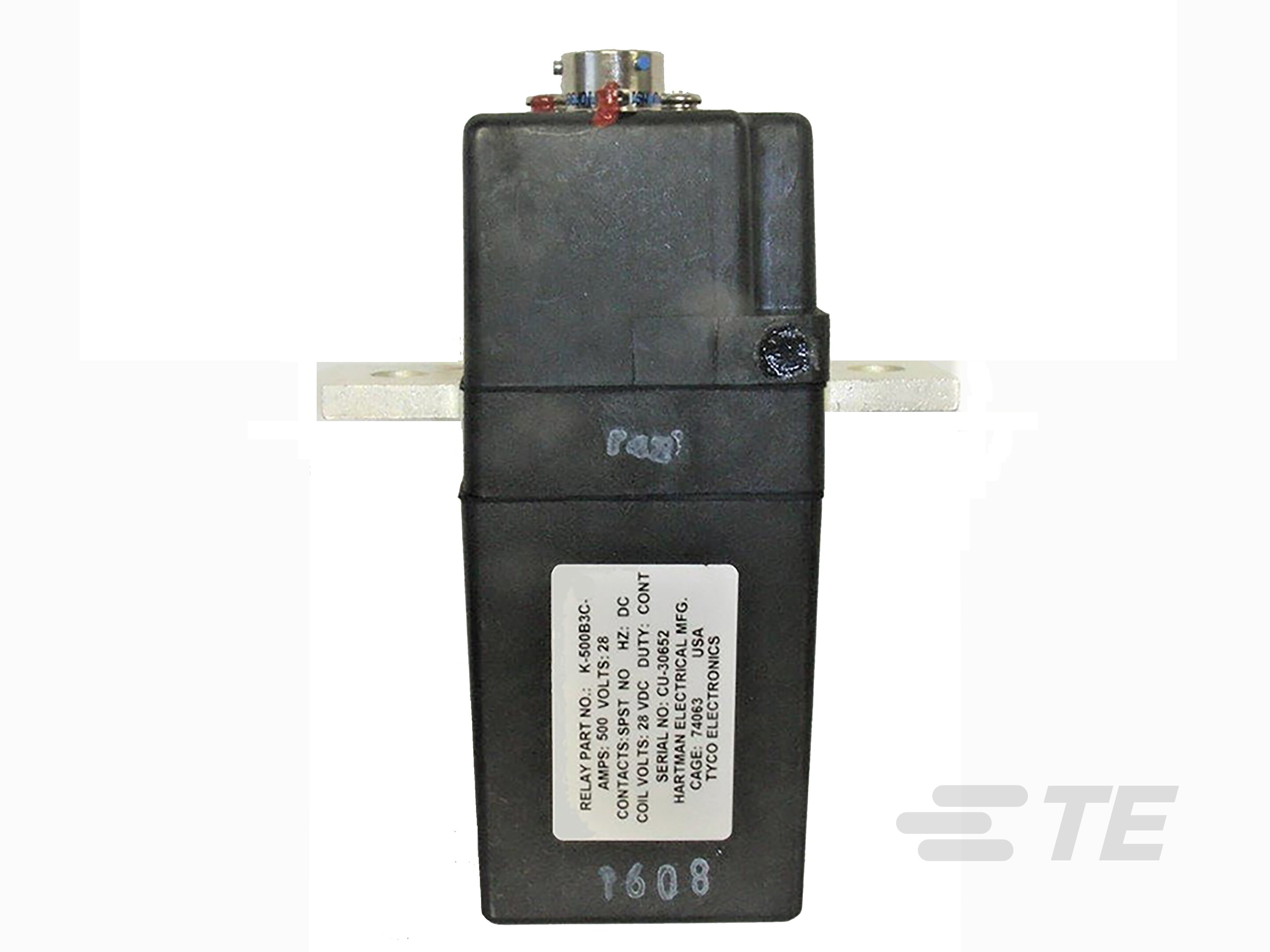

TE Connectivity AMP Connectors 7-2252003-3
TE Connectivity AMP Connectors 8-1616977-1				Chassis Mount	Connector	-55 C	85 °C	28 VDC	18 VDC			200 A	1 VDC	SPST-NC (DB) (1 Form Y)			32 VDC	28 VDC
TE Connectivity AMP Connectors KD400B2C2
