ANT-433 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RF ANT 433MHZ WHIP STR SCREW-MNT

Part	Gain	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Antenna Type	Termination	Applications	Frequency (Center/Band)	Mounting Type	VSWR	RF Family/Standard	Frequency Range [Min]	Frequency Range [Max]	Height (Max) [z]	Height (Max) [z]	Number of Bands	Features	Height (Max) [z]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Height (Max) [z]	Power - Max [Max]	Features	Return Loss

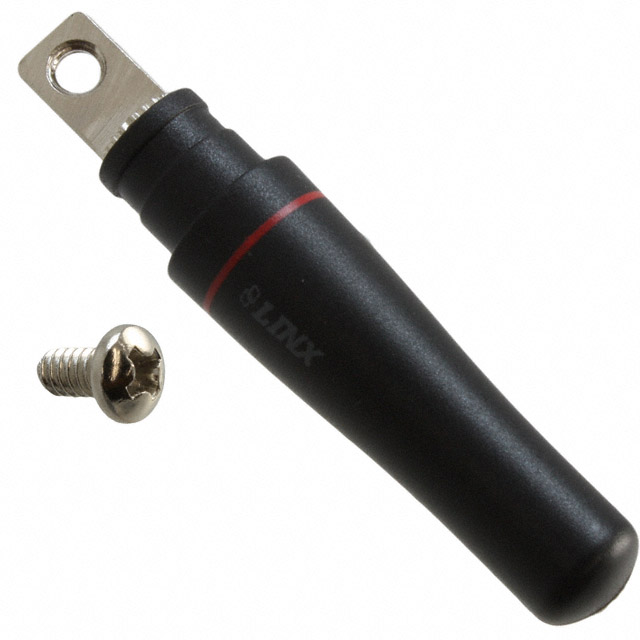

TE Connectivity AMP Connectors ANT-433-PW-LP	-1.9 dBi	1 GHz	UHF	300 MHz	Whip Straight	Screw-Mount	Alarms ISM Remote Control Security Systems	433 MHz	Panel Mount	1.9	General ISM	427 MHz	439 MHz	50.5 mm	1.988 in	1

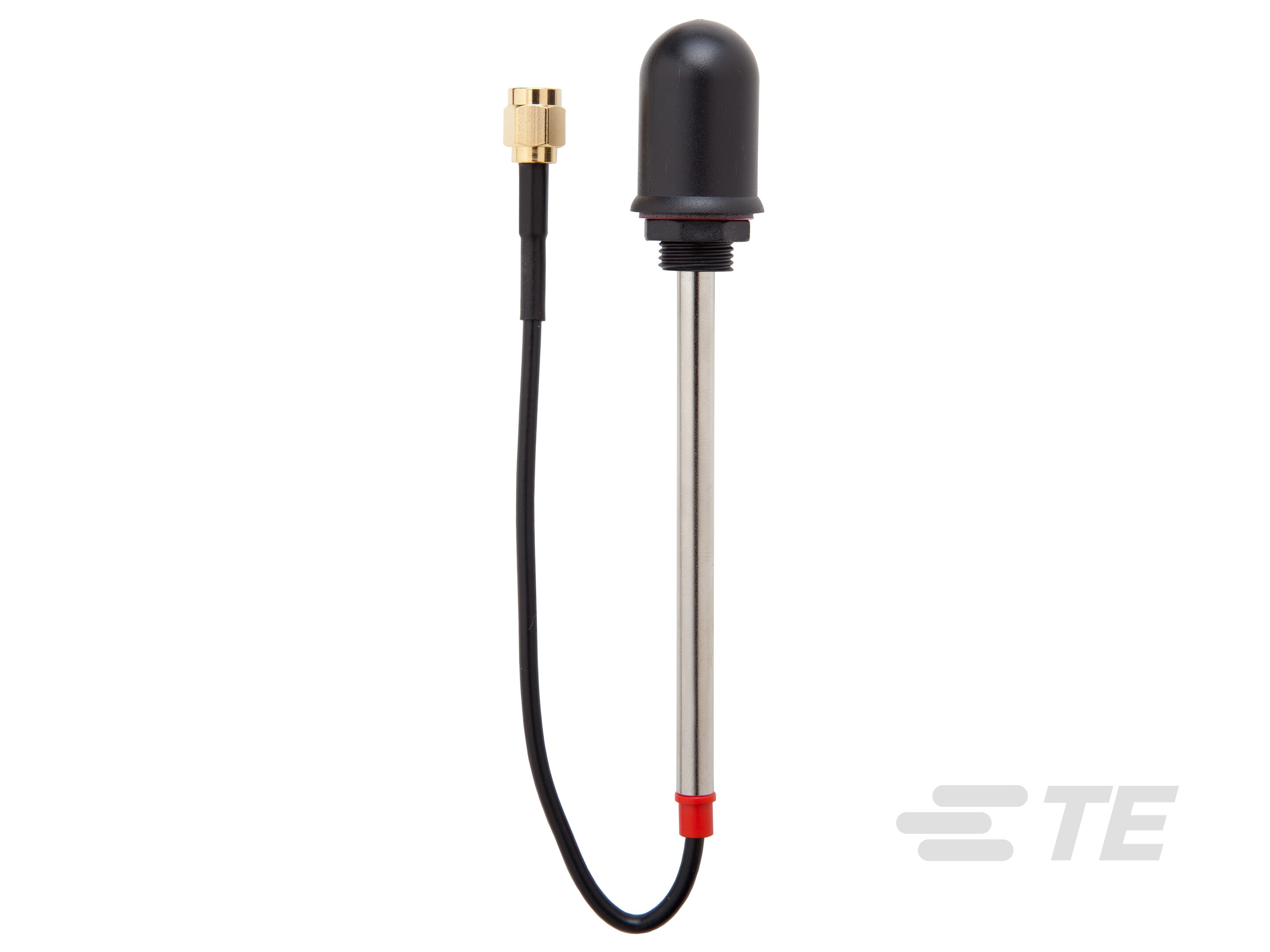

TE Connectivity AMP Connectors ANT-433-WRT-SMA	-1 dBi	1 GHz	UHF	300 MHz	Dome		Alarms ISM Remote Control Security Systems	400 MHz 410 MHz	Panel Mount	1.9	General ISM	425 MHz	441 MHz	27 mm	1.063 in	1	Cable - 216mm

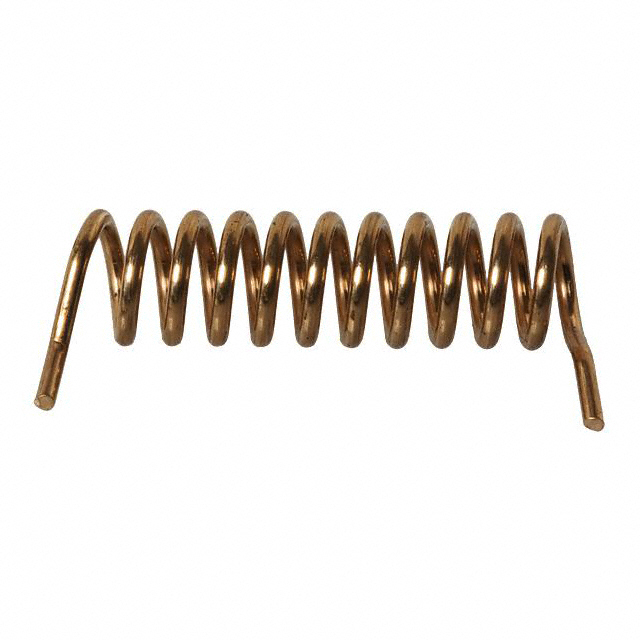

TE Connectivity AMP Connectors ANT-433-HETH	1.9 dBi	1 GHz	UHF	300 MHz	Helical	Solder	Alarms ISM Remote Control Security Systems	433 MHz	Through Hole	2	General ISM	418 MHz	458 MHz	0.35 in		1		8.89 mm

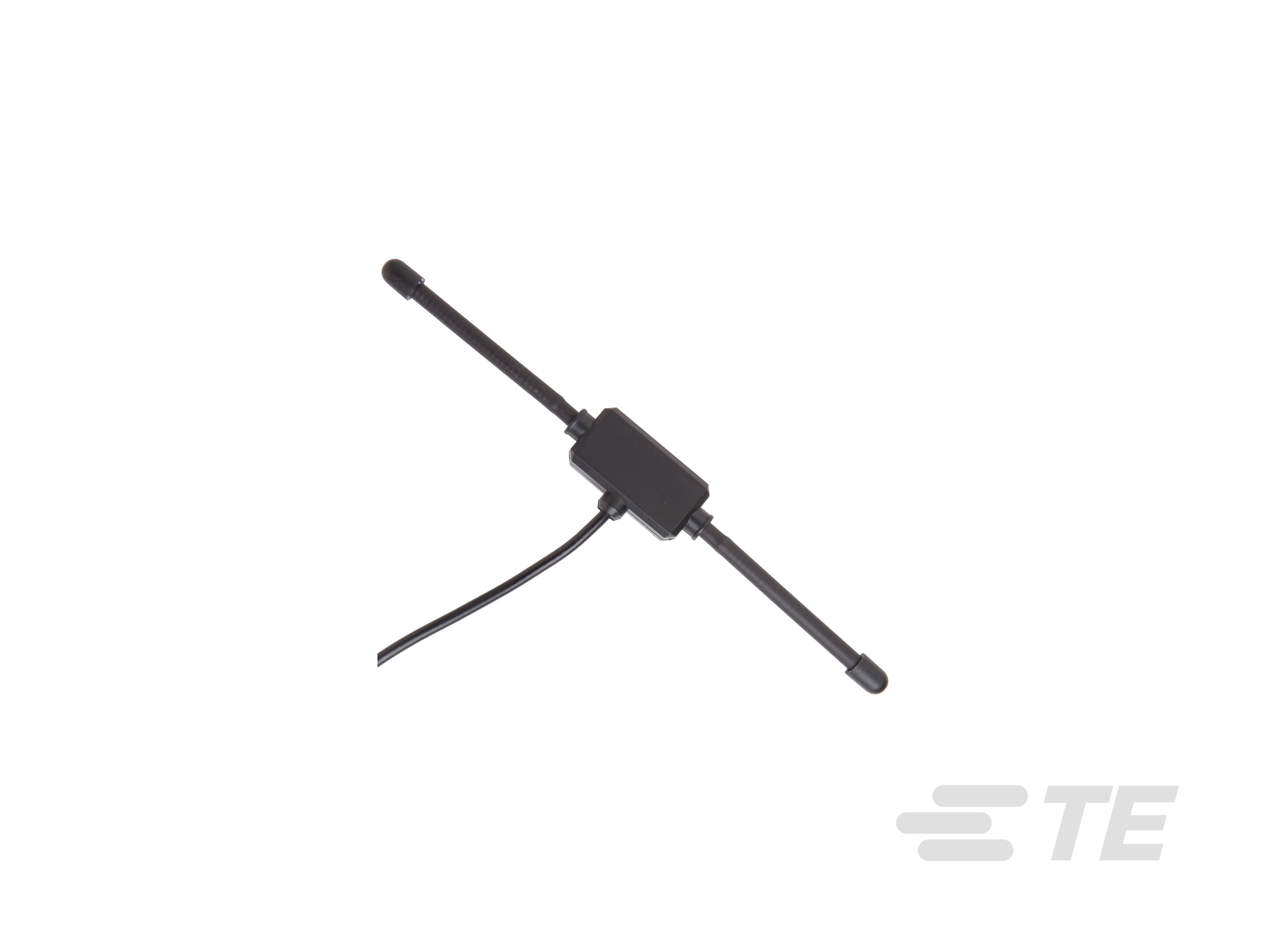

TE Connectivity AMP Connectors ANT-433-MHW-SMA-S	1.2 dBi	1 GHz	UHF	300 MHz	Whip Center-Fed Double		Alarms ISM Remote Control Security Systems	433 MHz	Adhesive	1.9	General ISM	413 MHz	453 MHz			1	Cable - 2m		145 mm	5.709 in

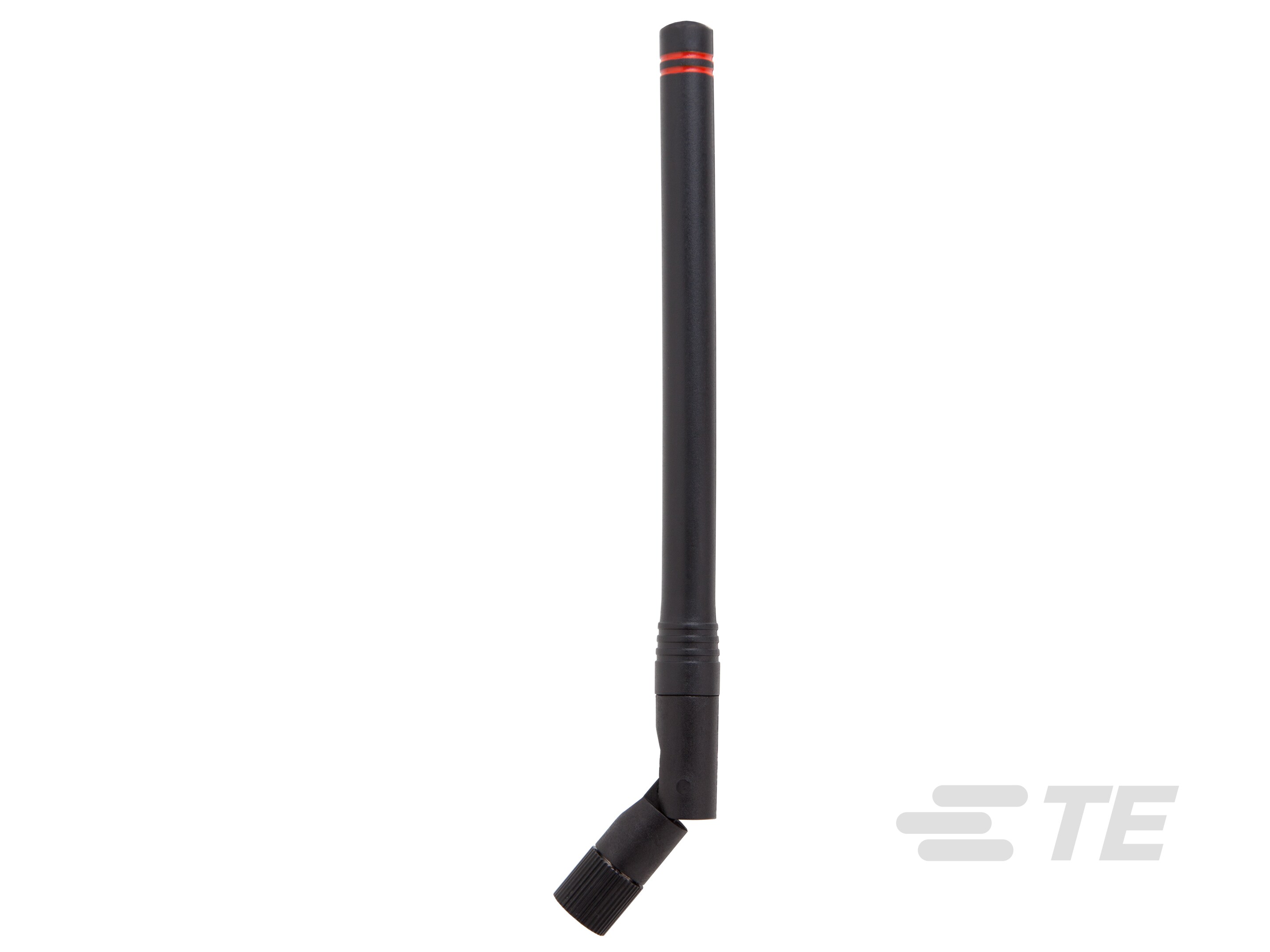

TE Connectivity AMP Connectors ANT-433-CW-HWR-RPS	1.1 dBi	1 GHz	UHF	300 MHz	Tilt Whip	RP-SMA Male	Alarms ISM Remote Control Security Systems	433 MHz	Connector Mount	2	General ISM	418 MHz	448 MHz	142 mm	5.591 in	1

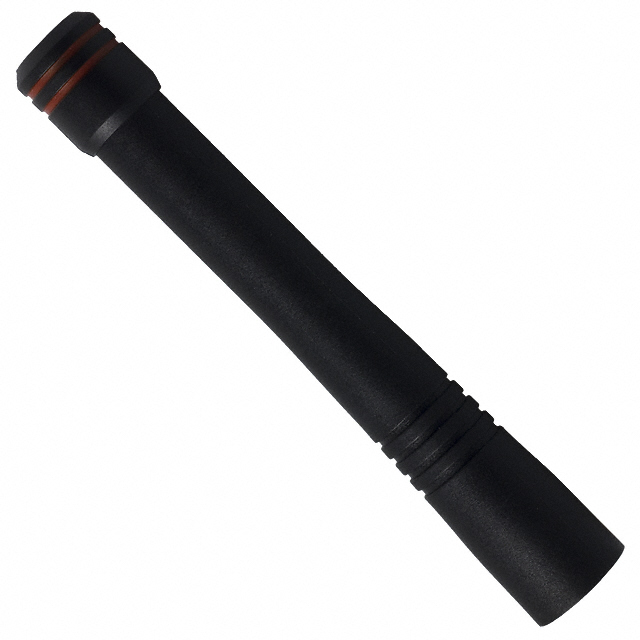

TE Connectivity AMP Connectors ANT-433-CW-HD	0.7 dBi	1 GHz	UHF	300 MHz	Whip Straight	RP-SMA Male	Alarms ISM Remote Control Security Systems	433 MHz	Connector Mount	2	General ISM	420 MHz	445 MHz	88 mm		1					3.465 in
TE Connectivity AMP Connectors ANT-433-USP-T	-9.8 dBi	1 GHz	UHF	300 MHz	Chip	Solder	Alarms ISM Remote Control Security Systems	433 MHz	Surface Mount	2	General ISM	429 MHz	437 MHz	2.62 mm	0.103 in	1
TE Connectivity AMP Connectors ANT-433-CW-RH	-5.6 dBi	1 GHz	UHF	300 MHz	Whip Straight	RP-SMA Male	Alarms ISM Remote Control Security Systems	433 MHz	Connector Mount	1.9	General ISM	425 MHz	440 MHz	51 mm		1					2.008 in

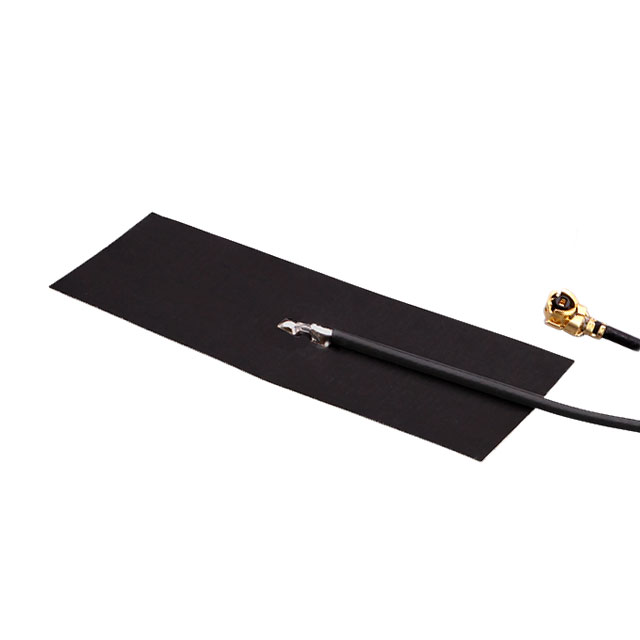

TE Connectivity AMP Connectors ANT-433-FPC-UFL-100	-6 dBi -5.4 dBi -2.4 dBi	1 GHz	UHF	300 MHz	Flat Patch	I-PEX MHF1 U.FL (UMCC)	ISM LoRaWAN LPWA	410 MHz 433 MHz 450 MHz	Adhesive	2.5 3.4 4.1	General ISM	410 MHz 430 MHz 450 MHz	430 MHz 435 MHz 470 MHz	0.2 mm		3	Cable			0.01 in		2 W	100 mm	-7.4 dB -5.3 dB -4.3 dB

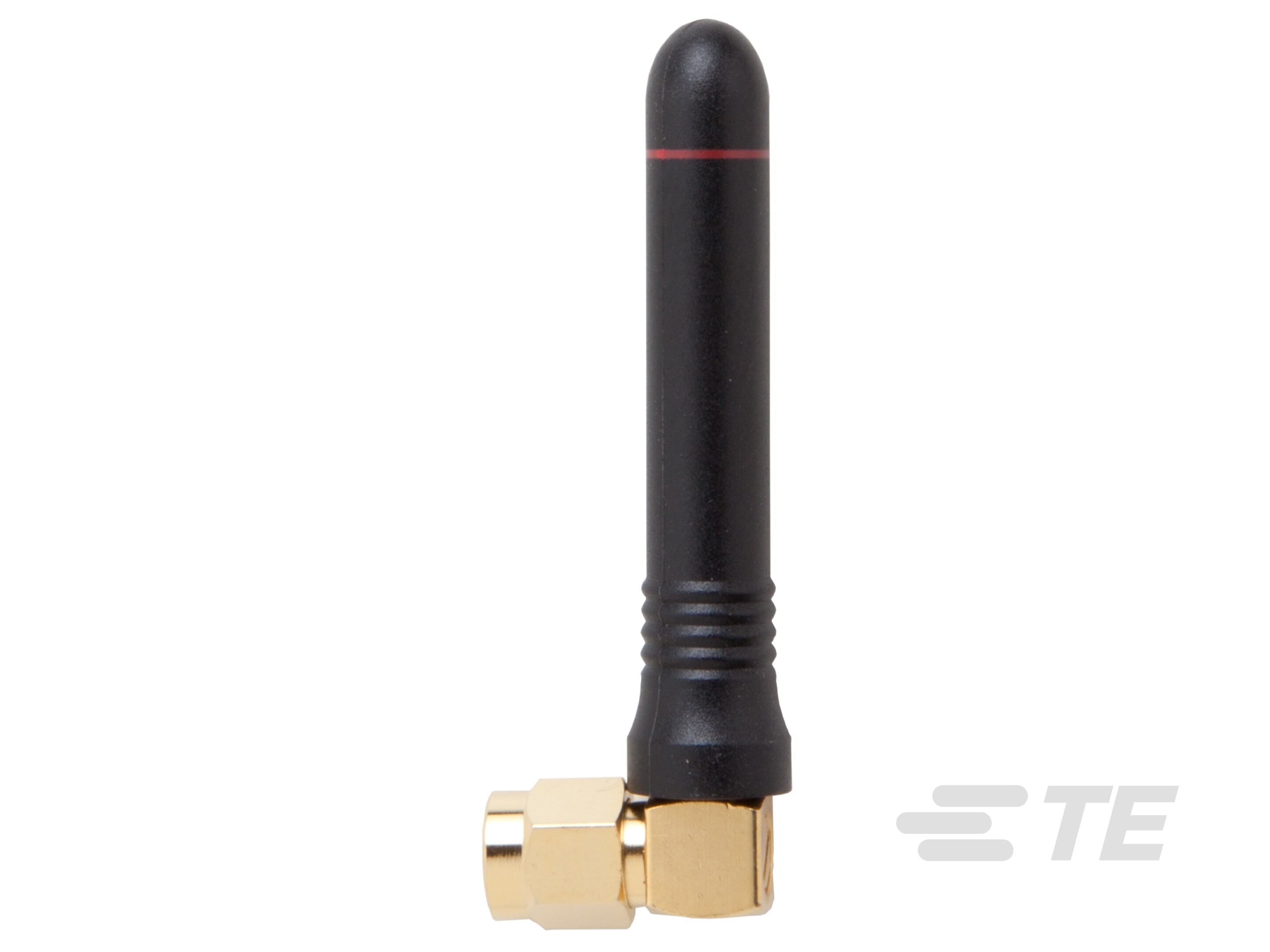

TE Connectivity AMP Connectors ANT-433-CW-RCS	-2.9 dBi	1 GHz	UHF	300 MHz	Right Angle Whip	RP-SMA Male	Alarms ISM Remote Control Security Systems	433 MHz	Connector Mount	2	General ISM	425 MHz	440 MHz	2.106 in		1		53.5 mm
