AB-FD02408 Series
Manufacturer: American Bright Optoelectronics Corporation
Beta
⌘K

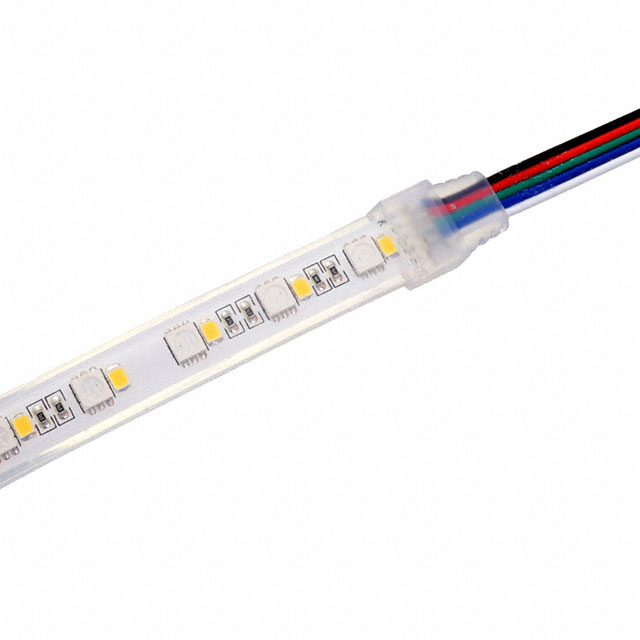

LED MOD AB-FD RGBW LNR STRIP
| Part | Lens Type | Viewing Angle | Lumens/Watt @ Current - Test [custom] | Lumens/Watt @ Current - Test [custom] | Lumens/Watt @ Current - Test [custom] | Lumens/Watt @ Current - Test [custom] | Features | Voltage - Forward (Vf) (Typ) | Type | Height [z] | Color | Luminous Flux @ Current/Temperature [custom] | Luminous Flux @ Current/Temperature [custom] | Luminous Flux @ Current/Temperature [custom] | Luminous Flux @ Current/Temperature [custom] | Current - Test | CRI (Color Rendering Index) | Size / Dimension [y] | Size / Dimension [x] | Wavelength | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Bright Optoelectronics Corporation | Flat | 120 ° | 16 lm/W | 6 lm/W | 4 lm/W | 24 lm/W | IP68 | 24 V | LED Module | 6.5 mm | Blue Green Red White | 50 lm | 334 lm | 81 lm | 223 lm | 590mA Blue 590mA Green 590mA Red 590mA White | 80 | 14.5 mm | 5000 mm | 470 nm 528 nm 625 nm | Linear Light Strip Flexible |
