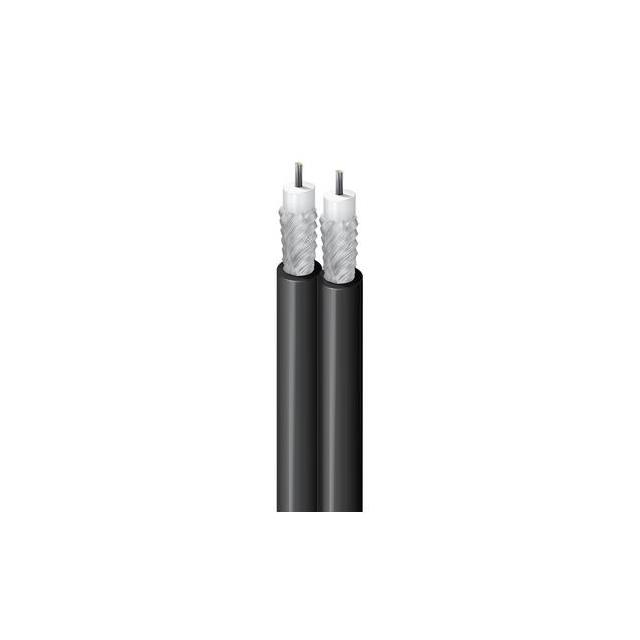

7700A Series
Manufacturer: Belden Inc.
Beta
⌘K
2#30 FPFA SRV FLRST PARA
| Part | Shield Coverage | Dielectric Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | VoP, Velocity of Propagation | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Length [x] | Length [x] | Wire Gauge | Jacket (Insulation) Material | Jacket Color | Cable Group | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 95 % | Perfluoroalkoxy (PFA) | 1.35 mm | 0.053 in | 78 | Copper Tinned | -20 ░C | 60 °C | Copper Tinned | 152.4 m | 500 ft | 30 AWG | Poly-Vinyl Chloride (PVC) | Black | RG-59 Mini | 0.215 in | 5.46 mm | Multi-Conductor | 38 AWG | 7 Strands | Braid | Video |
