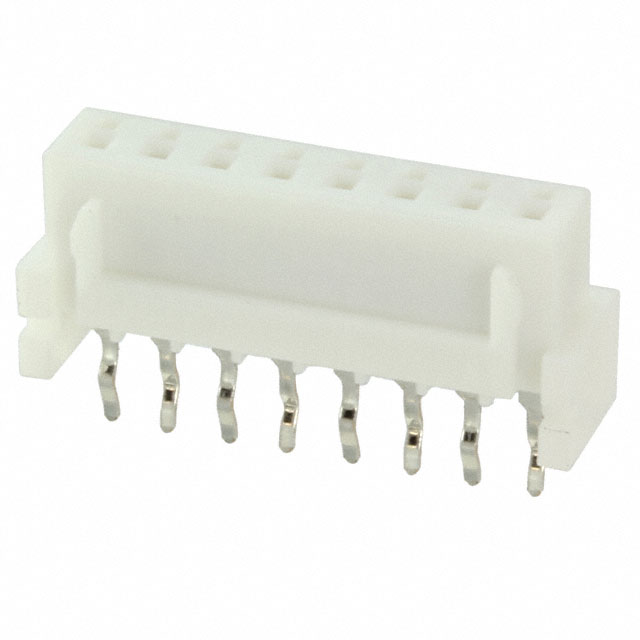

08JQ Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN RCPT 8POS 0.098 TIN PCB R/A
| Part | Contact Shape | Insulation Material | Contact Material | Number of Positions | Insulation Height [custom] | Insulation Height [custom] | Fastening Type | Termination | Number of Rows | Voltage Rating | Insulation Color | Number of Positions Loaded | Connector Type | Material Flammability Rating | Mounting Type | Contact Type | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Insulation Height [z] | Insulation Height [z] | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Square | Nylon 6/6 Polyamide (PA66) | Phosphor Bronze | 8 | 0.236 " | 6 mm | Friction Lock | Press-Fit Solder | 1 | 250 V | Natural | All | Receptacle | UL94 V-0 | Right Angle Through Hole | Female Socket | 2.5 mm | 0.098 in | 85 °C | -25 °C | 3 A | |||
 JST Sales America Inc. | Square | Nylon 6/6 Polyamide (PA66) | Phosphor Bronze | 8 | Friction Lock | Press-Fit Solder | 1 | 250 V | Natural | All | Receptacle | UL94 V-0 | Through Hole | Female Socket | 2.5 mm | 0.098 in | 85 °C | -25 °C | 3 A | 9.5 mm | 0.374 in | 11.8 mm |
