0MIN010.VPGLO Series

Fuse - Mini SmartGlow 32VDC 10A 2-pc

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

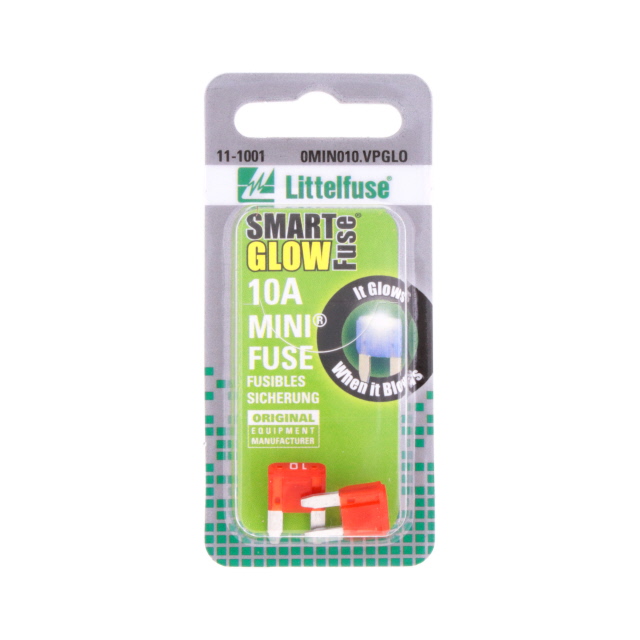

Fuse - Mini SmartGlow 32VDC 10A 2-pc

Part	Approval Agency	Fuse Type	Package / Case	Response Time	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current Rating (Amps)	Mounting Type	Voltage Rating - AC	Color	Voltage Rating - DC
Littelfuse/Commercial Vehicle Products 0MIN010.VPGLO	SAE UL	Automotive	Blade Miniature	Fast Blow	3.8 mm	0.429 "	8.8 mm	0.15 "	0.346 inches	10.9 mm	10 A	Requires Holder	32 V	Red	32 V

Catalog

Fuse - Mini SmartGlow 32VDC 10A 2-pc

Key Features

• Red housing indicates 10 A rating

• Tin-plated zinc alloy terminals

• Complies with SAE J2077 and ISO 8820-3

• UL Listed

Description

This 10 A MINI® Smart Glow blade fuse features an LED light that comes on to show when the fuse blows. Despite its miniature design and light weight, the MINI fuse performs reliably in adverse environments and at extreme temperatures.
