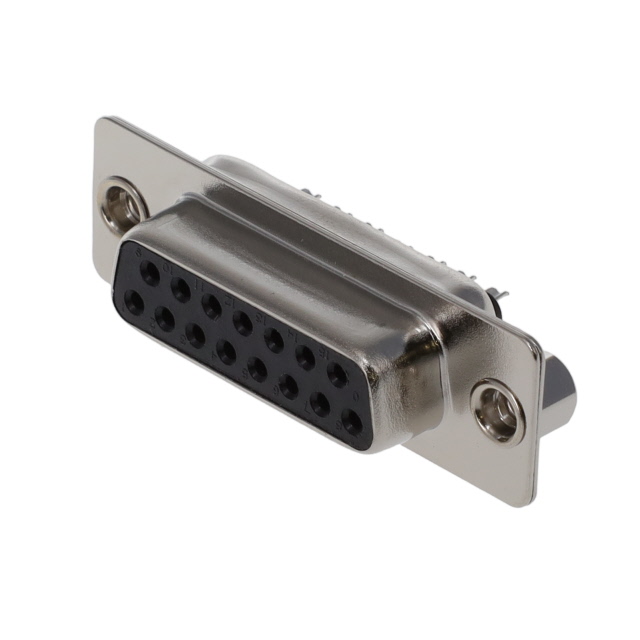

K85X-AA Series
Manufacturer: Kycon, Inc.
Beta
⌘K
CONN DSUB RCPT 15P VERT SLDR CUP
| Part | Contact Material | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Dielectric Material | Contact Finish Thickness | Connector Type | Contact Type | Shell Size, Connector Layout | Current Rating (Amps) | Shell Material, Finish | Number of Positions | Flange Feature | Connector Style | Number of Rows [custom] | Mounting Type | Material Flammability Rating | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | Brass | Stamped | -55 C | 105 ░C | Black | 30 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Flash | Receptacle Female Sockets | Signal | 2 | 2 A | Nickel Plated Steel | 15 | Board Side (4-40) | D-Sub | 2 | Through Hole | UL94 V-0 | Gold | ||
 Kycon, Inc. | Brass | Stamped | -55 C | 105 ░C | Black | 30 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Receptacle Female Sockets | Signal | 2 | 2 A | Nickel Plated Steel | 15 | Housing/Shell (Unthreaded) | D-Sub | 2 | Through Hole | UL94 V-0 | Gold | 30 Áin | 0.76 Ám |
