MAX40008 Series

Catalog

IC COMPARATOR 1 GEN PUR 6WLP

Part	Mounting Type	Number of Elements	CMRR, PSRR (Typ)	Current - Input Bias (Max) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Current - Quiescent (Max) [Max]	Propagation Delay (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Hysteresis	Type	Voltage - Input Offset (Max) [Max]	Output Type	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Supplied Contents	Utilized IC / Part	Function
Analog Devices Inc./Maxim Integrated MAX40008ANT+	Surface Mount	1	60 dB 70 dB	0.14 µA	1.7 V	5.5 V	17 µA	850 ns	6-XFBGA WLPBGA	125 °C	-40 °C	3 mV	General Purpose	5 mV	Open-Drain	1.08	6-WLP	0.73
Analog Devices Inc./Maxim Integrated MAX40008AUT+T	Surface Mount	1	60 dB 70 dB	0.14 µA	1.7 V	5.5 V	17 µA	850 ns	SOT-23-6	125 °C	-40 °C	3 mV	General Purpose	5 mV	Open-Drain		SOT-6

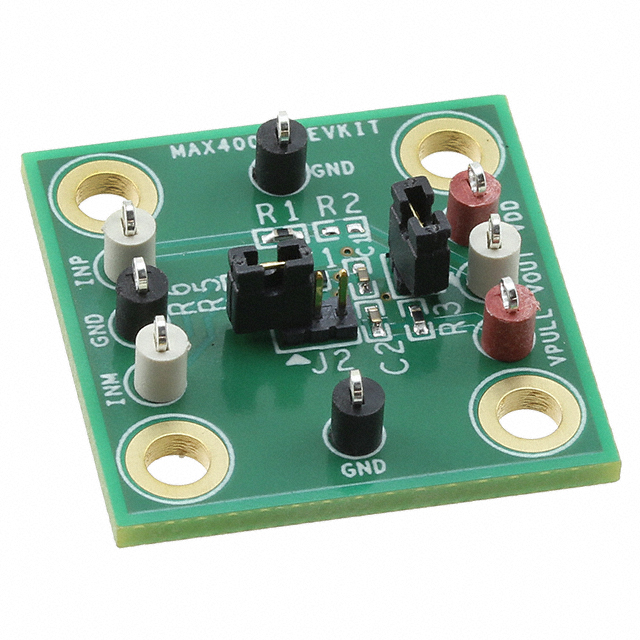

Analog Devices Inc./Maxim Integrated MAX40008EVKIT#													Linear						Board(s)	MAX40008	Comparator Single
Analog Devices Inc./Maxim Integrated MAX40008ANT+T	Surface Mount	1	60 dB 70 dB	0.14 µA	1.7 V	5.5 V	17 µA	850 ns	6-XFBGA WLPBGA	125 °C	-40 °C	3 mV	General Purpose	5 mV	Open-Drain	1.08	6-WLP	0.73
