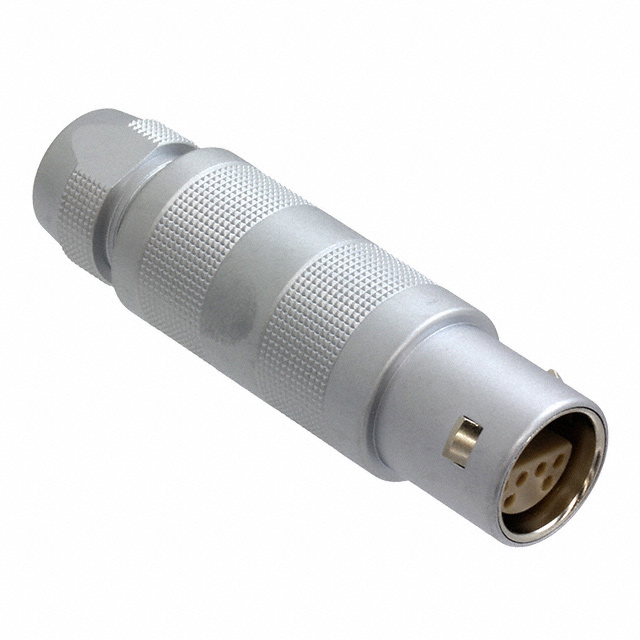

FFP.3S Series
Manufacturer: LEMO
Beta
⌘K
CONN CIRC PLUG 4P GOLD SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Connector Type | Orientation | Backshell Material, Plating | Current Rating (Amps) | Features | Contact Material | Contact Finish - Mating | Shell Material | Shielding | Primary Material | Insert Material | Number of Positions | Ingress Protection | Fastening Type | Mounting Type | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Color | Shell Size - Insert | Material Flammability Rating | Cable Opening [Max] | Shell Size - Insert [custom] | Cable Opening | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-55 C | 250 °C | Chrome | Plug Female Sockets and Male Pins | Keyed | Brass Chrome | 18 A | Backshell | Brass Bronze | Gold | Brass | Shielded | Metal | Polyetheretherketone (PEEK) | 4 | IP50 - Dust Protected | Push-Pull | Free Hanging (In-Line) | 10.5 mm | 9.8 mm | 0.386 " | 0.413 in | Silver | 304 | UL94 V-0 | |||||
-55 C | 250 °C | Chrome | Plug Female Sockets and Male Pins | Keyed | Brass Chrome | 8 A | Backshell | Brass Bronze | Gold | Brass | Shielded | Metal | Polyetheretherketone (PEEK) | 12 | IP50 - Dust Protected | Push-Pull | Free Hanging (In-Line) | Silver | 312 | UL94 V-0 | |||||||||
-55 C | 250 °C | Chrome | Plug Female Sockets and Male Pins | Keyed | Brass Chrome | 8 A | Backshell | Brass Bronze | Gold | Brass | Shielded | Metal | Polyetheretherketone (PEEK) | 12 | IP50 - Dust Protected | Push-Pull | Free Hanging (In-Line) | 5.8 mm | 0.228 in | 0.283 " | Silver | 312 | UL94 V-0 | 7.2 mm | |||||
LEMO | -55 C | 250 °C | Insert Female Sockets and Male Pins | Keyed | 7 A | Insert Only Requires Shell | Brass Bronze | Gold | Shielded | Polyetheretherketone (PEEK) | 16 | IP50 - Dust Protected | UL94 V-0 | 316 | |||||||||||||||
-55 C | 250 °C | Chrome | Plug Female Sockets and Male Pins | Keyed | Brass Chrome | 7 A | Backshell | Brass Bronze | Gold | Brass | Shielded | Metal | Polyetheretherketone (PEEK) | 14 | IP50 - Dust Protected | Push-Pull | Free Hanging (In-Line) | 5.8 mm | 0.228 in | 0.283 " | Silver | 314 | UL94 V-0 | 7.2 mm | |||||
 LEMO | |||||||||||||||||||||||||||||
-55 C | 250 °C | Chrome | Plug Female Sockets and Male Pins | Keyed | Brass Chrome | 23 A | Backshell | Brass Bronze | Gold | Brass | Shielded | Metal | Polyetheretherketone (PEEK) | 2 | IP50 - Dust Protected | Push-Pull | Free Hanging (In-Line) | Silver | 302 | UL94 V-0 | 0.394 in | 10 mm | |||||||
