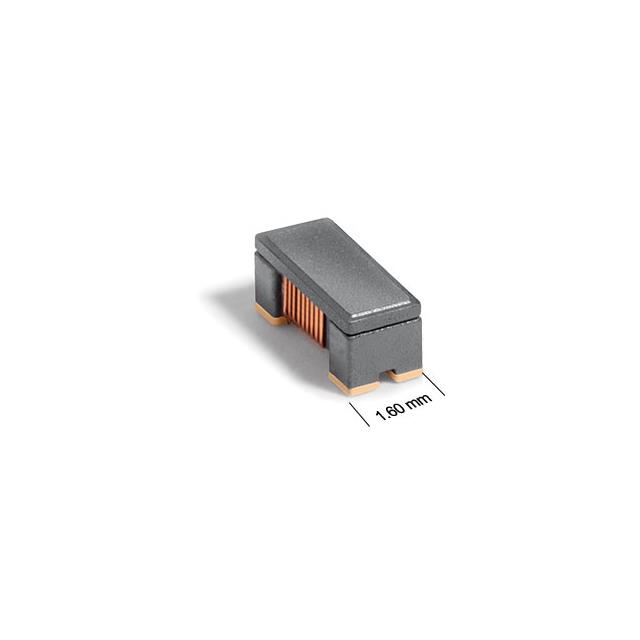

1206USB Series
Manufacturer: Coilcraft
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
COMMON MODE CHOKES / FILTERS FOR HI SPEED SIGNAL 623NH DCR=.44OHMS
| Part | Mounting Type | Impedance | Height (Max) | Size / Dimension Width | Size / Dimension Length | Number of Lines | Inductance | Pad Count | Package Name | DC Resistance (DCR) (Max) | Current Rating (Max) | Filter Type | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coilcraft | Surface Mount | 2.24 kOhms | 0.076 in | 0.063 in | 0.126 in | 2 | 623 nH | 4 PC Pad | Horizontal | 440 mOhm | 500 mA | Signal Line | -40 °C | 85 °C |
