3770 Series
Manufacturer: Pomona Electronics
Beta
⌘K

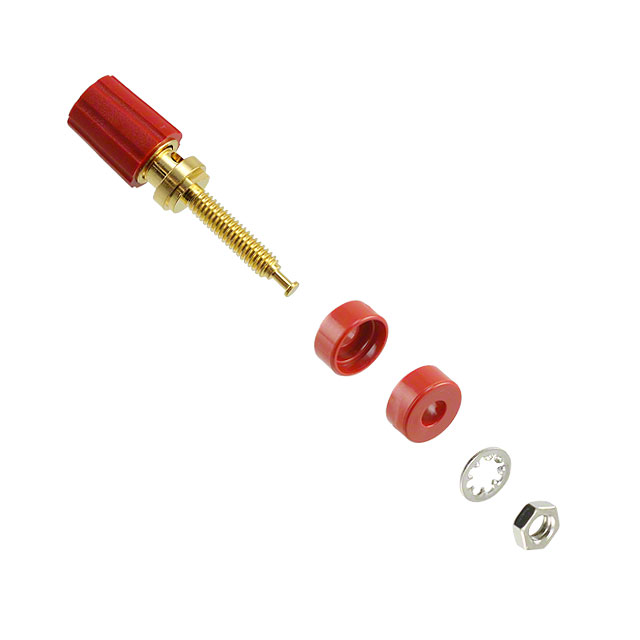

CONN BIND POST KNURLED RED
| Part | Material - Insulation | Cross Hole Diameter | Cross Hole Diameter | Head Size [diameter] | Head Size [diameter] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Material - Body | Nut Plating | Nut Material | Voltage Rating | Current Rating (Amps) | Termination Thread | Termination | Type | Plating - Body | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pomona Electronics | Polycarbonate (PC) | 2.43 mm | 0.096 in | 0.44 " | 11.18 mm | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | Copper Tellurium Copper | Nickel | Brass | 33 VAC/DC 70 VDC | 15 A | 8-32 | Threaded and Turret | Standard | Gold | Red |

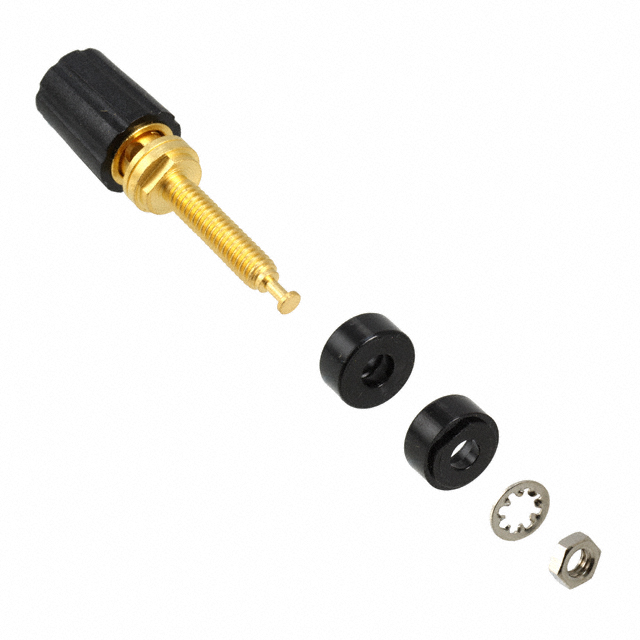

 Pomona Electronics | Polycarbonate (PC) | 2.43 mm | 0.096 in | 0.44 " | 11.18 mm | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | Tellurium Copper | Nickel | Brass | 33 VAC/DC 70 VDC | 15 A | 8-32 | Threaded and Turret | Standard | Gold | Black |
 Pomona Electronics | Polycarbonate (PC) | 2.43 mm | 0.096 in | 0.44 " | 11.18 mm | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | Copper | Nickel | Brass | 33 VAC/DC 70 VDC | 15 A | 8-32 | Threaded and Turret | Standard | Gold | Red |
Pomona Electronics | Polycarbonate (PC) | 2.43 mm | 0.096 in | 0.44 " | 11.18 mm | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | Copper | Nickel | Brass | 33 VAC/DC 70 VDC | 15 A | 8-32 | Threaded and Turret | Standard | Gold | Black |
