05S160 Series
Manufacturer: Rosenberger
Beta
⌘K
PRECISION N TYPE CALIBRATION ADA
| Part | For Use With/Related Products | Type | Specifications | Accessory Type | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Center Contact Material | Body Finish | Body Material | Dielectric Material | Convert To (Adapter End) | Mounting Type | Conversion Type | Convert From (Adapter End) | Style | Adapter Series | Center Contact Plating | Adapter Type | Impedance | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

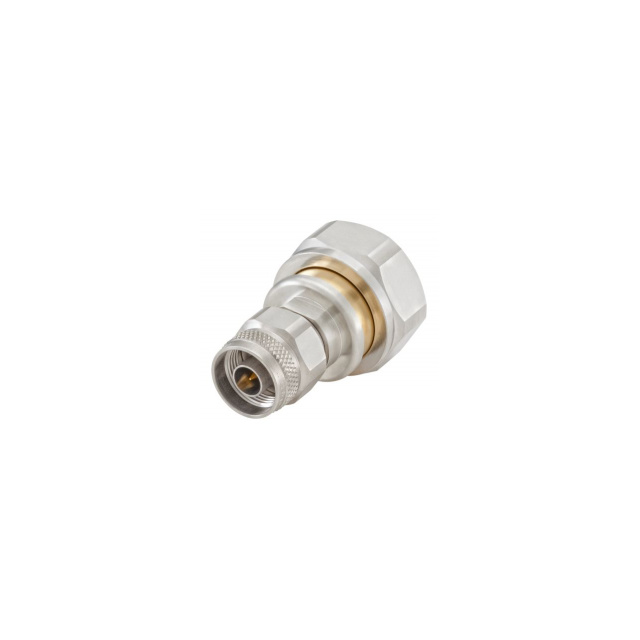

 Rosenberger | Network Analyzer | Specialized | 7/16 Plug N Type 50Ohm Plug | Calibration Adapter | |||||||||||||||||

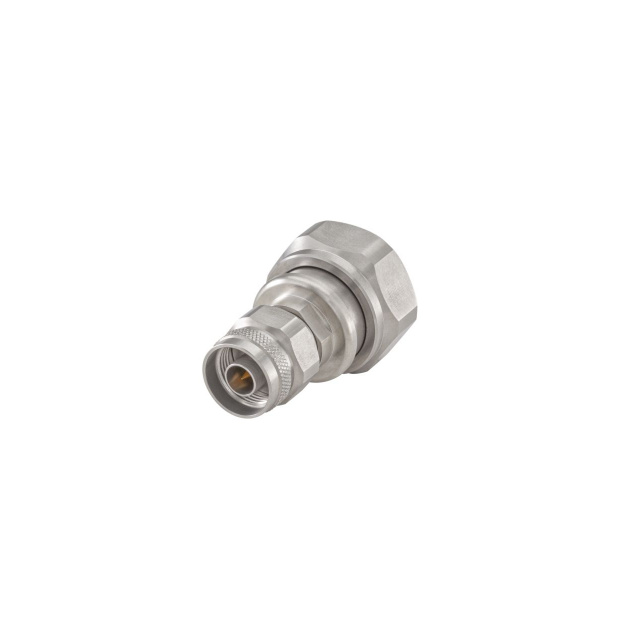

 Rosenberger | Network Analyzer | Specialized | 7/16 50Ohm Plug N Type 50Ohm Plug | Adapter | |||||||||||||||||

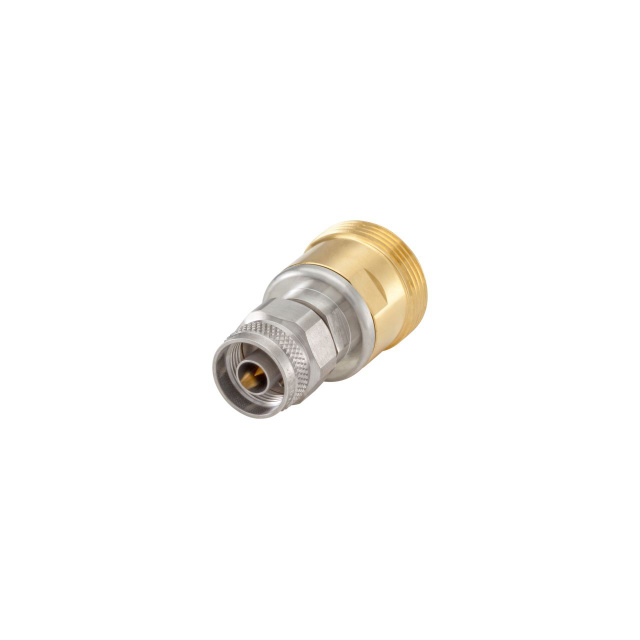

 Rosenberger | 85 °C | -40 C | 500 | Beryllium Copper Brass | Silver White Bronze | Brass | Polyphenylene Ether (PPE) | 7/16 Jack Female Socket | Free Hanging (In-Line) | Between Series | N Plug Male Pin | Straight | RJC-N to 7/16 | Gold | Plug to Jack | 50 Ohms | 8 GHz |
