ECH-U01 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

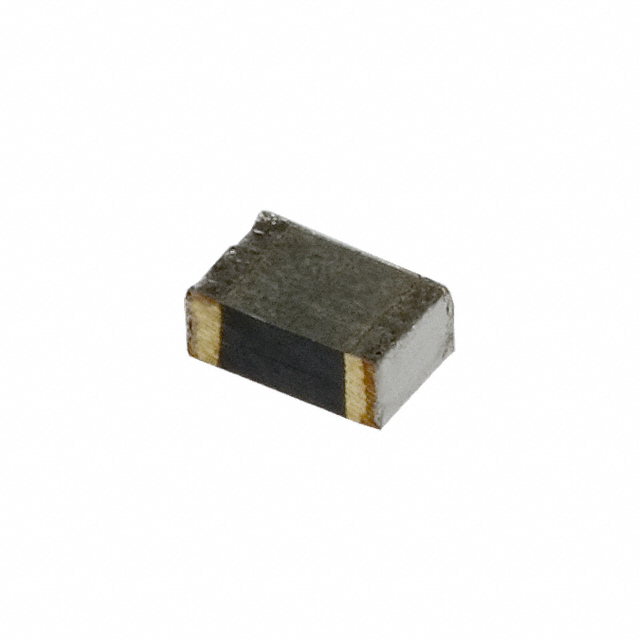

CAP FILM 0.022UF 5% 10VDC 0805

Part	Voltage Rating - DC	Termination	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Package / Case	Applications	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ECH-U01223JX5	10 V	Solder Pads	2 mm	0.079 in	0.049 in	1.25 mm	5 %	0.043 in	1.1 mm	0.022 µF	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Metallized - Stacked	0805	General Purpose	Surface Mount
Panasonic Industrial Automation Sales ECH-U01183JX5	10 V	Solder Pads	2 mm	0.079 in	0.049 in	1.25 mm	5 %	0.035 "	0.9 mm	0.018 µF	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Metallized - Stacked	0805	General Purpose	Surface Mount
Panasonic Industrial Automation Sales ECH-U01273GX5	10 V	Solder Pads	2 mm	0.079 in	0.049 in	1.25 mm	2 %	0.043 in	1.1 mm	0.027 µF	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Metallized - Stacked	0805	General Purpose	Surface Mount
Panasonic Industrial Automation Sales ECH-U01822GX5	10 V	Solder Pads	2 mm	0.079 in	0.049 in	1.25 mm	2 %	0.035 "	0.9 mm		-55 °C	125 °C	Polyphenylene Sulfide (PPS) Metallized - Stacked	0805	General Purpose	Surface Mount
Panasonic Industrial Automation Sales ECH-U01822JX5	10 V	Solder Pads	2 mm	0.079 in	0.049 in	1.25 mm	5 %	0.035 "	0.9 mm		-55 °C	125 °C	Polyphenylene Sulfide (PPS) Metallized - Stacked	0805	General Purpose	Surface Mount
Panasonic Industrial Automation Sales ECH-U01332GX5	10 V	Solder Pads	1.6 mm	0.063 in	0.031 in	0.8 mm	2 %			3300 pF	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Metallized - Stacked	0603 (1608 Metric)	General Purpose	Surface Mount	0.7 mm	0.028 in
Panasonic Industrial Automation Sales ECH-U01273JX5	10 V	Solder Pads	2 mm	0.079 in	0.049 in	1.25 mm	5 %	0.043 in	1.1 mm	0.027 µF	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Metallized - Stacked	0805	General Purpose	Surface Mount
Panasonic Industrial Automation Sales ECH-U01183GX5	10 V	Solder Pads	2 mm	0.079 in	0.049 in	1.25 mm	2 %	0.035 "	0.9 mm	0.018 µF	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Metallized - Stacked	0805	General Purpose	Surface Mount
Panasonic Industrial Automation Sales ECH-U01472GX5	10 V	Solder Pads	1.6 mm	0.063 in	0.031 in	0.8 mm	2 %			4700 pF	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Metallized - Stacked	0603 (1608 Metric)	General Purpose	Surface Mount	0.7 mm	0.028 in
Panasonic Industrial Automation Sales ECH-U01123GX5	10 V	Solder Pads	2 mm	0.079 in	0.049 in	1.25 mm	2 %	0.035 "	0.9 mm	0.012 µF	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Metallized - Stacked	0805	General Purpose	Surface Mount
