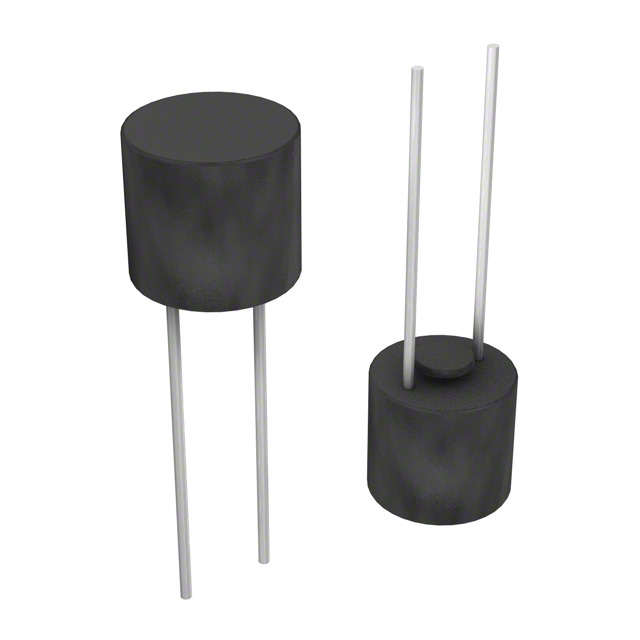

SR-5H Series
Fuses with Leads - Through Hole SR-5H-RADIAL TD FUSE
Manufacturer: Eaton - Electronics Division
Catalog
Fuses with Leads - Through Hole SR-5H-RADIAL TD FUSE
Beta
⌘K
Fuses with Leads - Through Hole SR-5H-RADIAL TD FUSE
Fuses with Leads - Through Hole SR-5H-RADIAL TD FUSE
Fuses with Leads - Through Hole SR-5H-RADIAL TD FUSE
| Part | DC Cold Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [z] | Voltage Rating - AC | Response Time | Melting I²t | Approval Agency | Breaking Capacity @ Rated Voltage | Mounting Type | Fuse Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | 0.06 Ohms | 85 °C | -40 C | Can Radial Vertical | 9.2 mm | 0.335 in | 8.5 mm | 0.362 in | 300 V | Slow Blow | 13 I²t | CCC cULus KC-MARK PSE SEMKO VDE | 100 A | Through Hole | Board Mount (Cartridge Style Excluded) | 1.25 A |
 Eaton - Electronics Division | 85 °C | -40 C | Can Radial Vertical | 9.2 mm | 0.335 in | 8.5 mm | 0.362 in | 300 V | Slow Blow | 24 | CCC cULus KC-MARK PSE SEMKO VDE | 100 A | Through Hole | Board Mount (Cartridge Style Excluded) | 1.6 A |
