SDS223 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

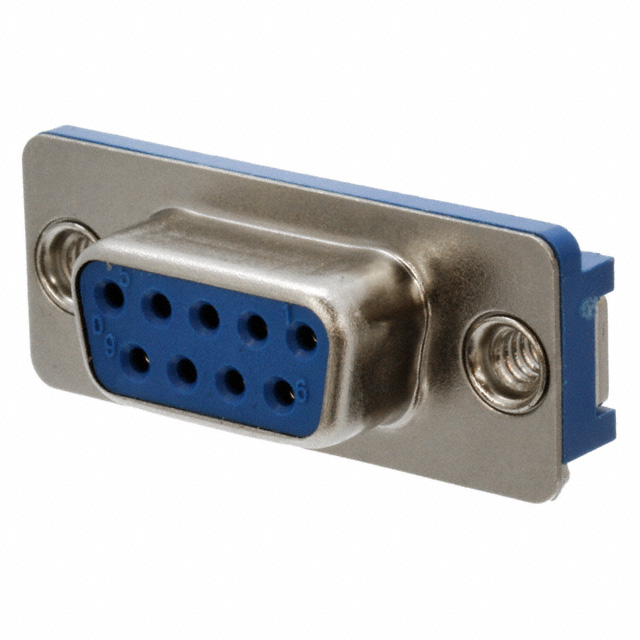

CONN D-SUB RCPT 9POS R/A SLDR
| Part | Voltage Rating | Color | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Contact Form | Backset Spacing | Backset Spacing | Current Rating (Amps) | Contact Type | Shell Material, Finish | Features | Mounting Type | Termination | Connector Type | Connector Style | Number of Rows [custom] | Material Flammability Rating | Flange Feature | Flange Feature | Number of Positions | Contact Finish | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 250 V | Blue | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | Brass | Stamped | 2.6 mm | 0.102 in | 3 A | Signal | Nickel Plated Steel | Board Lock | Right Angle Through Hole | Solder | Receptacle Female Sockets | D-Sub | 2 | UL94 V-0 | Housing/Shell | 4-40 | 9 | Gold | Flash | 1 | DE E |
