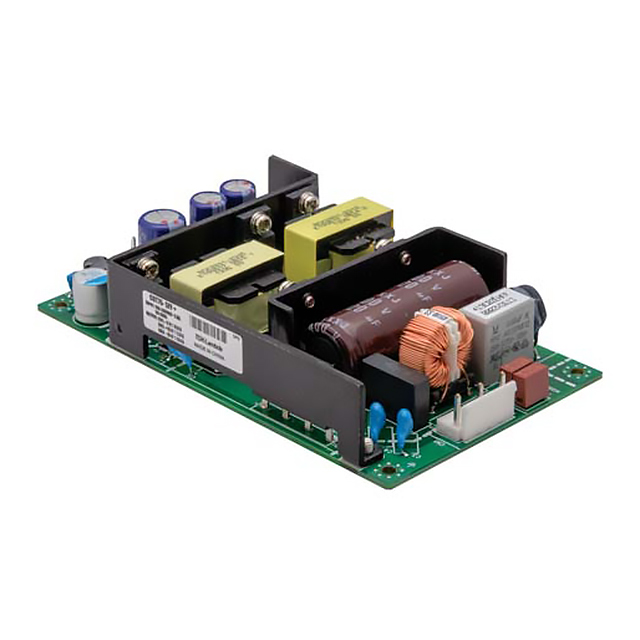

CUT75 Series

Catalog

AC/DC OPEN FRAME POWER SUPPLY (PSU), 3 OUTPUT, 75 W, 85V AC TO 265V AC, ADJUSTABLE, FIXED, 5 V

Part	Mounting Type	Voltage - Output 3	Voltage - Isolation	Efficiency	Voltage - Output 2	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Type	Features	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 1	Current - Output 2	Applications	Voltage - Output 1	Approval Agency
TDK Corporation CUT75-5FF/T	Chassis Mount	-15 V	3000 V	85 %	15 V	75 W	76.2 mm	1.06 in	5 "	26.9 mm	127 mm	3 "	3	70 °C	-20 °C	Open Frame	Adjustable Output DC Input Capable Universal Input	265 VAC	85 VAC	8 A	2.5 A	ITE (Commercial)	5 V	CE TUV

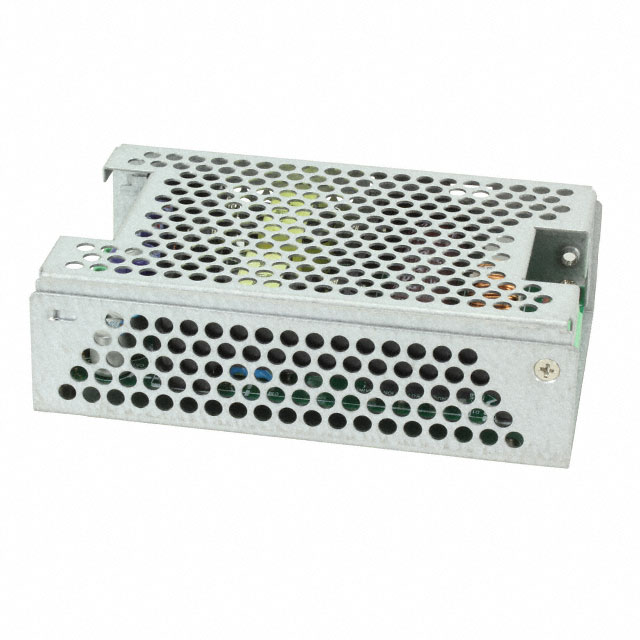

TDK Corporation CUT75-5FF/TA	Chassis Mount	-15 V	3000 V	85 %	15 V	75 W	76.2 mm	1.06 in	5 "	26.9 mm	127 mm	3 "	3	70 °C	-20 °C	Enclosed	Adjustable Output DC Input Capable Universal Input	265 VAC	85 VAC	8 A	2.5 A	ITE (Commercial)	5 V	CE TUV
TDK Corporation CUT75-522/T	Chassis Mount	-12 V	3000 V	85 %	12 V	75 W	76.2 mm	1.06 in	5 "	26.9 mm	127 mm	3 "	3	70 °C	-20 °C	Open Frame	Adjustable Output DC Input Capable Universal Input	265 VAC	85 VAC	8 A	3 A	ITE (Commercial)	5 V	CE TUV
TDK Corporation CUT75-5FF/TB	Chassis Mount	-15 V	3000 V	85 %	15 V	75 W	76.2 mm	1.06 in	5 "	26.9 mm	127 mm	3 "	3	70 °C	-20 °C	Open Frame	Adjustable Output Baseplate DC Input Capable Universal Input	265 VAC	85 VAC	8 A	2.5 A	ITE (Commercial)	5 V	CE TUV
TDK Corporation CUT75-5FF	Chassis Mount	-15 V	3000 V	85 %	15 V	75 W	76.2 mm	1.06 in	5 "	26.9 mm	127 mm	3 "	3	70 °C	-20 °C	Open Frame	Adjustable Output DC Input Capable Universal Input	265 VAC	85 VAC	8 A	2.5 A	ITE (Commercial)	5 V	CE TUV
TDK Corporation CUT75-522/TA	Chassis Mount	-12 V	3000 V	85 %	12 V	75 W	76.2 mm	1.06 in	5 "	26.9 mm	127 mm	3 "	3	70 °C	-20 °C	Enclosed	Adjustable Output DC Input Capable Universal Input	265 VAC	85 VAC	8 A	3 A	ITE (Commercial)	5 V	CE TUV
