712A Series

Catalog

DC POWER CONNECTOR, IN LINE, FLEX RELIEF, JACK, 5 A, 2.5 MM, 5.5 MM, CABLE MOUNT, SOLDER

Part	Contact Material	Body Color	Body Material	Housing Material	Contact Material - Plating	Features	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Voltage - Rated	Actual Diameter [diameter]	Actual Diameter [diameter]	Connector Type	Termination	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Insulation Color	Shielding	Current Rating (Amps)	Includes	Thread Size	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Mating Length/Depth	Mating Length/Depth	Mounting Feature	Internal Switch(s)

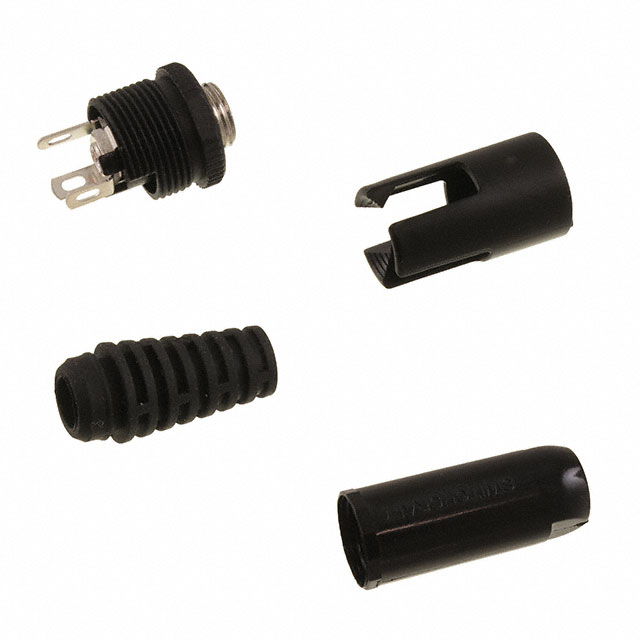

SWITCHCRAFT/CONXALL 712ACF	Copper Alloy	Black Silver	Copper Alloy	Thermoplastic	Tin	Strain Relief	Male	-40 C	105 ░C	Free Hanging (In-Line)	2	3	24 VDC	0.098 in	2.5 mm	Jack	Solder Eyelet(s)	2.5 mm	0.098 "	Black	Unshielded	5 A

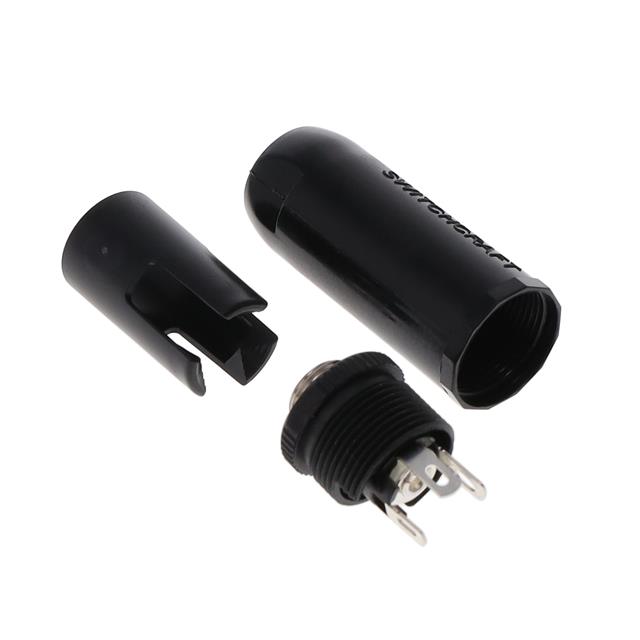

SWITCHCRAFT/CONXALL 712AC	Copper Alloy	Black Silver	Copper Alloy	Thermoplastic	Tin		Male	-40 C	105 ░C	Free Hanging (In-Line)	2	3	24 VDC	0.098 in	2.5 mm	Jack	Solder Eyelet(s)	2.5 mm	0.098 "	Black	Unshielded	5 A
SWITCHCRAFT/CONXALL 712AFMS	Brass	Silver	Brass	Acrylonitrile Butadiene Styrene (ABS)	Nickel		Male	-40 C	65 °C	Panel Mount	2	2	48 VAC	0.098 in 0.217 in	2.5 mm 5.5 mm	Jack	Solder Cup Solder Eyelet			Silver	Shielded	5 A	Mounting Hardware	M11x1	0.217 in	2.5 mm	5.5 mm	0.098 in	0.374 in	9.5 mm	Bulkhead - Rear Side Nut
SWITCHCRAFT/CONXALL 712AH	Copper Alloy	Black Silver	Copper Alloy	Thermoplastic	Nickel		Male			Through Hole	2	3	48 VDC			Jack	Through Hole	2.5 mm	0.098 "		Unshielded		1 Nut 1 Washer 3 pcs - 1 Connector	5/16"-32								Single Switch
