1609109 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Approval Agency	Features	Mounting Type	Connector Type	Current Rating - Appliance Inlet	Connector Style	Fuse Holder, Drawer	Termination	Termination	Termination	Current Rating - Filter	Filter Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - Appliance Inlet	Switch Features	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]
TE Connectivity Raychem Cable Protection 2-1609109-8	CSA UL VDE	Conversion Clip Shielded	Flange Panel Mount	Receptacle Male Blades - Module	6 A	IEC 320-C14	Fuse Holder	0.25 in	6.3 mm	Quick Connect	6 A	Filtered (EMI RFI) - Commercial	55.91 mm	28.45 mm	120 VAC
TE Connectivity Raychem Cable Protection 2-1609109-0	CSA UL VDE	Conversion Clip Shielded	Flange Panel Mount	Receptacle Male Blades - Module	6 A	IEC 320-C14	Fuse Holder	0.25 in	6.3 mm	Quick Connect	6 A	Filtered (EMI RFI) - Commercial	55.91 mm	28.45 mm	120 VAC
TE Connectivity Raychem Cable Protection 1-1609109-9	CSA UL VDE	Shielded	Flange Panel Mount	Receptacle Male Blades - Module	6 A	IEC 320-C14	Fuse Holder Twin Fused	0.25 in	6.3 mm	Quick Connect	6 A	Filtered (EMI RFI) - Commercial	55.91 mm	28.45 mm	120 VAC	Switch On-Off
TE Connectivity Raychem Cable Protection 2-1609109-5	CSA UL VDE	Shielded	Flange Panel Mount	Receptacle Male Blades - Module	10 A	IEC 320-C14	Fuse Holder Twin Fused	0.25 in	6.3 mm	Quick Connect	10 A	Filtered (EMI RFI) - Commercial	55.91 mm	28.45 mm		Switch On-Off	250 VAC	120 VAC
TE Connectivity Raychem Cable Protection 3-1609109-0	CSA UL VDE	Conversion Clip Shielded	Flange Panel Mount	Receptacle Male Blades - Module	6 A	IEC 320-C14	Fuse Holder	0.25 in	6.3 mm	Quick Connect	6 A	Filtered (EMI RFI) - Commercial	55.91 mm	28.45 mm	120 VAC	Switch On-Off
TE Connectivity Raychem Cable Protection 2-1609109-4	CSA UL VDE	Conversion Clip Shielded	Flange Panel Mount	Receptacle Male Blades - Module	10 A	IEC 320-C14	Fuse Holder	0.25 in	6.3 mm	Quick Connect	10 A	Filtered (EMI RFI) - Commercial	55.91 mm	28.45 mm	120 VAC

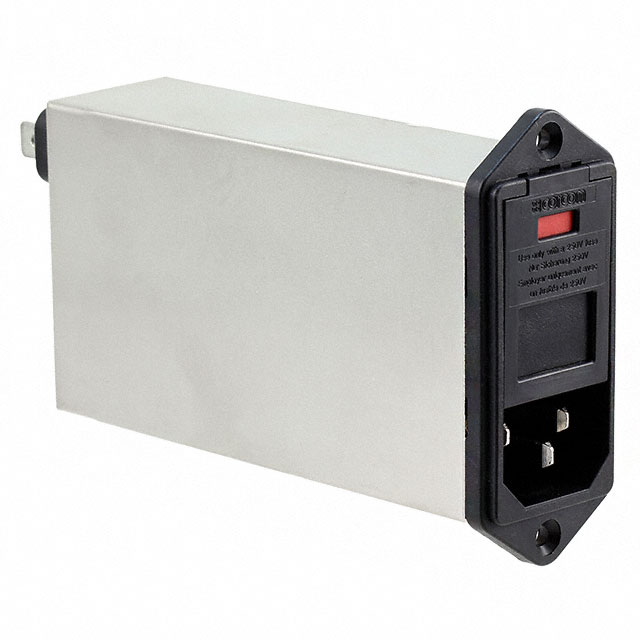

TE Connectivity Raychem Cable Protection 2-1609109-7	CSA UL VDE	Shielded	Flange Panel Mount	Receptacle Male Blades - Module	6 A	IEC 320-C14	Fuse Holder Twin Fused	0.25 in	6.3 mm	Quick Connect	6 A	Filtered (EMI RFI) - Commercial	55.91 mm	28.45 mm	120 VAC
