POEA33U Series
Manufacturer: Phihong USA
Beta
⌘K

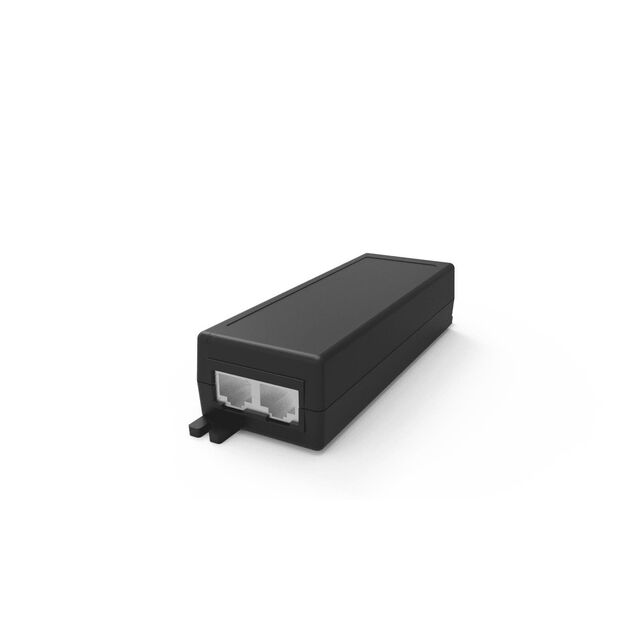

POWER OVER ETHERNET - POE 33W 55V 1G POE ACTIVE INJECTOR
| Part | Output Connector | Input Connector | Compliance | Current - Output | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Standard Number | Mounting Type | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Type | Features | Power (Watts) - Per Port | Data Rate | Approval Agency | Voltage - Output | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phihong USA | RJ45 (Data Power) | International AC Clips (Power) RJ45 (Data) | IEEE802.3at | 600 mA | 1.79 in | 45.5 mm | 30 mm | 1.18 in | 132.5 mm | 5.22 " | 62368-1 | Desktop | 264 VAC | 90 VAC | Level VI | 50 °C | -10 °C | Passive Injector | OCP OVP SCP | 33 W | 1 Gbps | BSMI CCC CE cUL cULus EAC KC UKCA UL | 55 V | 1 |
