DELTA12 Series

Manufacturer: Siretta

Catalog

RF ANT 151MHZ/173MHZ WHIP STR

Part	Number of Bands	RF Family/Standard	Frequency (Center/Band)	Gain	Mounting Type	VSWR	Frequency Group	Height (Max) [z]	Height (Max) [z]	Applications	Antenna Type	Power - Max [Max]	Frequency Group [Max]	Frequency Group [Min]	Termination	Frequency Range [Max]	Frequency Range [Min]
Siretta DELTA12/X/SMAM/S/S/17	2	General ISM	151 MHz 173 MHz	3 dBi	Connector Mount	2	VHF (f < 300MHz)	5.118 in	130 mm	ISM	Whip Straight	50 W

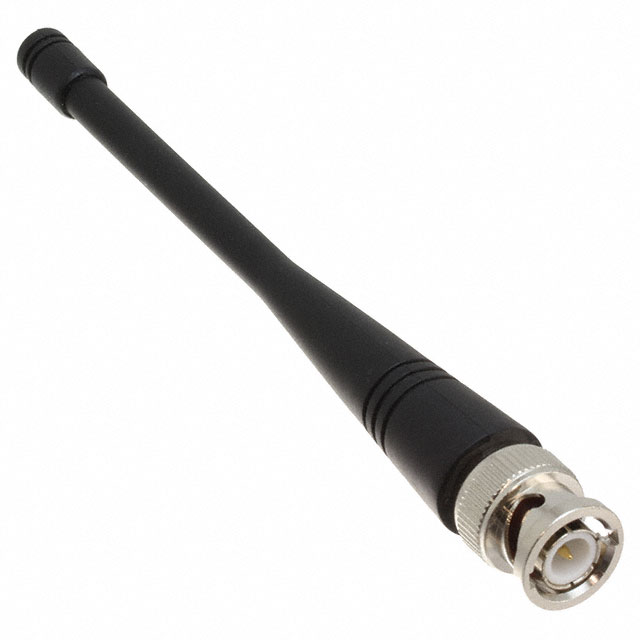

Siretta DELTA12A/X/BNCM/S/S/17	2	General ISM	433 MHz 458 MHz	3 dBi	Connector Mount	2	UHF	5.118 in	130 mm	ISM	Whip Straight	50 W	1 GHz	300 MHz	BNC Male

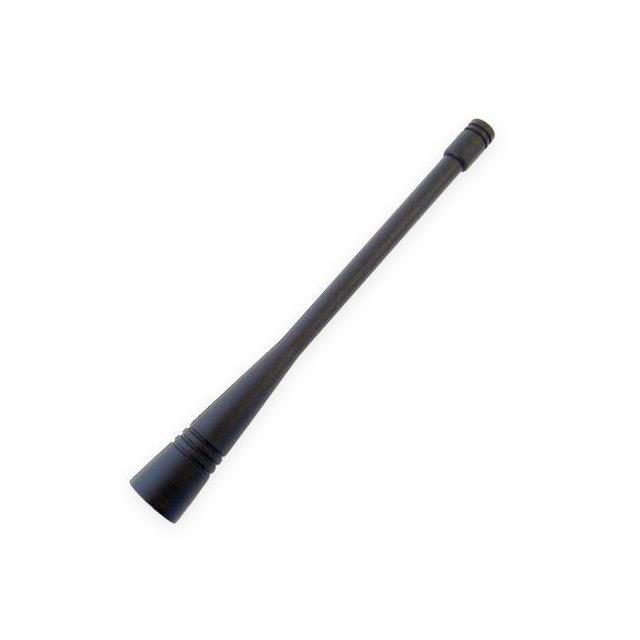

Siretta DELTA12/X/BNCM/S/S/17	2	General ISM	151 MHz 173 MHz	3 dBi	Connector Mount	2	VHF (f < 300MHz)	5.118 in	130 mm	ISM	Whip Straight	50 W			BNC Male

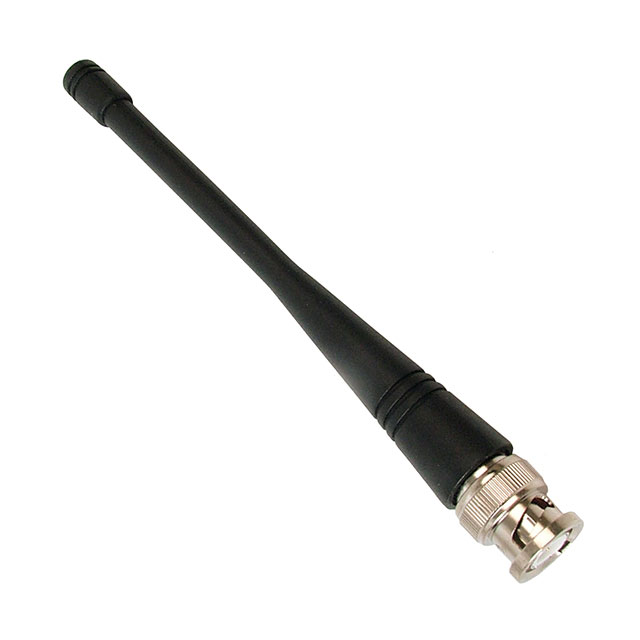

Siretta DELTA12B/X/BNCM/S/S/17	1	General ISM	869 MHz	3 dBi	Connector Mount	2	UHF	5.118 in 6.496 in	130 mm 165 mm	ISM	Whip Straight	50 W	1 GHz	300 MHz	BNC Male	870 MHz	863 MHz

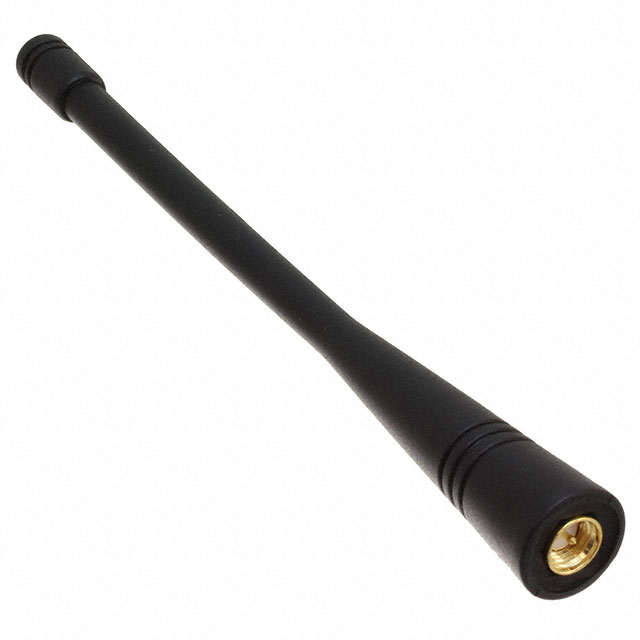

Siretta DELTA12A/X/SMAM/S/S/17	2	General ISM	433 MHz 458 MHz	3 dBi	Connector Mount	2	UHF	5.118 in	130 mm	ISM	Whip Straight	50 W	1 GHz	300 MHz

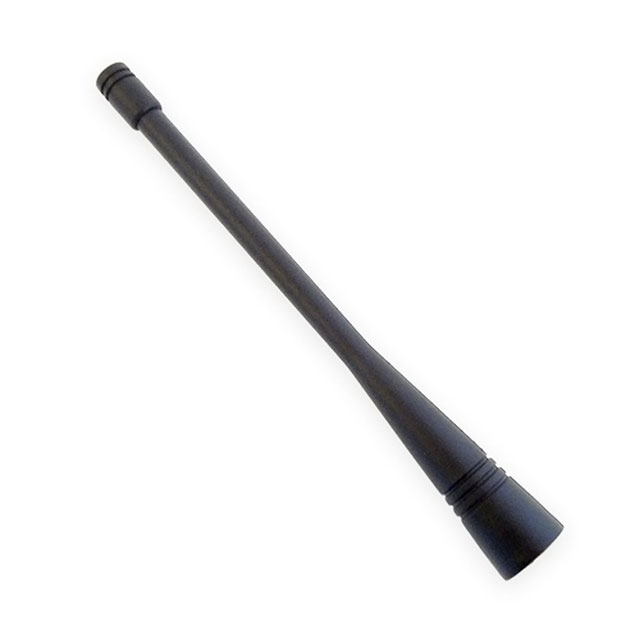

Siretta DELTA12B/X/SMAM/S/S/17 HIGH GAIN	1	General ISM	151 MHz 173 MHz	3 dBi	Connector Mount	2	UHF VHF (f < 300MHz)	5.118 in 5.906 in	130 mm 150 mm	ISM	Whip Straight	50 W	1 GHz	300 MHz		870 MHz	863 MHz

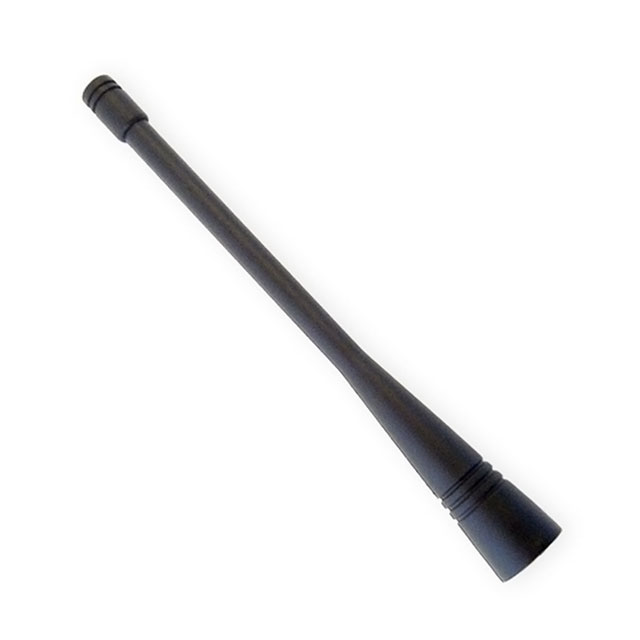

Siretta DELTA12C/X/SMAM/S/S/17	1	General ISM	915 MHz	3 dBi	Connector Mount	2	UHF	5.118 in 5.906 in	130 mm 150 mm	ISM	Whip Straight	50 W	1 GHz	300 MHz

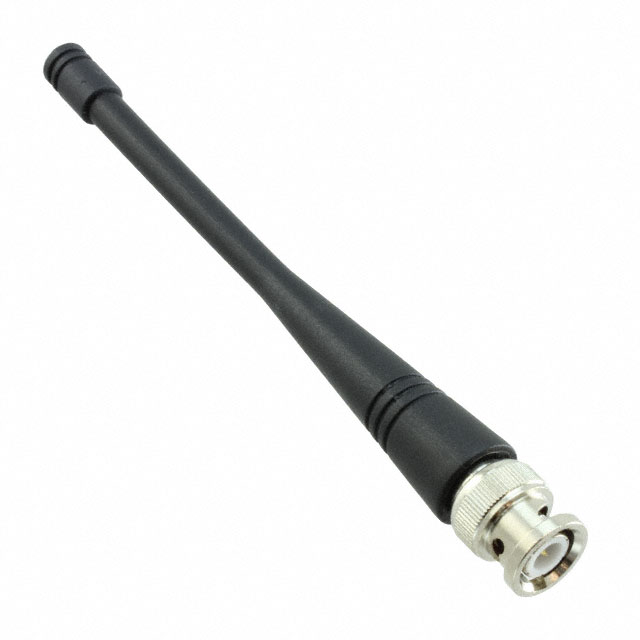

Siretta DELTA12C/X/BNCM/S/S/17	1	General ISM	915 MHz	3 dBi	Connector Mount	2	UHF	5.118 in 5.906 in	130 mm 150 mm	ISM	Whip Straight	50 W	1 GHz	300 MHz	BNC Male
