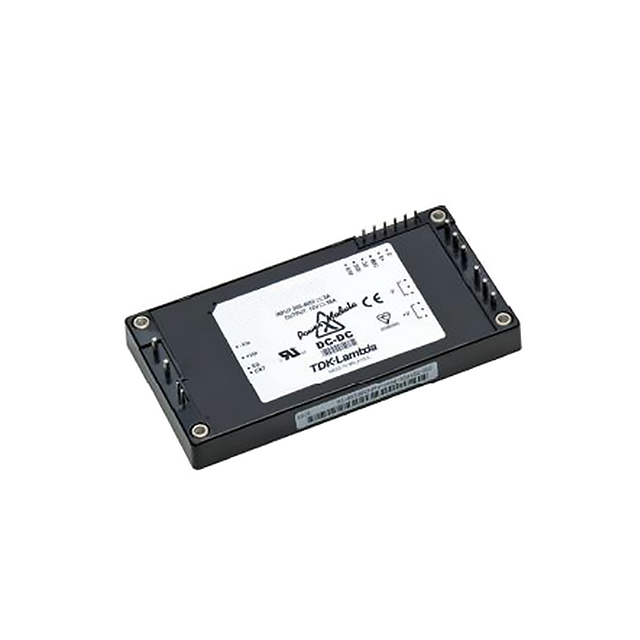

PAF450 Series
Manufacturer: TDK Corporation
Beta
⌘K
DC DC CONVERTER 48V 450W
| Part | Power (Watts) | Efficiency | Voltage - Input (Max) [Max] | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Control Features | Features | Type | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Current - Output (Max) [Max] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Mounting Type | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 450 W | 91 % | 400 VDC | 1 | -40 C | 100 °C | ITE (Commercial) | Active Low Enable | OCP OVP Remote On/Off | Isolated Module | 14-DIP Module | 2.4 " | 4.65 " | 118 mm | 27.5 mm | 1.08 " | 61 mm | 9.5 A | 48 V | 200 V | Through Hole | 3000 V |
TDK Corporation | 450 W | 91 % | 400 VDC | 1 | -40 C | 100 °C | ITE (Commercial) | Active Low Enable | OCP OVP Remote On/Off | Isolated Module | 14-DIP Module | 2.4 " | 4.65 " | 118 mm | 27.5 mm | 1.08 " | 61 mm | 19 A | 24 V | 200 V | Through Hole | 3000 V |
TDK Corporation | 450 W | 91 % | 400 VDC | 1 | -40 C | 100 °C | ITE (Commercial) | Active Low Enable | OCP OVP Remote On/Off | Isolated Module | 14-DIP Module | 2.4 " | 4.65 " | 118 mm | 27.5 mm | 1.08 " | 61 mm | 16.5 A | 28 V | 200 V | Through Hole | 3000 V |
TDK Corporation | 450 W | 91 % | 400 VDC | 1 | -40 C | 100 °C | ITE (Commercial) | Active Low Enable | OCP OVP Remote On/Off | Isolated Module | 14-DIP Module | 2.4 " | 4.65 " | 118 mm | 27.5 mm | 1.08 " | 61 mm | 9.5 A | 48 V | 200 V | Through Hole | 3000 V |
TDK Corporation | 450 W | 91 % | 400 VDC | 1 | -40 C | 100 °C | ITE (Commercial) | Active Low Enable | OCP OVP Remote On/Off | Isolated Module | 14-DIP Module | 2.4 " | 4.65 " | 118 mm | 27.5 mm | 1.08 " | 61 mm | 19 A | 24 V | 200 V | Through Hole | 3000 V |
