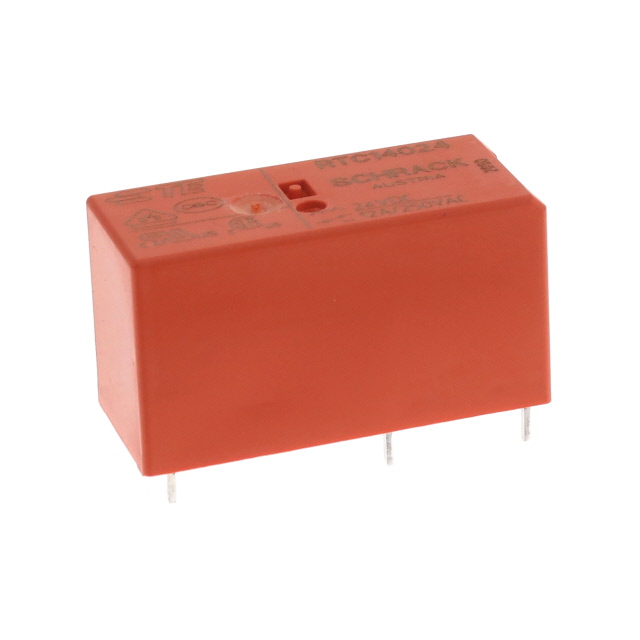

RTC140 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPDT 12A 24V
| Part | Coil Resistance | Contact Form | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] | Coil Current | Coil Type | Termination Style | Must Operate Voltage | Load - Max Switching | Release Time | Must Release Voltage | Seal Rating | Operate Time | Mounting Type | Coil Voltage | Contact Material | Relay Type | Coil Insulation | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1440 Ohms | SPDT (1 Form C) | 12 A | 85 °C | -40 C | 400 VAC | 16.7 mA | Non Latching | PC Pin | 16.8 VDC | 4800 VA | 6 ms | 2.4 VDC | Sealed - Fully | 8 ms | Through Hole | 24 VDC | Silver Nickel (AgNi) | General Purpose | Class F | CQC CSA cURus VDE |
