CYW20730 Series

Manufacturer: INFINEON

Catalog

RF TRANSCEIVER, 2.402 TO 2.48GHZ ROHS COMPLIANT: YES

Part	Data Rate (Max) [Max]	GPIO	Voltage - Supply	Type	Current - Receiving	Frequency	RF Family/Standard	Package / Case	Sensitivity	Serial Interfaces	Power - Output	Protocol	Supplier Device Package	Mounting Type	Current - Transmitting	Operating Temperature [Max]	Current - Transmitting [Min]	Current - Transmitting [Max]	Modulation

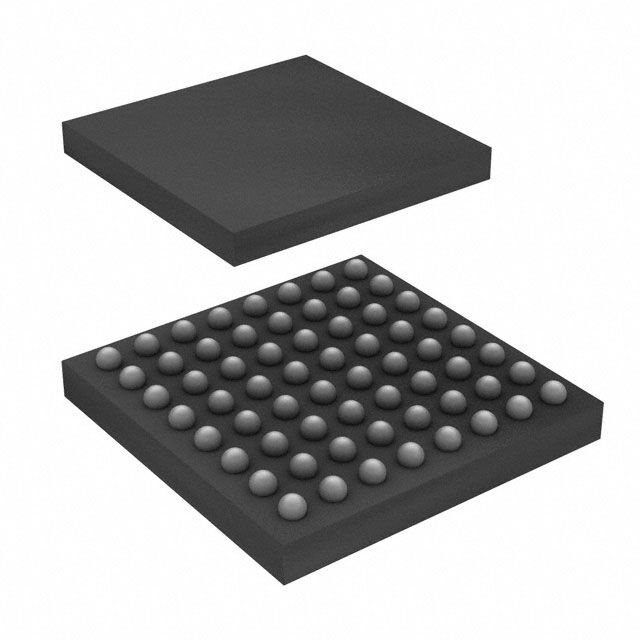

INFINEON CYW20730A2KFBGT	1 Mbps	14	3.8 V	TxRx + MCU	26.6 mA	2.4 GHz	Bluetooth	64-VFBGA	-88 dBm	I2C SPI UART	4 dBm	Bluetooth v3.0	64-FBGA (7x7)	Surface Mount	24 mA	70 °C
INFINEON CYW20730A2KFBG	1 Mbps	4	1.2 V	TxRx + MCU	26.6 mA	2.4 GHz	Bluetooth	64-VFBGA	-88 dBm	I2C SPI UART	4 dBm	Bluetooth v3.0	64-FBGA (7x7)	Surface Mount		70 °C	19 mA	24 mA	GFSK
INFINEON CYW20730A2KML2GT	1 Mbps	14	3.8 V	TxRx + MCU	26.6 mA	2.4 GHz	Bluetooth	32-VFQFN Exposed Pad	-88 dBm	I2C SPI UART	4 dBm	Bluetooth v3.0	32-QFN (5x5)	Surface Mount	24 mA	70 °C
INFINEON CYW20730A1KFBGT	1 Mbps	4	1.2 V	TxRx + MCU	26.6 mA	2.4 GHz	Bluetooth	64-VFBGA	-88 dBm	I2C SPI UART	4 dBm	Bluetooth v3.0	64-FBGA (7x7)	Surface Mount		70 °C	19 mA	24 mA	GFSK
INFINEON CYW20730A1KMLGT	1 Mbps	14	3.8 V	TxRx + MCU	26.6 mA	2.4 GHz	Bluetooth	40-VFQFN Exposed Pad	-88 dBm	I2C SPI UART	4 dBm	Bluetooth v3.0	40-QFN (6x6)	Surface Mount	24 mA	70 °C
INFINEON CYW20730A1KMLG	1 Mbps	4	1.2 V	TxRx + MCU	26.6 mA	2.4 GHz	Bluetooth	40-VFQFN Exposed Pad	-88 dBm	I2C SPI UART	4 dBm	Bluetooth v3.0	40-QFN (6x6)	Surface Mount		70 °C	19 mA	24 mA	GFSK
INFINEON CYW20730A2KFBG	1 Mbps	4	1.2 V	TxRx + MCU	26.6 mA	2.4 GHz	Bluetooth	64-VFBGA	-88 dBm	I2C SPI UART	4 dBm	Bluetooth v3.0	64-FBGA (7x7)	Surface Mount		70 °C	19 mA	24 mA	GFSK
