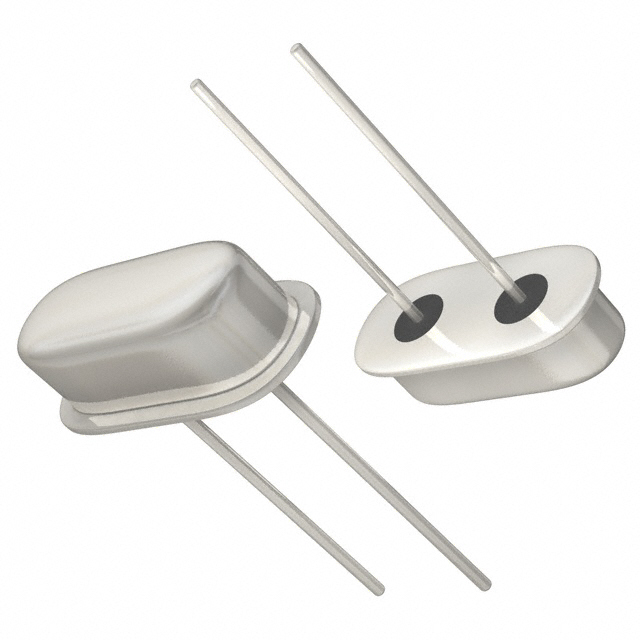

ABL Series

Catalog

CRYSTALS XTAL HC-49/US 3.5MM HEIGHT 16.384MHZ TOL +/-10PPM STAB +/-10PPM -20°C ~ 70°C 18PF 40 OHMS

Part	Frequency	Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Mounting Type	Load Capacitance	Size / Dimension [x]	Size / Dimension [y]	Operating Mode	Frequency Tolerance	Frequency Stability	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Abracon LLC ABL-16.384MHZ-B1U-T	16.384 MHz	MHz Crystal	HC-49/US	-20 ░C	70 °C	HC-49/US	Through Hole	18 pF	0.453 in 11.5 mm	0.197 in 5 mm	Fundamental	10 ppm	10 ppm	40 Ohms	0.138 "	3.5 mm
Abracon LLC ABL-40.000MHZ-B2	40 MHz	MHz Crystal	HC-49/US	-20 ░C	70 °C	HC-49/US	Through Hole	18 pF	0.453 in 11.5 mm	0.197 in 5 mm	3rd Overtone	20 ppm	50 ppm	80 Ohm	0.138 "	3.5 mm
Abracon LLC ABL-8.912MHZ-B4Y		MHz Crystal	HC-49/US	-20 ░C	70 °C	HC-49/US	Through Hole	18 pF	0.453 in 11.5 mm	0.197 in 5 mm	Fundamental	30 ppm	30 ppm	80 Ohm	0.138 "	3.5 mm
Abracon LLC ABL-12.288MHZ-B1U-T	12.288 MHz	MHz Crystal	HC-49/US	-20 ░C	70 °C	HC-49/US	Through Hole	18 pF	0.453 in 11.5 mm	0.197 in 5 mm	Fundamental	10 ppm	10 ppm	50 Ohms	0.138 "	3.5 mm
Abracon LLC ABL-4.096MHZ-B2	4.096 MHz	MHz Crystal	HC-49/US	-20 ░C	70 °C	HC-49/US	Through Hole	18 pF	0.453 in 11.5 mm	0.197 in 5 mm	Fundamental	20 ppm	50 ppm	180 Ohms	0.138 "	3.5 mm
Abracon LLC ABL-11.2896MHZ-B4Y-T	11.2896 MHz	MHz Crystal	HC-49/US	-20 ░C	70 °C	HC-49/US	Through Hole	18 pF	0.453 in 11.5 mm	0.197 in 5 mm	Fundamental	30 ppm	30 ppm	50 Ohms	0.138 "	3.5 mm
Abracon LLC ABL-16.384MHZ-B2	16.384 MHz	MHz Crystal	HC-49/US	-20 ░C	70 °C	HC-49/US	Through Hole	18 pF	0.453 in 11.5 mm	0.197 in 5 mm	Fundamental	20 ppm	50 ppm	40 Ohms	0.138 "	3.5 mm
Abracon LLC ABL-11.0592MHZ-B4Y-T	11.0592 MHz	MHz Crystal	HC-49/US	-20 ░C	70 °C	HC-49/US	Through Hole	18 pF	0.453 in 11.5 mm	0.197 in 5 mm	Fundamental	30 ppm	30 ppm	50 Ohms	0.138 "	3.5 mm
Abracon LLC ABL-4.000MHZ-B4Y-T	4 MHz	MHz Crystal	HC-49/US	-20 ░C	70 °C	HC-49/US	Through Hole	18 pF	0.453 in 11.5 mm	0.197 in 5 mm	Fundamental	30 ppm	30 ppm	180 Ohms	0.138 "	3.5 mm
