FMA1-12025 Series
Manufacturer: Qualtek
Beta
⌘K

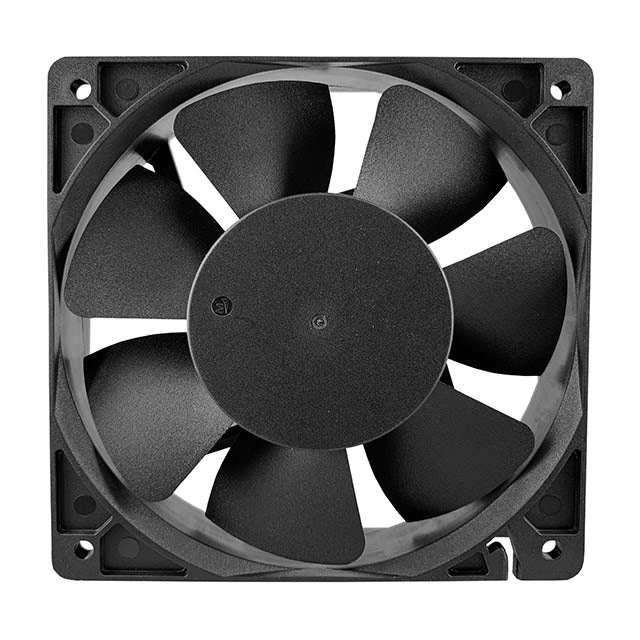

EC FAN, 120X120X25MM, 2-BALL BEA
| Part | Material - Frame | Current Rating (Amps) | Material - Blade | Lifetime @ Temp. | Termination | Voltage - Rated [Max] | Voltage - Rated [Min] | Power (Watts) | Width [y] | Operating Temperature [Min] | Operating Temperature [Max] | Features | Static Pressure | Static Pressure | Air Flow | Air Flow | Ingress Protection | Noise | Size / Dimension [z] | Size / Dimension [x] | RPM | Approval Agency | Fan Type | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | Plastic | 100 mA | Plastic | 70000 Hrs | 2 Wire Leads | 240 VAC | 100 VAC | 6 W | 25 mm | -20 ░C | 70 °C | Electronic Commutation (EC) | 0.175 in H2O | 43.7 Pa | 2.22 m³/min | 79.4 CFM | IP54 - Dust Protected Water Resistant | 44.8 dB(A) | 120 mm | 120 mm | 3000 RPM | CE cURus | Tubeaxial | Ball |
