AD5371 Series

Catalog

40-CHANNEL, 14-BIT, SERIAL INPUT, VOLTAGE OUTPUT DAC

Part	Differential Output	Output Type	DNL (Max) (LSB)	INL (Max) (LSB)	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Data Interface	Operating Temperature (Min)	Operating Temperature (Max)	Number of D/A Converters	Package / Case	Mounting Type	Package Name	Package Width	Package Length	Voltage - Supply, Analog (Range 2 Max)	Voltage - Supply, Analog (Range 1 Min)	Voltage - Supply, Analog (Range 2 Min)	Voltage - Supply, Analog (Range 1 Max)	Reference Type	Settling Time	Number of Bits	Architecture	Supplied Contents	Utilized IC / Part	Sampling Rate (Per Second)	DAC Type	Contents	Number of DAC's
Analog Devices Inc./Maxim Integrated AD5371BBCZ	No	Voltage - Buffered	1 LSB	1 LSB	5.5 V	2.5 V	DSP SPI	-40 °C	85 °C	40 count	100-LFBGA CSPBGA	Surface Mount	100-CSPBGA	10 mm	10 mm	16.5 V	9 V	-4.5 V	16.5 V	External	30 µs	14 bits	String DAC
Analog Devices Inc./Maxim Integrated AD5371BSTZ-REEL	No	Voltage - Buffered	1 LSB	1 LSB	5.5 V	2.5 V	DSP SPI	-40 °C	85 °C	40 count	80-LQFP	Surface Mount	80-LQFP	12 mm	12 mm	16.5 V	9 V	-4.5 V	16.5 V	External	30 µs	14 bits	String DAC

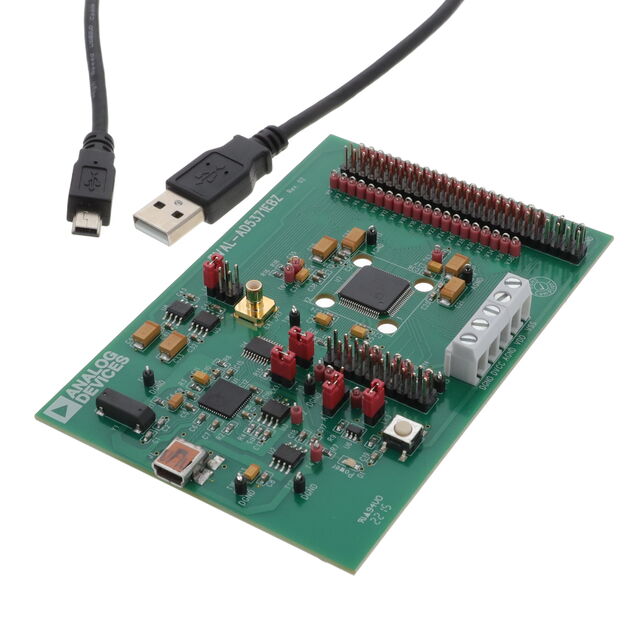

Analog Devices Inc./Maxim Integrated EVAL-AD5371EBZ							Serial														20 µs	14 bits		Board(s)	AD5371	540 kHz	Voltage	Board	40
Analog Devices Inc./Maxim Integrated AD5371BSTZ	No	Voltage - Buffered	1 LSB	1 LSB	5.5 V	2.5 V	DSP SPI	-40 °C	85 °C	40 count	80-LQFP	Surface Mount	80-LQFP	12 mm	12 mm	16.5 V	9 V	-4.5 V	16.5 V	External	30 µs	14 bits	String DAC
