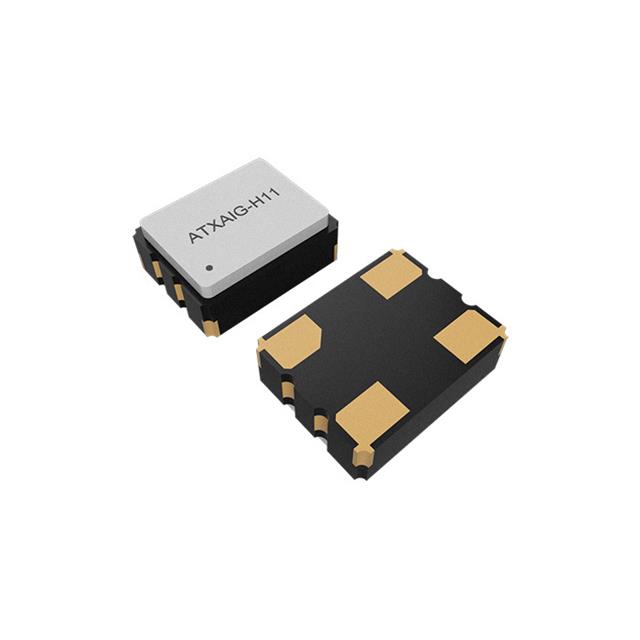

ATXAIG-H11 Series

Catalog

TCXO OSCILLATORS 3225 4-SMD TCXO 24 MHZ 2.5PPM -40C - 85C CMOS 1.68V - 3.63V

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Frequency	Frequency Stability	Output	Function	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Base Resonator [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Ratings	Current - Supply (Max) [Max]
Abracon LLC ATXAIG-H11-F-24.000MHz-F25-T3	2.5 mm	0.098 in	3.2 mm	0.126 "	4-SMD No Lead	24 MHz	2.5 ppm	CMOS	Enable/Disable	1.2 mm	0.047 "	Crystal	85 °C	-40 C	TCXO	Surface Mount	3.2	2.5	4-SMD	3.63 V	1.68 V	AEC-Q200	10 mA
Abracon LLC ATXAIG-H11-F-26.000MHz-F25-T3	2.5 mm	0.098 in	3.2 mm	0.126 "	4-SMD No Lead	26 MHz	2.5 ppm	CMOS	Enable/Disable	1.2 mm	0.047 "	Crystal	85 °C	-40 C	TCXO	Surface Mount	3.2	2.5	4-SMD	3.63 V	1.68 V	AEC-Q200	10 mA
