PS40-102 Series

Manufacturer: Nidec Components Corporation

Catalog

PRESSURE SWITCHES

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure	Operating Pressure	Output Type	Port Size	Features	Pressure Type	Package / Case	Termination Style	Port Style	Output [Min]	Output [Max]	Accuracy
Nidec Components Corporation PS40-102V-NAR	-20 C	70 °C	30 VDC	10.8 VDC	Industrial Automation	200 kPa	29.01 PSI	100 kPa	14.5 PSI	Analog Voltage	Male - M5	Temperature Compensated	Vented Gauge	Module	Connector	Threaded	1 V	5 V	3 %
Nidec Components Corporation PS40-102G-PWR	-20 C	70 °C	30 VDC	10.8 VDC	Industrial Automation	200 kPa	29.01 PSI	100 kPa	14.5 PSI	Analog Voltage	Male - M5	Temperature Compensated	Gauge	Module	Connector	Threaded	1 V	5 V	3 %
Nidec Components Corporation PS40-102V-PAR	-20 C	70 °C	30 VDC	10.8 VDC	Industrial Automation	200 kPa	29.01 PSI	100 kPa	14.5 PSI	Analog Voltage	Male - M5	Temperature Compensated	Vented Gauge	Module	Connector	Threaded	1 V	5 V	3 %
Nidec Components Corporation PS40-102G-PWM	-20 C	70 °C	30 VDC	10.8 VDC	Industrial Automation	200 kPa	29.01 PSI	100 kPa	14.5 PSI	Analog Voltage	Female - M5	Temperature Compensated	Gauge	Module	Connector	Threaded	1 V	5 V	3 %
Nidec Components Corporation PS40-102G-NAR	-20 C	70 °C	30 VDC	10.8 VDC	Industrial Automation	200 kPa	29.01 PSI	100 kPa	14.5 PSI	Analog Voltage	Male - M5	Temperature Compensated	Gauge	Module	Connector	Threaded	1 V	5 V	3 %
Nidec Components Corporation PS40-102G-PAM	-20 C	70 °C	30 VDC	10.8 VDC	Industrial Automation	200 kPa	29.01 PSI	100 kPa	14.5 PSI	Analog Voltage	Female - M5	Temperature Compensated	Gauge	Module	Connector	Threaded	1 V	5 V	3 %
Nidec Components Corporation PS40-102V-PWM	-20 C	70 °C	30 VDC	10.8 VDC	Industrial Automation	200 kPa	29.01 PSI	100 kPa	14.5 PSI	Analog Voltage	Female - M5	Temperature Compensated	Vented Gauge	Module	Connector	Threaded	1 V	5 V	3 %

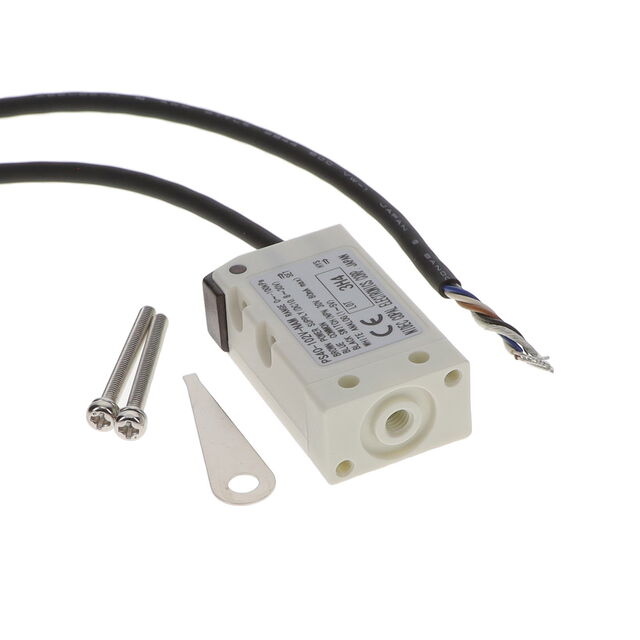

Nidec Components Corporation PS40-102V-NAM	-20 C	70 °C	30 VDC	10.8 VDC	Industrial Automation	200 kPa	29.01 PSI	100 kPa	14.5 PSI	Analog Voltage	Female - M5	Temperature Compensated	Vented Gauge	Module	Connector	Threaded	1 V	5 V	3 %
Nidec Components Corporation PS40-102G-PAR	-20 C	70 °C	30 VDC	10.8 VDC	Industrial Automation	200 kPa	29.01 PSI	100 kPa	14.5 PSI	Analog Voltage	Male - M5	Temperature Compensated	Gauge	Module	Connector	Threaded	1 V	5 V	3 %
Nidec Components Corporation PS40-102G-NAM	-20 C	70 °C	30 VDC	10.8 VDC	Industrial Automation	200 kPa	29.01 PSI	100 kPa	14.5 PSI	Analog Voltage	Female - M5	Temperature Compensated	Gauge	Module	Connector	Threaded	1 V	5 V	3 %
