850-20 Series
Manufacturer: Qualtek
Beta
⌘K

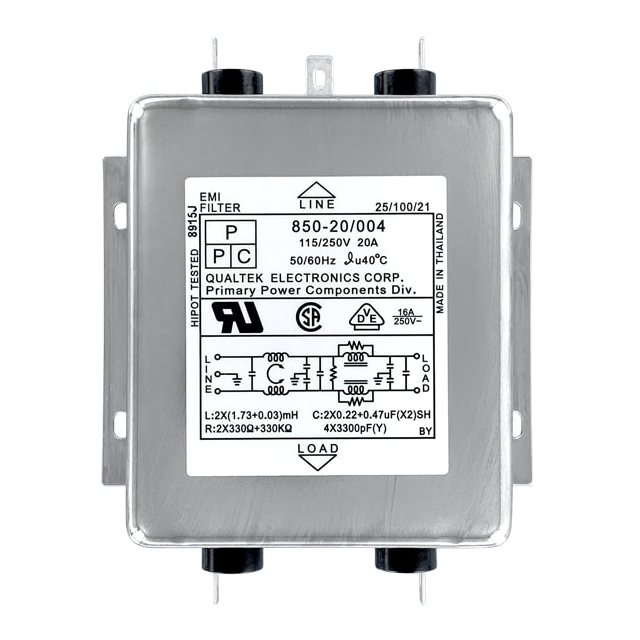

LINE FILTER 115V/250VAC 20A CHAS
| Part | Applications | Approval Agency | Mounting Type | Configuration | Voltage - Rated AC | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Filter Type | Current | Frequency - Operating [Max] | Frequency - Operating [Min] | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | General Purpose | CSA UR VDE | Chassis Mount | Two Stage | 115 V 250 V | 85 °C | -25 °C | Quick Connect | Single Phase | 20 A | 60 Hz | 50 Hz | 1.73 mH 30 µH |
