3020-14 Series
Manufacturer: CNC Tech
Beta
⌘K
CONN HEADER R/A 14POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Mounting Type | Shrouding | Features | Voltage Rating | Style | Insulation Material | Number of Positions | Contact Finish - Post | Number of Positions Loaded | Number of Rows [custom] | Connector Type | Termination | Current Rating (Amps) | Contact Type | Insulation Height [z] | Insulation Height [z] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Mating | Insulation Color | Contact Material | Fastening Type | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Insulation Height | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

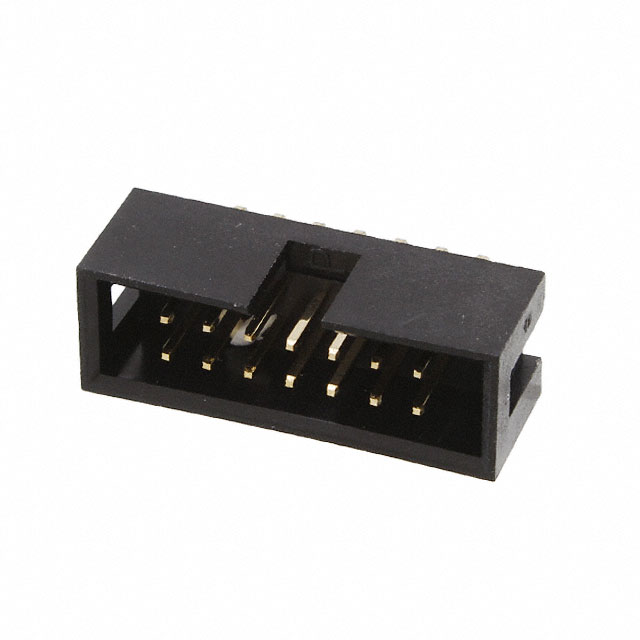

 CNC Tech | Flash | 0.118 in | 3 mm | Flash | 0.1 " | 2.54 mm | Right Angle Through Hole | Shrouded - 4 Wall | Keying Slot | 250 VAC | Board to Cable/Wire | Nylon 9T Polyamide (PA9T) | 14 | Gold | All | 2 | Header | Solder | 3 A | Male Pin | 8.8 mm | 0.346 in | 0.1 in | 2.54 mm | Gold | Black | Brass | Push-Pull | UL94 V-0 | -40 C | 105 ░C | Square | |||||

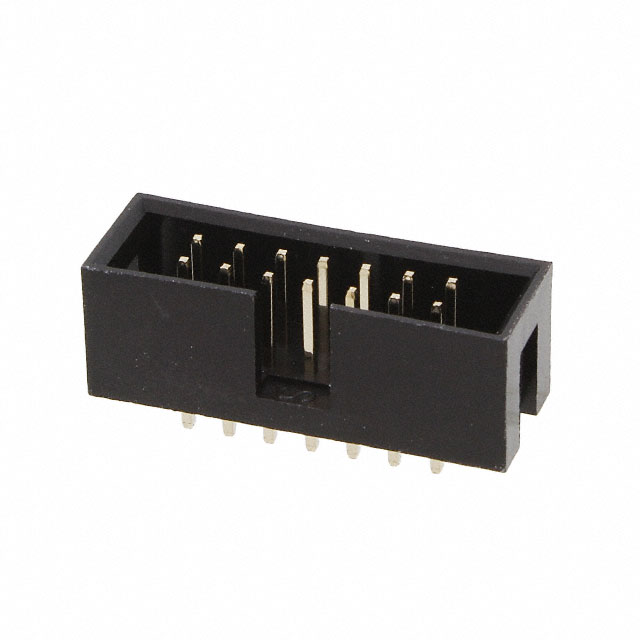

 CNC Tech | Flash | 0.118 in | 3 mm | Flash | 0.1 " | 2.54 mm | Through Hole | Shrouded - 4 Wall | Keying Slot | 250 VAC | Board to Cable/Wire | Nylon 9T Polyamide (PA9T) | 14 | Gold | All | 2 | Header | Solder | 3 A | Male Pin | 0.1 in | 2.54 mm | Gold | Black | Brass | Push-Pull | UL94 V-0 | -40 C | 105 ░C | Square | 0.354 in | 9 mm | |||||
 CNC Tech | 0.118 in | 3 mm | 0.1 " | 2.54 mm | Right Angle Through Hole | Shrouded - 4 Wall | Board to Cable/Wire | Nylon 6T Polyamide (PA6T) | 14 | All | 2 | Header | Solder | 3 A | Male Pin | 0.1 in | 2.54 mm | Gold | Brass | Push-Pull | UL94 V-0 | -40 C | 105 ░C | Square | 0.35 in | 8.89 mm | 0.76 Ám | 30 Áin | |||||||||

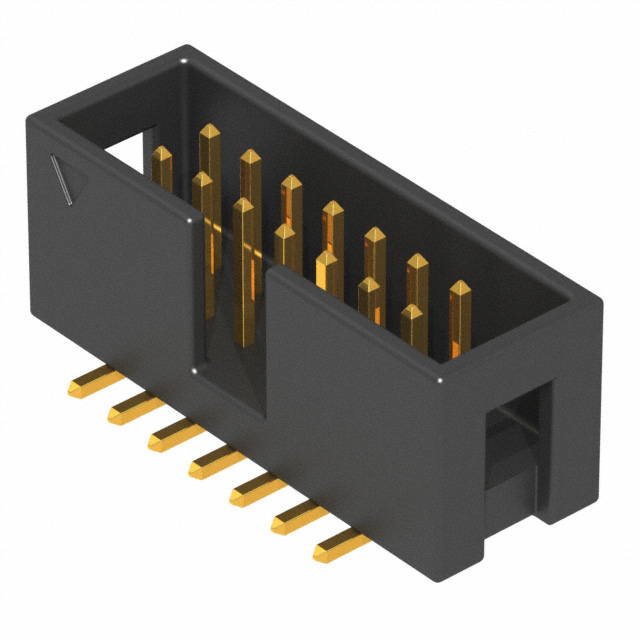

 CNC Tech | Flash | Flash | 0.1 " | 2.54 mm | Surface Mount | Shrouded - 4 Wall | Keying Slot | Board to Cable/Wire | Nylon 9T Polyamide (PA9T) | 14 | Gold | All | 2 | Header | Solder | 3 A | Male Pin | 0.1 in | 2.54 mm | Gold | Black | Brass | Push-Pull | UL94 V-0 | -40 C | 105 ░C | Square | 0.354 in | 9 mm | ||||||||
 CNC Tech | Flash | Flash | 0.1 " | 2.54 mm | Surface Mount | Shrouded - 4 Wall | Keying Slot Pick and Place | Board to Cable/Wire | Nylon 9T Polyamide (PA9T) | 14 | Gold | All | 2 | Header | Solder | 3 A | Male Pin | 0.1 in | 2.54 mm | Gold | Black | Copper Alloy | Push-Pull | UL94 V-0 | -40 C | 105 ░C | Square | 0.354 in | 9 mm |
