2EDL8034 Series
Manufacturer: INFINEON
Beta
⌘K
THE 2EDL8034G4C IS DESIGNED TO DRIVE BOTH HIGH-SIDE AND LOW-SIDE MOSFETS IN A HALF-BRIDGE CONFIGURATION.
| Part | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Mounting Type | Input Type | High Side Voltage - Max (Bootstrap) [Max] | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Channel Type | Gate Type | Driven Configuration | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Number of Drivers | Voltage - Supply [Min] | Voltage - Supply [Max] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

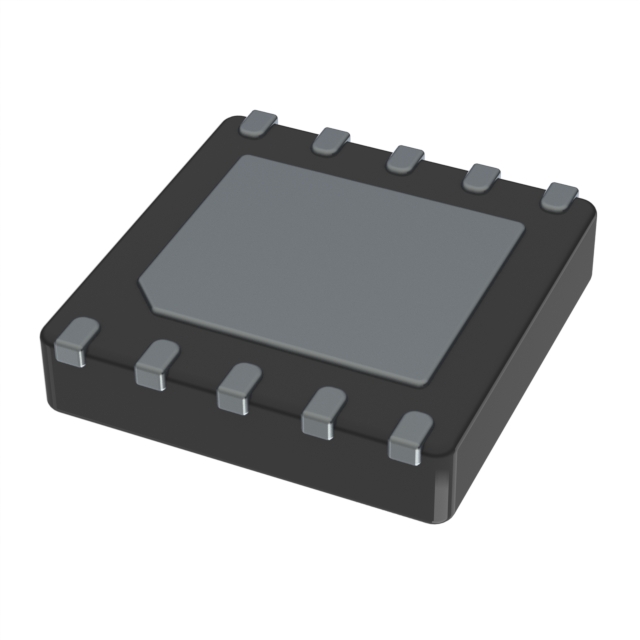

 INFINEON | 6 A | 4 A | Surface Mount | Non-Inverting | 120 V | 4.4 ns | 4.6 ns | Independent | MOSFET (N-Channel P-Channel) | Half-Bridge | -40 C | 125 °C | 10-VDFN Exposed Pad | 2 | 8 V | 17 V | PG-VDSON-10-2 |
