RDS-4S Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

ENCODING SWITCH; DEC/BCD; POS: 4; SMT; RCONT MAX: 100MΩ; LCP; IP67

Part	Mounting Type	Features	Current Rating (Amps)	Actuator Level	Termination Style	Number of Positions	Electrical Life	Contact Finish	Body Material	Height Above Board [z]	Height Above Board [z]	Circuit	Voltage Rating	Pitch	Pitch	Contact Material	Actuator Type	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch
Same Sky (Formerly CUI Devices) RDS-4S-7229-C-SMT	Surface Mount	IP67 - Dust Tight Waterproof	100 mA	Flush Recessed	Gull Wing	4	10000 Cycles	Gold	Liquid Crystal Polymer (LCP)	0.118 in	3 mm	BCD	50 V	2.54 mm	0.1 "	Copper Alloy	Rotary for Tool	7.2 mm	0.283 in	85 °C	-40 C
Same Sky (Formerly CUI Devices) RDS-4S-7229-A-JSMT-TR	Surface Mount	IP67 - Dust Tight Waterproof	100 mA	Flush Recessed	J Lead	4	10000 Cycles	Gold	Liquid Crystal Polymer (LCP)	0.118 in	3 mm	BCD	50 V	2.54 mm	0.1 "	Copper Alloy	Rotary for Tool	7.2 mm	0.283 in	85 °C	-40 C

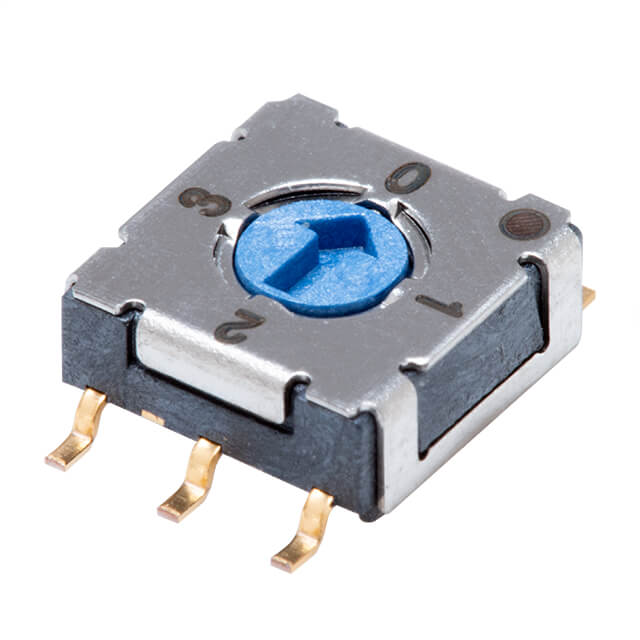

Same Sky (Formerly CUI Devices) RDS-4S-7229-A-SMT	Surface Mount	IP67 - Dust Tight Waterproof	100 mA	Flush Recessed	Gull Wing	4		Gold		0.118 in	3 mm	BCD	50 V	2.54 mm	0.1 "	Copper Alloy	Rotary for Tool			85 °C	-40 C
Same Sky (Formerly CUI Devices) RDS-4S-7229-S-SMT	Surface Mount	IP67 - Dust Tight Waterproof	100 mA	Raised	Gull Wing	4	10000 Cycles	Gold	Liquid Crystal Polymer (LCP)	0.236 in	6 mm	BCD	50 V	2.54 mm	0.1 "	Copper Alloy	Rotary with Shaft	7.2 mm	0.283 in	85 °C	-40 C
Same Sky (Formerly CUI Devices) RDS-4S-7229-S-ASMT-TR	Right Angle Surface Mount	IP67 - Dust Tight Waterproof	100 mA	Raised	Gull Wing	4		Gold		0.291 in	7.4 mm	BCD	50 V	1.27 mm		Copper Alloy	Rotary with Shaft			85 °C	-40 C	0.05 "	Half
Same Sky (Formerly CUI Devices) RDS-4S-7229-R-JSMT	Surface Mount	IP67 - Dust Tight Waterproof	100 mA	Raised	J Lead	4	10000 Cycles	Gold	Liquid Crystal Polymer (LCP)	0.236 in	6 mm	BCD	50 V	2.54 mm	0.1 "	Copper Alloy	Rotary with Shaft	7.2 mm	0.283 in	85 °C	-40 C
Same Sky (Formerly CUI Devices) RDS-4S-7229-C-D	Through Hole	IP67 - Dust Tight Waterproof	100 mA	Flush Recessed	PC Pin	4		Gold		0.114 in	2.9 mm	BCD	50 V	2.54 mm	0.1 "	Copper Alloy	Rotary for Tool			85 °C	-40 C
Same Sky (Formerly CUI Devices) RDS-4S-7229-R-SMT-TR	Surface Mount		100 mA	Raised	Gull Wing	4	10000 Cycles	Gold	Liquid Crystal Polymer (LCP)	0.236 in	6 mm	BCD	50 V	2.54 mm	0.1 "	Copper Alloy	Rotary with Shaft	7.2 mm	0.283 in	85 °C	-40 C
Same Sky (Formerly CUI Devices) RDS-4S-7229-S-CR	Through Hole	IP67 - Dust Tight Waterproof	100 mA	Raised	PC Pin	4	10000 Cycles	Gold	Liquid Crystal Polymer (LCP)	0.232 "	5.9 mm	BCD	50 V	2.54 mm	0.1 "	Copper Alloy	Rotary with Shaft	7.2 mm	0.283 in	85 °C	-40 C

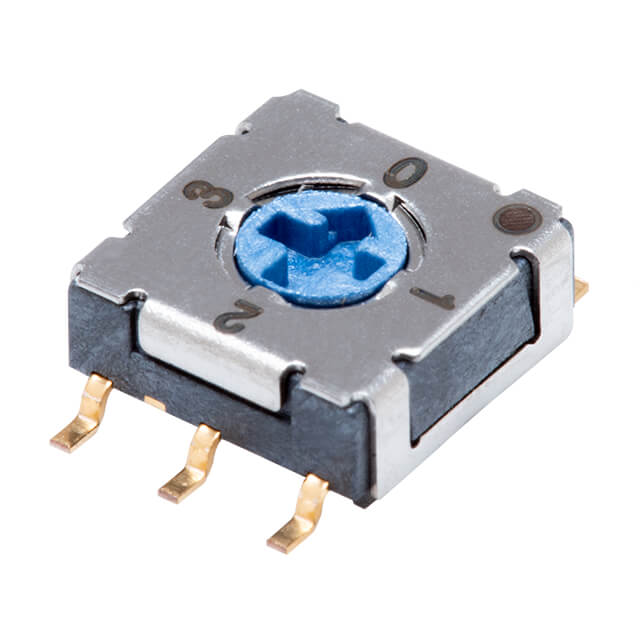

Same Sky (Formerly CUI Devices) RDS-4S-7229-C-SMT-TR	Surface Mount	IP67 - Dust Tight Waterproof	100 mA	Flush Recessed	Gull Wing	4	10000 Cycles	Gold	Liquid Crystal Polymer (LCP)	0.118 in	3 mm	BCD	50 V	2.54 mm	0.1 "	Copper Alloy	Rotary for Tool	7.2 mm	0.283 in	85 °C	-40 C
