83512 Series
Manufacturer: Belden Inc.
Beta
⌘K

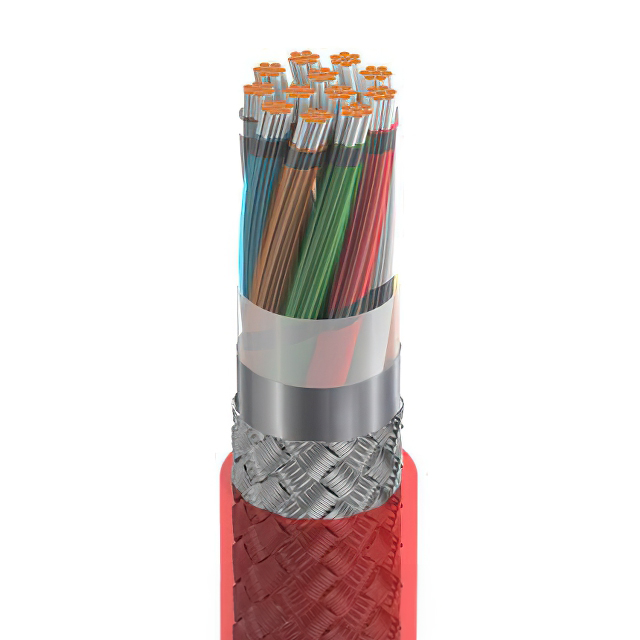

CABLE 12CON 24AWG RED SHLD
| Part | Shield Material | Shield Coverage | Shield Type | Conductor Insulation | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Usage | Wire Gauge | Ratings | Jacket Color | Voltage | Jacket (Insulation) Material | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | Braid Foil | Fluorinated Ethylene-Propylene (FEP) | 304.8 m | 1000 ft | 0.014 in | 0.356 mm | Copper Tinned | 5.26 mm | 0.207 in | -70 °C | 200 °C | Multi-Conductor | Audio Control Instrumentation | 24 AWG | UL Style CMP | Red | 300 VDC | Fluorinated Ethylene-Propylene (FEP) Plenum | 12 | 7 | 32 AWG |
