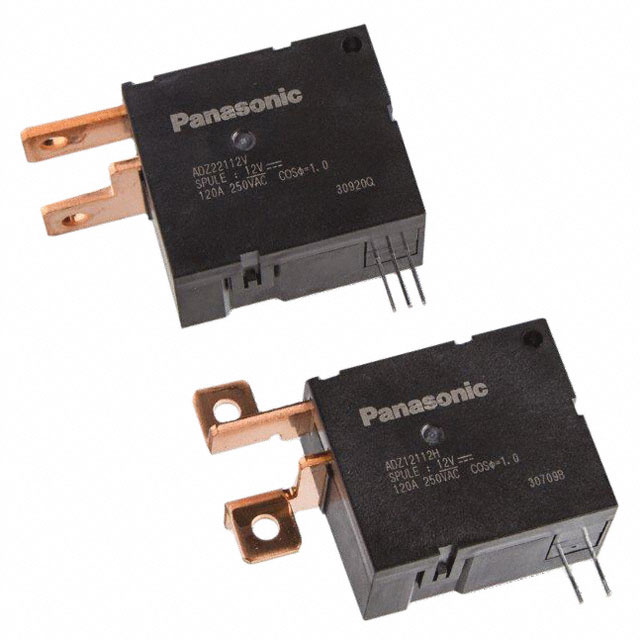

ADZ121 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
POWER RELAY 5VDC 120A SPST-NO(35X41X22)MM THT
| Part | Coil Resistance | Must Operate Voltage | Coil Current | Coil Voltage | Contact Rating (Current) | Contact Form | Relay Type | Approval Agency | Release Time | Contact Material | Load - Max Switching [Max] | Operate Time | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] | Termination Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 17.9 Ohms | 3.5 VDC | 280 mA | 5 VDC | 120 A | SPST-NO (1 Form A) | General Purpose | VDE | 20 ms | Silver Tin Oxide (AgSnO) | 33120 VA | 20 ms | Latching Single Coil | 85 °C | -40 C | 276 VAC | Solder Lug | Chassis Mount |
 Panasonic Electronic Components | 102.9 Ohms | 8.4 VDC | 116.7 mA | 12 VDC | 120 A | SPST-NO (1 Form A) | General Purpose | VDE | 20 ms | Silver Tin Oxide (AgSnO) | 33120 VA | 20 ms | Latching Single Coil | 85 °C | -40 C | 276 VAC | Solder Lug | Chassis Mount |
Panasonic Electronic Components | 411.4 Ohms | 16.8 VDC | 58.3 mA | 24 VDC | 120 A | SPST-NO (1 Form A) | General Purpose | VDE | 20 ms | Silver Tin Oxide (AgSnO) | 33120 VA | 20 ms | Latching Single Coil | 85 °C | -40 C | 276 VAC | Solder Lug | Chassis Mount |
