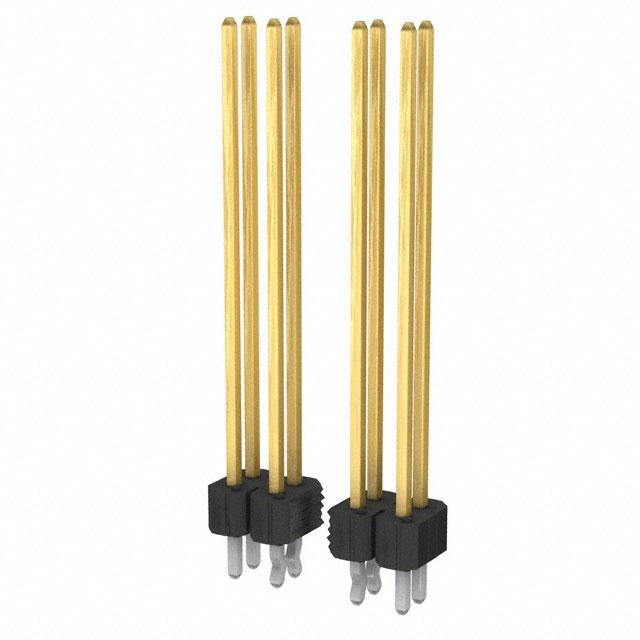

95066 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN HEADER VERT 30POS 2.54MM
| Part | Number of Positions Loaded | Mounting Type | Contact Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Color | Contact Length - Post | Contact Length - Post | Contact Shape | Number of Rows [custom] | Overall Contact Length | Overall Contact Length | Connector Type | Shrouding | Contact Finish - Mating | Material Flammability Rating | Insulation Height | Insulation Height | Contact Material | Termination | Fastening Type | Pitch - Mating | Pitch - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | All | Through Hole | Male Pin | 0.38 µm | 15 µin | Polycyclohexylenedimethylene Terephthalate (PCT) | 0.1 in | 2.54 mm | Black | 3.05 mm | 0.12 in | Square | 2 | 1.24 in | 31.5 mm | Header | Unshrouded | Gold GXT™ | UL94 V-0 | 0.1 in | 2.54 mm | Phosphor Bronze | Kinked Pin Solder | Push-Pull | 0.1 " | 2.54 mm | 30 |
