H Series

Catalog

DIN RAIL TERMINAL BLOCKS PP-H 4/ 2

Part	Color	Mounting Type	Type	Current - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - IEC	Number of Levels	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Current - IEC	Number of Positions	Termination Style	Plug Wire Entry	Positions Per Level
Phoenix Contact 3212016	Gray	Free Hanging (In-Line)	Plug Female Sockets	28 A	24 AWG	10 AWG	800 V	1	0.2 mm²	6 mm²	32 A	2	Screwless - Push-In Spring	90 °	2

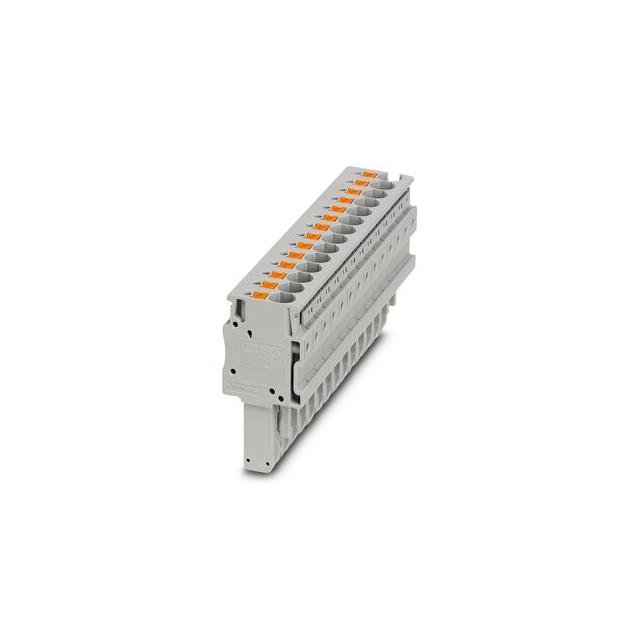

Phoenix Contact 3212093	Gray	Free Hanging (In-Line)	Plug Female Sockets	28 A	24 AWG	10 AWG	800 V	1	0.2 mm²	6 mm²	32 A	14	Screwless - Push-In Spring	90 °	14
Phoenix Contact 3212029	Gray	Free Hanging (In-Line)	Plug Female Sockets	28 A	24 AWG	10 AWG	800 V	1	0.2 mm²	6 mm²	32 A	4	Screwless - Push-In Spring	90 °	4
Phoenix Contact 3212061	Gray	Free Hanging (In-Line)	Plug Female Sockets	28 A	24 AWG	10 AWG	800 V	1	0.2 mm²	6 mm²	32 A	9	Screwless - Push-In Spring	90 °	9

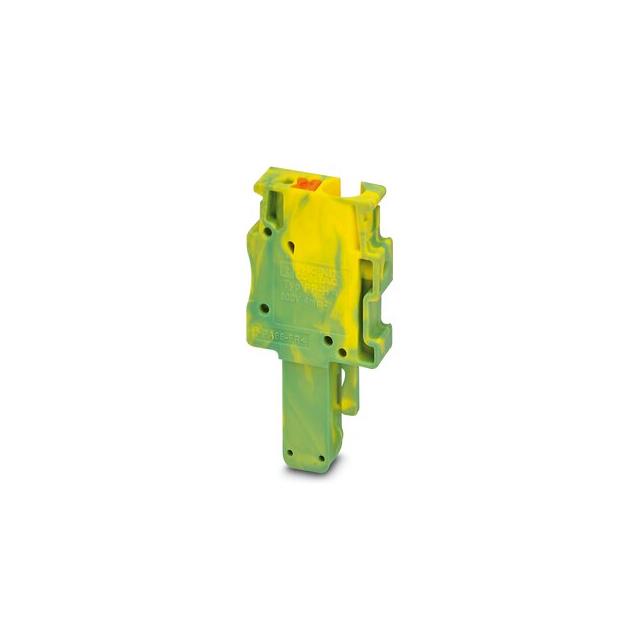

Phoenix Contact 3212088	Green Yellow	Free Hanging (In-Line)	Plug Female Sockets	28 A	24 AWG	10 AWG	800 V	1	0.2 mm²	6 mm²	32 A	1	Screwless - Push-In Spring	90 °	1
