5120.4073 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

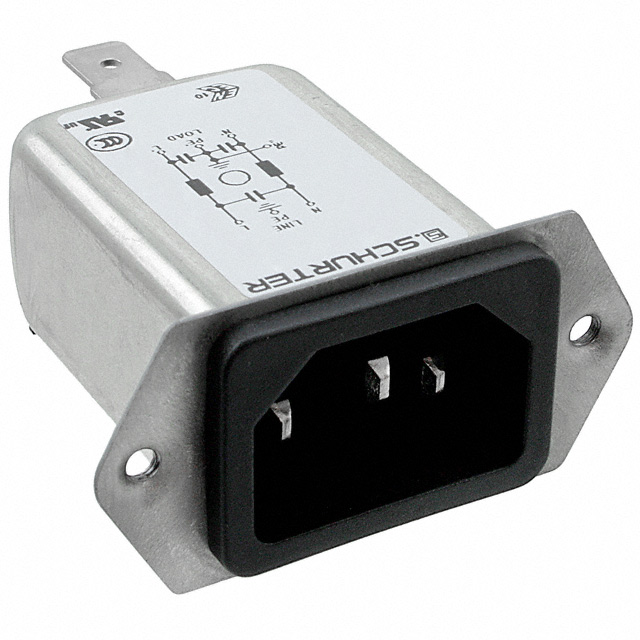

PWR ENT RCPT IEC320-C14 PNL SLDR
| Part | Connector Type | Filter Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Accomodates a Fuse | Voltage Rating - Appliance Inlet | Mounting Type | Ingress Protection | Material Flammability Rating | Termination | Current Rating - Filter | Connector Style | Approval Agency | Current Rating - Appliance Inlet | Features | Panel Thickness | Panel Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | Receptacle Male Blades | Filtered (EMI RFI) - Commercial | 30.5 mm | 22.5 mm | 250 VAC | Panel Mount Flange Through Hole Right Angle | IP40 | UL94 V-0 | Solder | 4 A | IEC 320-C14 | CCC cULus ENEC | 4 A | Shielded | 0.118 " | 3 mm |
