KRTBLSLPS1.32 Series

Catalog

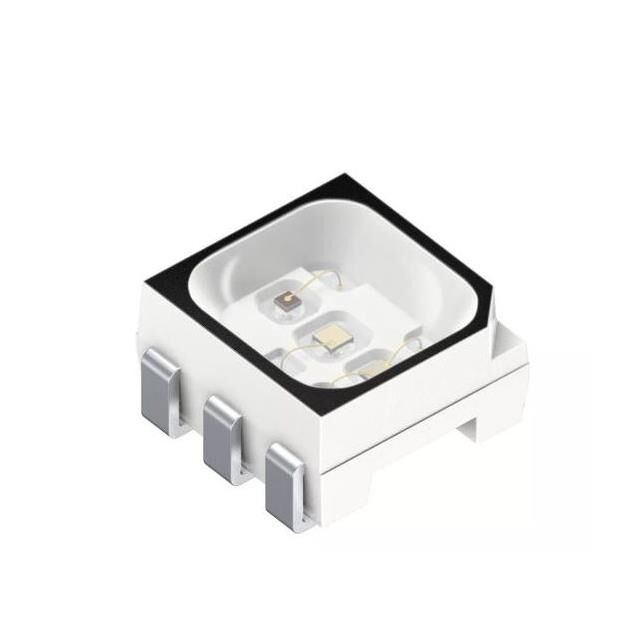

LED RGB DIFFUSED 6PLCC SMD

Part	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Dominant	Mounting Type	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Transparency	Voltage - Forward (Vf) (Typ)	Lens Style	Color	Viewing Angle	Current - Test	Package / Case	Lens Size [y]	Lens Size [x]	Configuration	Height (Max) [z]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package
ams-OSRAM USA INC. KRTBLSLPS1.32-VUVX-EQ+BTBV-JW+TWTZ-L1-OX	526 nm	462 nm	634 nm	467 nm 532 nm 621 nm	Surface Mount	457.5 mcd	1025 mcd	2351 mcd	Diffused	2.05 V 2.65 V 2.85 V	Rectangle with Flat Top	Blue Green Red	120 °	20mA Blue 20mA Green 20mA Red	6-SMD J-Lead	2.6 mm	2.8 mm	Independent	2.24 mm	3.3 mm	3.1 mm	6-PLCC
ams-OSRAM USA INC. KRTBLSLPS1.32-VU-EQ+BTBU-L8+TWTZ-L1-B-XX	526 nm	462 nm	634 nm	467 nm 532 nm 621 nm	Surface Mount	457.5 mcd	1025 mcd	2351 mcd	Diffused	2.05 V 2.65 V 2.85 V	Rectangle with Flat Top	Blue Green Red	120 °	20mA Blue 20mA Green 20mA Red	6-SMD J-Lead	2.6 mm	2.8 mm	Independent	2.24 mm	3.3 mm	3.1 mm	6-PLCC
ams-OSRAM USA INC. KRTBLSLPS1.32-VUVX-EQ+BTBV-D8+TWTZ-L1-B	526 nm	462 nm	634 nm	467 nm 532 nm 621 nm	Surface Mount	457.5 mcd	1025 mcd	2351 mcd	Diffused	2.05 V 2.65 V 2.85 V	Rectangle with Flat Top	Blue Green Red	120 °	20mA Blue 20mA Green 20mA Red	6-SMD J-Lead	2.6 mm	2.8 mm	Independent	2.24 mm	3.3 mm	3.1 mm	6-PLCC
ams-OSRAM USA INC. KRTBLSLPS1.32-VUVV-EQ+BTBU-LU+TWTZ-LS-O	526 nm	462 nm	634 nm	467 nm 532 nm 621 nm	Surface Mount	457.5 mcd	1025 mcd	2351 mcd	Diffused	2.05 V 2.65 V 2.85 V	Rectangle with Flat Top	Blue Green Red	120 °	20mA Blue 20mA Green 20mA Red	6-SMD J-Lead	2.6 mm	2.8 mm	Independent	2.24 mm	3.3 mm	3.1 mm	6-PLCC
ams-OSRAM USA INC. KRTBLSLPS1.32-VUVW-EQ+BUBV-D8+TWTZ-L1-B	526 nm	462 nm	634 nm	467 nm 532 nm 621 nm	Surface Mount	457.5 mcd	1025 mcd	2351 mcd	Diffused	2.05 V 2.65 V 2.85 V	Rectangle with Flat Top	Blue Green Red	120 °	20mA Blue 20mA Green 20mA Red	6-SMD J-Lead	2.6 mm	2.8 mm	Independent	2.24 mm	3.3 mm	3.1 mm	6-PLCC
ams-OSRAM USA INC. KRTBLSLPS1.32-VUVW-EQ+BTBV-R8+TWTZ-P1-OX	526 nm	462 nm	634 nm	467 nm 532 nm 621 nm	Surface Mount	457.5 mcd	1025 mcd	2351 mcd	Diffused	2.05 V 2.65 V 2.85 V	Rectangle with Flat Top	Blue Green Red	120 °	20mA Blue 20mA Green 20mA Red	6-SMD J-Lead	2.6 mm	2.8 mm	Independent	2.24 mm	3.3 mm	3.1 mm	6-PLCC
ams-OSRAM USA INC. KRTBLSLPS1.32-VUVX-EQ+BTBV-D8+TWTZ-L1-O	526 nm	462 nm	634 nm	467 nm 532 nm 621 nm	Surface Mount	457.5 mcd	1025 mcd	2351 mcd	Diffused	2.05 V 2.65 V 2.85 V	Rectangle with Flat Top	Blue Green Red	120 °	20mA Blue 20mA Green 20mA Red	6-SMD J-Lead	2.6 mm	2.8 mm	Independent	2.24 mm	3.3 mm	3.1 mm	6-PLCC
ams-OSRAM USA INC. KRTBLSLPS1.32-VU-EQ+AYBU-J8+TWTZ-P1-XX	526 nm	462 nm	634 nm	467 nm 532 nm 621 nm	Surface Mount	457.5 mcd	1025 mcd	2351 mcd	Diffused	2.05 V 2.65 V 2.85 V	Rectangle with Flat Top	Blue Green Red	120 °	20mA Blue 20mA Green 20mA Red	6-SMD J-Lead	2.6 mm	2.8 mm	Independent	2.24 mm	3.3 mm	3.1 mm	6-PLCC
