A6X30143 Series

Manufacturer: Siemens

Catalog

Catalog

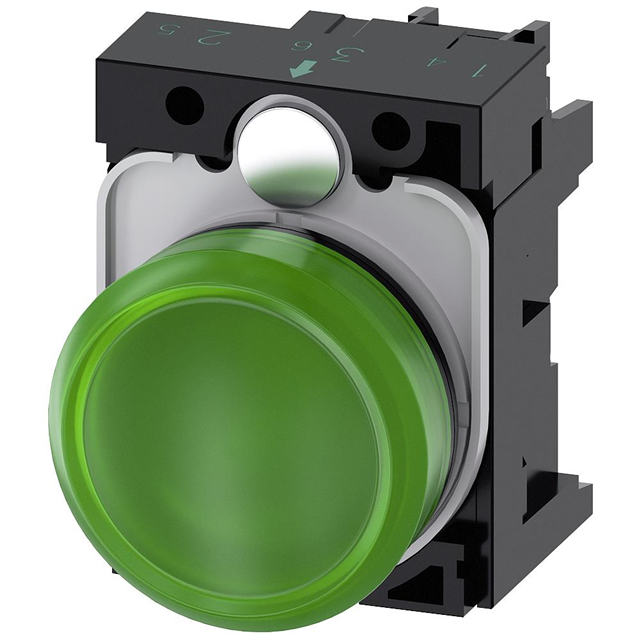

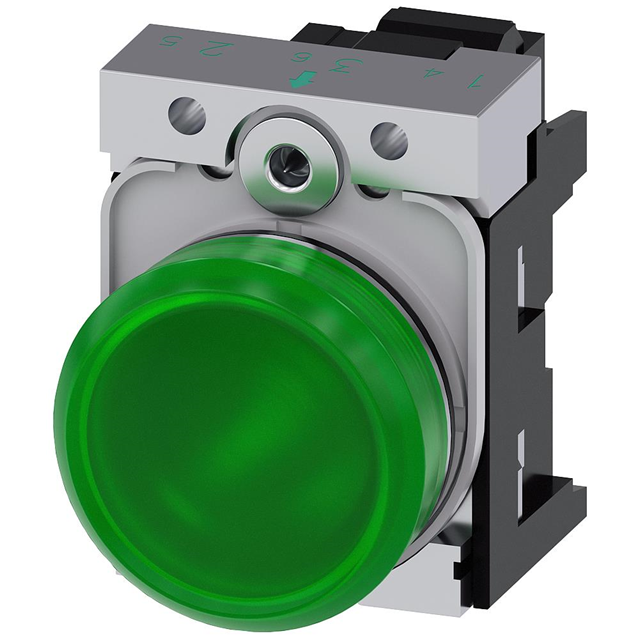

INDICATOR LIGHT. GREEN

...

Part	Millicandela Rating [Min]	Millicandela Rating [Max]	Lens Size [diameter]	Ingress Protection	Lens Style	Lens Transparency	Voltage	Ratings	Lamp Color	Panel Cutout Shape	Type	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Color	Termination Style
Siemens A6X30143132	900 mcd	1800 mcd	22 mm	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round with Flat Top	Diffused	230 V	AC	Green	Round	LED	22.3 mm	0.88 in	Green	Screw Terminal
Siemens A6X30143752	900 mcd	1400 mcd	22 mm	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round with Flat Top	Diffused	230 V	AC	Red	Round	LED	22.3 mm	0.88 in	Red	Screw Terminal
Siemens A6X30143749	900 mcd	1400 mcd	22 mm	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round with Flat Top	Diffused	230 V	AC	Red	Round	LED	22.3 mm	0.88 in	Red	Screw Terminal

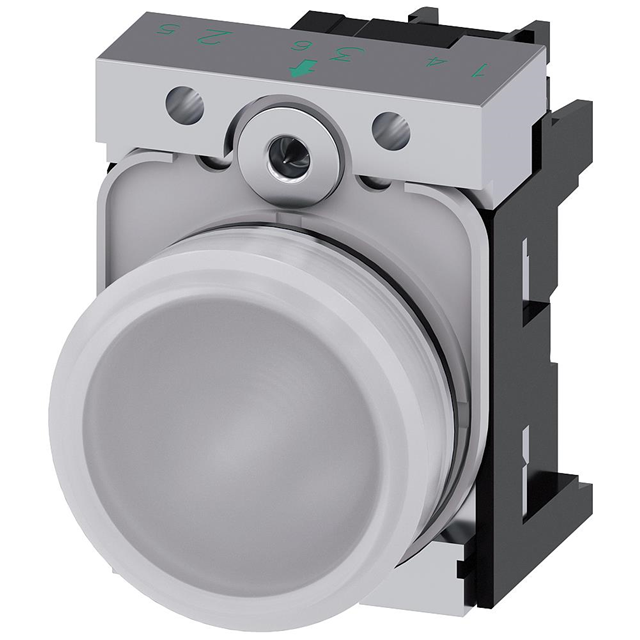

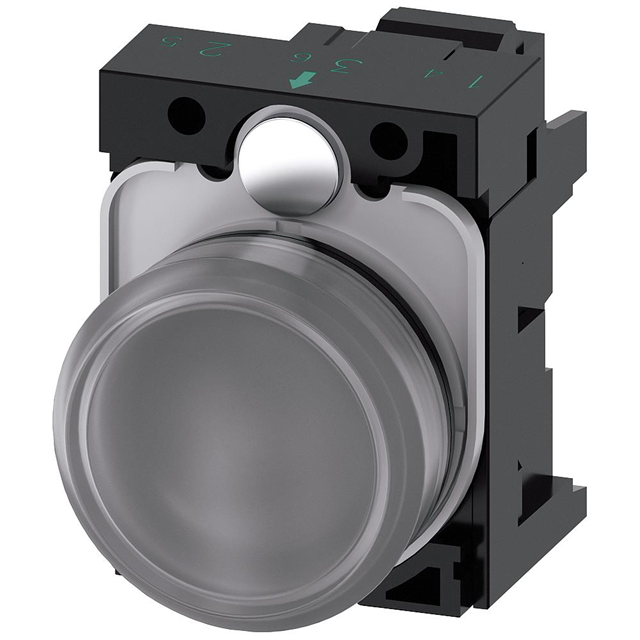

Siemens A6X30143006			30 mm	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round with Flat Top	Clear	110 V	AC	Clear	Round	LED	22.3 mm	0.88 in	Colorless

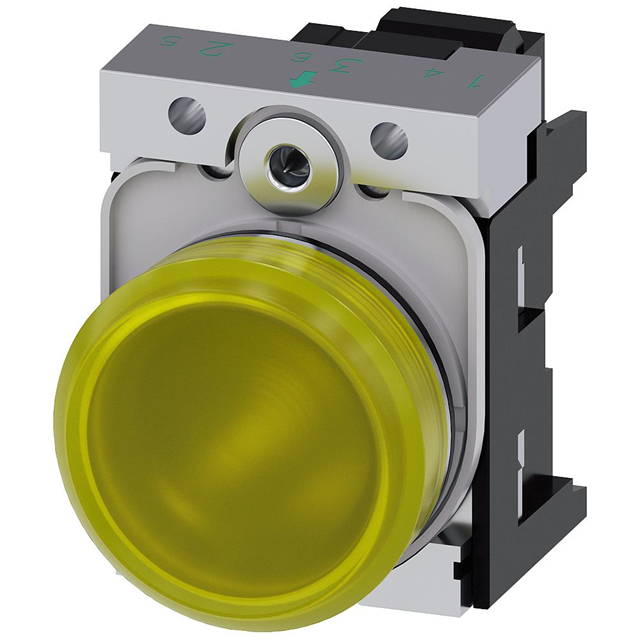

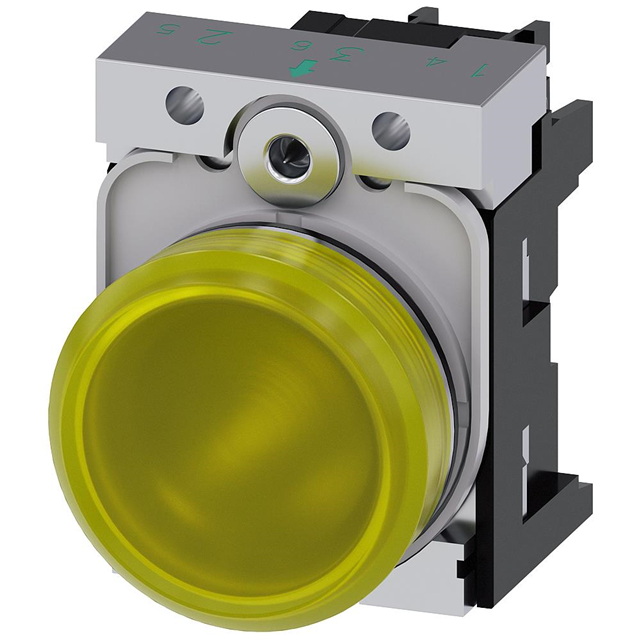

Siemens A6X30143757	900 mcd	1400 mcd	22 mm	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round with Flat Top	Diffused	230 V	AC	Yellow	Round	LED	22.3 mm	0.88 in	Yellow	Screw Terminal
Siemens A6X30143548	450 mcd	1120 mcd	22 mm	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round with Flat Top	Diffused	110 V	AC	Yellow	Round	LED	22.3 mm	0.88 in	Yellow	Spring Terminal
Siemens A6X30143551	450 mcd	1120 mcd	22 mm	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round with Flat Top	Diffused	110 V	AC	Yellow	Round	LED	22.3 mm	0.88 in	Yellow	Spring Terminal
Siemens A6X30143759	900 mcd	1400 mcd	22 mm	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round with Flat Top	Diffused	230 V	AC	Yellow	Round	LED	22.3 mm	0.88 in	Yellow	Screw Terminal

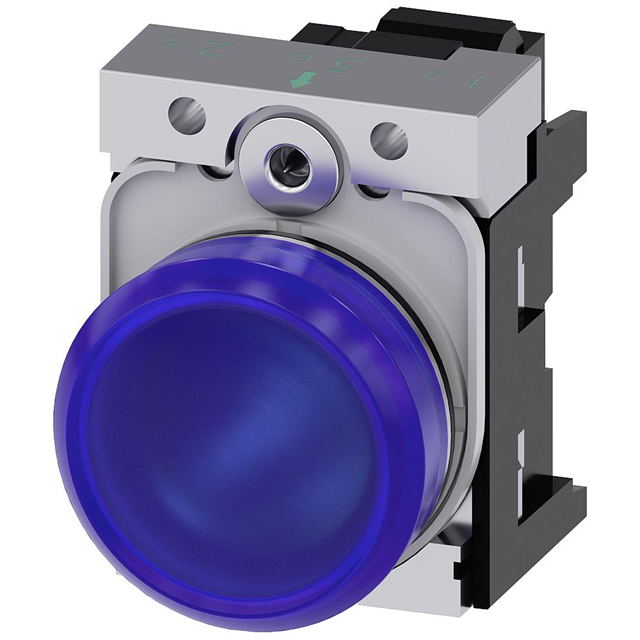

Siemens A6X30143577	450 mcd	1120 mcd	22 mm	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round with Flat Top	Diffused	110 V	AC	Blue	Round	LED	22.3 mm	0.88 in	Blue	Spring Terminal
Siemens A6X30143798			30 mm	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round with Flat Top	Diffused	230 V	AC	Blue	Round	LED	22.3 mm	0.88 in	Blue
