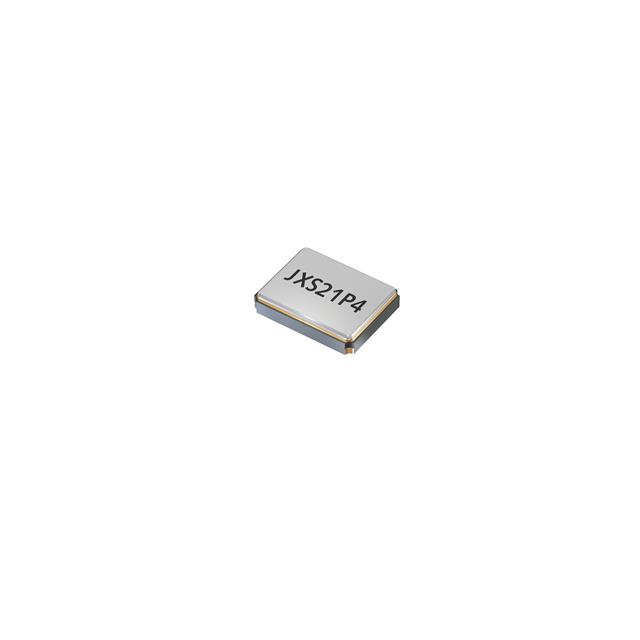

JXS21P4 Series

Catalog

CRYSTAL 32MHZ 12PF SMD

Part	Frequency Stability	Package / Case	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Load Capacitance	Ratings	Frequency Tolerance	Operating Mode	Type	Frequency	Mounting Type
Jauch Quartz Q 32,0-JXS21P4-12-20/20-T1-FU-AEC-LF	20 ppm	4-SMD No Lead	50 Ohms	85 °C	-40 C	1.6 mm	0.079 in	0.063 "	2 mm	0.6 mm	0.024 in	12 pF	AEC-Q200	20 ppm	Fundamental	MHz Crystal	32 MHz	Surface Mount
Jauch Quartz Q 48,0-JXS21P4-12-20/20-T1-FU-AEC-LF	20 ppm	4-SMD No Lead	50 Ohms	85 °C	-40 C	1.6 mm	0.079 in	0.063 "	2 mm	0.6 mm	0.024 in	12 pF	AEC-Q200	20 ppm	Fundamental	MHz Crystal	48 MHz	Surface Mount
Jauch Quartz Q 16,0-JXS21P4-12-20/20-T1-AEC-LF	20 ppm	4-SMD No Lead		85 °C	-40 C	1.6 mm	0.079 in	0.063 "	2 mm	0.6 mm	0.024 in	12 pF	AEC-Q200	20 ppm	Fundamental	MHz Crystal	16 MHz	Surface Mount
Jauch Quartz Q 25,0-JXS21P4-12-20/20-T1-FU-AEC-LF	20 ppm	4-SMD No Lead	80 Ohm	85 °C	-40 C	1.6 mm	0.079 in	0.063 "	2 mm	0.6 mm	0.024 in	12 pF	AEC-Q200	20 ppm	Fundamental	MHz Crystal	25 MHz	Surface Mount
Jauch Quartz Q 26,0-JXS21P4-12-20/20-T1-FU-AEC-LF	20 ppm	4-SMD No Lead	80 Ohm	85 °C	-40 C	1.6 mm	0.079 in	0.063 "	2 mm	0.6 mm	0.024 in	12 pF	AEC-Q200	20 ppm	Fundamental	MHz Crystal	26 MHz	Surface Mount
Jauch Quartz Q 24,0-JXS21P4-12-20/20-T1-FU-AEC-LF	20 ppm	4-SMD No Lead	80 Ohm	85 °C	-40 C	1.6 mm	0.079 in	0.063 "	2 mm	0.6 mm	0.024 in	12 pF	AEC-Q200	20 ppm	Fundamental	MHz Crystal	24 MHz	Surface Mount
Jauch Quartz Q 25,0-JXS21P4-8-20/20-T1-FU-AEC-LF	20 ppm	4-SMD No Lead	80 Ohm	85 °C	-40 C	1.6 mm	0.079 in	0.063 "	2 mm	0.6 mm	0.024 in	8 pF	AEC-Q200	20 ppm	Fundamental	MHz Crystal	25 MHz	Surface Mount
Jauch Quartz Q 26,0-JXS21P4-8-20/20-T1-FU-AEC-LF	20 ppm	4-SMD No Lead	80 Ohm	85 °C	-40 C	1.6 mm	0.079 in	0.063 "	2 mm	0.6 mm	0.024 in	8 pF	AEC-Q200	20 ppm	Fundamental	MHz Crystal	26 MHz	Surface Mount
Jauch Quartz Q 30,0-JXS21P4-12-20/20-T1-FU-AEC-LF	20 ppm	4-SMD No Lead	50 Ohms	85 °C	-40 C	1.6 mm	0.079 in	0.063 "	2 mm	0.6 mm	0.024 in	12 pF	AEC-Q200	20 ppm	Fundamental	MHz Crystal	30 MHz	Surface Mount
Jauch Quartz Q 24,0-JXS21P4-8-20/20-T1-FU-AEC-LF	20 ppm	4-SMD No Lead	80 Ohm	85 °C	-40 C	1.6 mm	0.079 in	0.063 "	2 mm	0.6 mm	0.024 in	8 pF	AEC-Q200	20 ppm	Fundamental	MHz Crystal	24 MHz	Surface Mount
