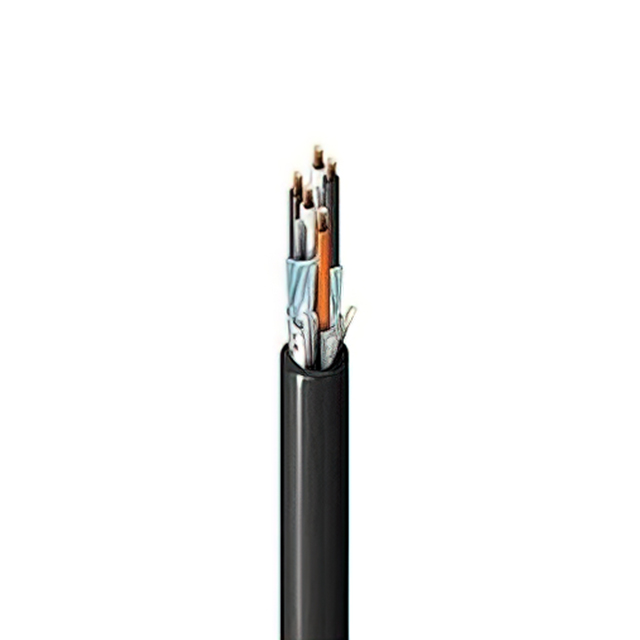

1076A Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 9COND 20/22AWG
| Part | Shield Coverage | Shield Material | Features | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [x] | Jacket (Insulation) Material | Wire Gauge | Conductor Material | Conductor Insulation | Length | Length [x] | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Drain Wire Rip Cord | UL Style 2464 | -30 ░C | 105 ░C | Black | Multi-Pair | 0.444 in | 11.28 mm | 28 30 | 7 | Poly-Vinyl Chloride (PVC) | 20 22 | Copper Bare | Poly-Vinyl Chloride (PVC) | 2286 m | 7500 ft | 9 | 0.053 " | 1.346 mm | Foil |
