0496150.Z Series

Fuse - CablePro 150A 304.8mm x 609.6mm

Catalog

Fuse - CablePro 150A 304.8mm x 609.6mm

Part	DC Cold Resistance	Voltage Rating - DC	Approval Agency	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Mounting Type	Fuse Type	Package / Case	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
LITTELFUSE 0496150.Z	0.346 mOhms	32 V	UL	Automotive	125 °C	-40 C	2 kA	150 A	Free Hanging (In-Line)	Fuse Link	In-Line	0.661 in	16.8 mm	0.729 in	60.8 mm	2.394 in	18.3 mm

Catalog

Fuse - CablePro 150A 304.8mm x 609.6mm

Description

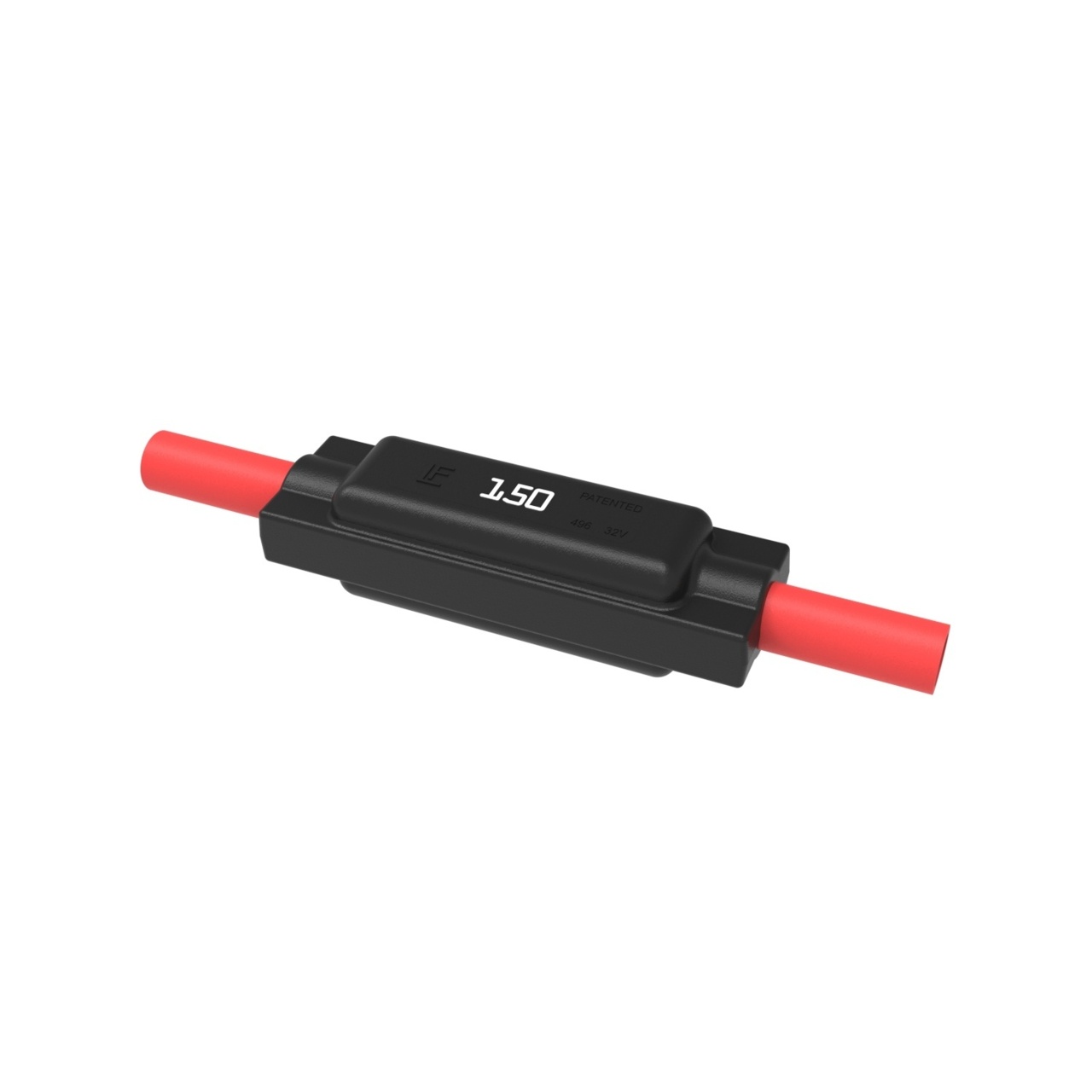

This 150 A CablePro® automotive inline fuse comes attached to 19 mm2 (4 AWG) FL2G cables or to 19 mm2 (4 AWG) thin-walled irradiated XLPE cables. Both types of cables are rated at 32 V. Similar to a MEGA® 32V fuse, it employs Slo-Blo® technology to deliver time-delayed protection against short circuits. Since CablePro inline fuses are not sealed, apply a shrink tube to this fuse before installing it.
